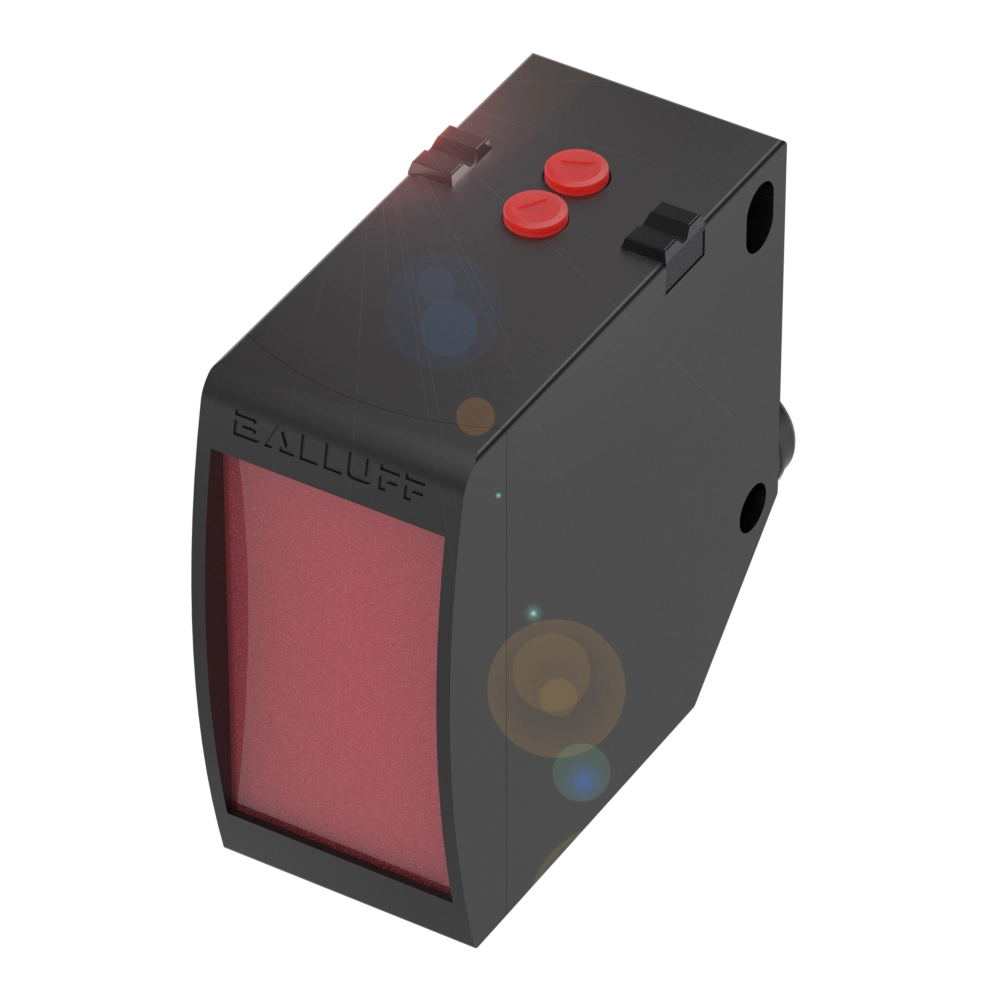

Distance sensors with plastic housing and red light laser for washdown
Special characteristics
Washdown
Series
23K

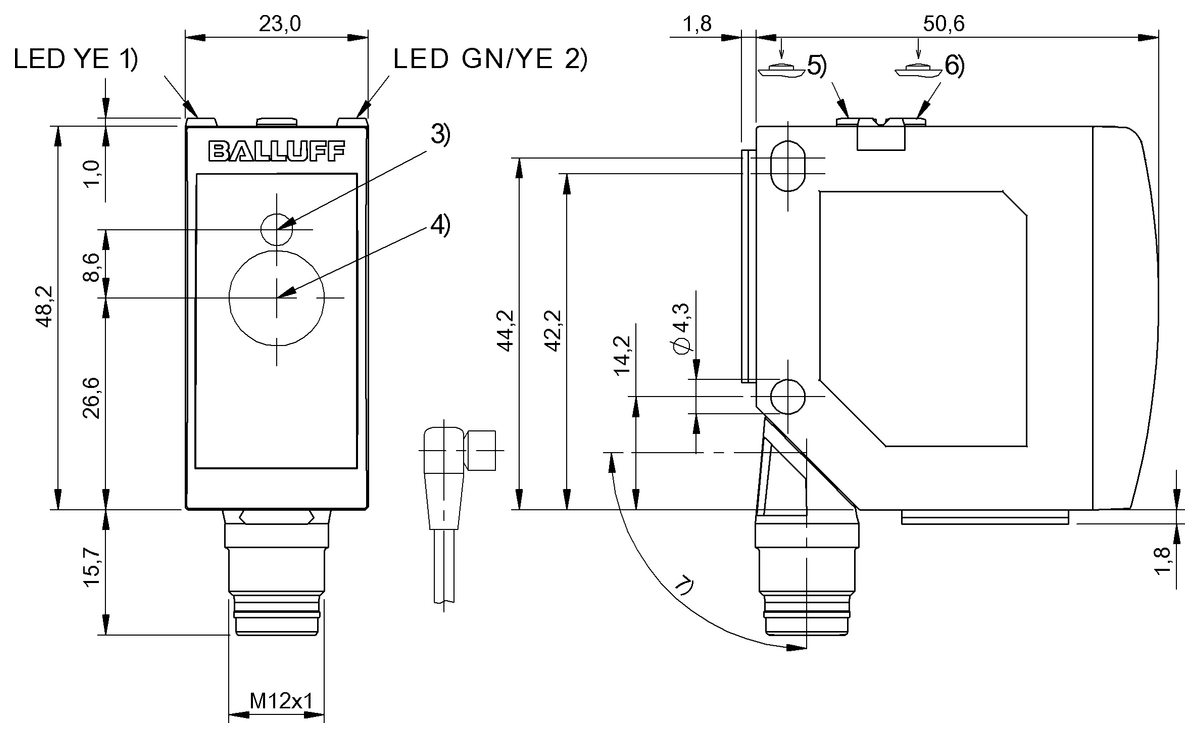

Dimension
51 x 23 x 52.4 mm
Interface
Analog, current 4…20 mA linear rising/falling PNP/NPN/Auto-Detect NO/NC
Principle of operation
Photoelectric distance sensor
Do you have any questions about the product?
Alternative products
|
Available
|
Alternative
|
|
|
|
|
|
BOD001PBOD 23K-LB01-S923,223.80 CNY |
BOD001NBOD 23K-LA01-S923,223.80 CNY |
|
| Special characteristics | Washdown | Washdown |
|---|---|---|
| Series | 23K | 23K |
| Dimension | 51 x 23 x 52.4 mm | 51 x 23 x 52.4 mm |
| Interface | Analog, current 4…20 mA linear rising/falling PNP/NPN/Auto-Detect NO/NC | Analog, voltage 0…10 V linear rising/falling PNP/NPN/Auto-Detect NO/NC |
| Principle of operation | Photoelectric distance sensor | Photoelectric distance sensor |
| Principle of optical operation | Light time-of-flight | Light time-of-flight |
| Beam characteristic | Collimated | Collimated |
| Light type | Laser red light | Laser red light |
| Light spot size | 5.5 x 7 mm at 5 m | 5.5 x 7 mm at 5 m |
| Range | 100...5000 mm | 100...5000 mm |
| Accuracy | ±0.6 % FS | ±0.6 % FS |
| Repeat accuracy | 0.024 %FS | 0.024 %FS |
| Resolution | ≤ 5.0 mm | ≤ 5.0 mm |
| Connection | Connector, M12x1-Male, 5-pin | Connector, M12x1-Male, 5-pin |
| Housing material | ABS | ABS |
| Operating voltage Ub | 18...30 VDC | 18...30 VDC |
| Approval/Conformity |
CE cULus Ecolab WEEE |
CE cULus Ecolab WEEE |
