BOD001E

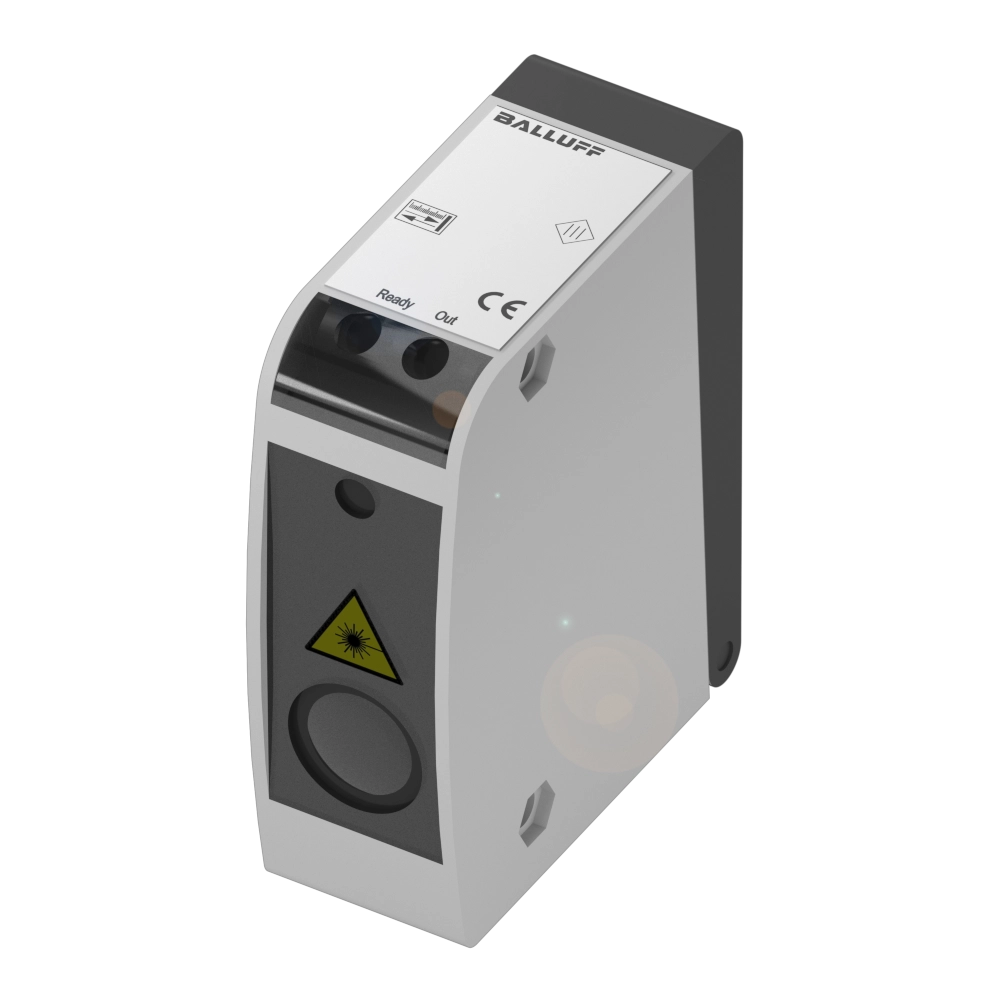

BOD 66M-LA14-S92

Distance sensors with metal housing and different types of light

Series
66M

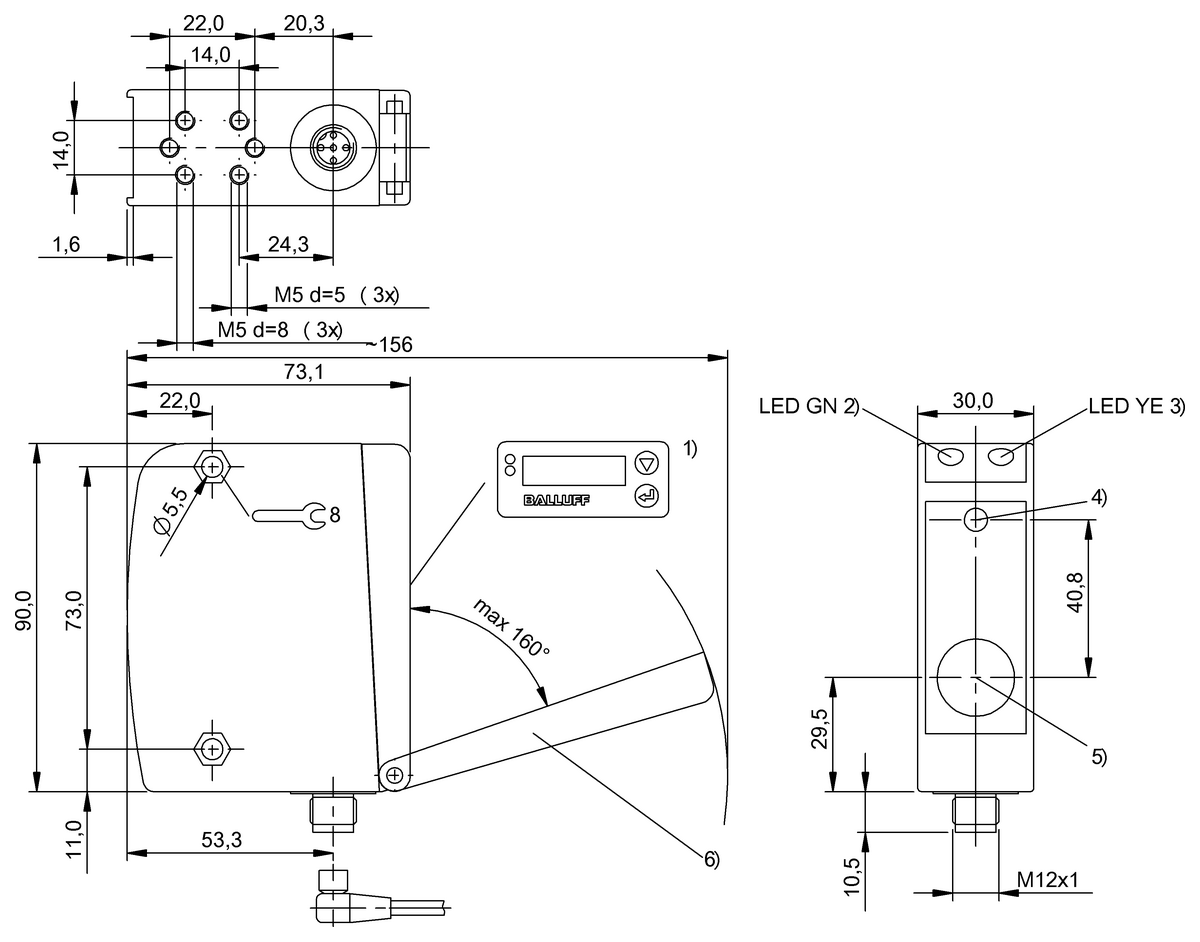

Dimension
30 x 100.5 x 73.2 mm
Interface
Analog, voltage 1…10 V linear rising/falling PNP/NPN NO/NC
Principle of operation
Photoelectric distance sensor
Principle of optical operation
Triangulation
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

Quantity scale

Contact request
Key features
Series
66M
Dimension
30 x 100.5 x 73.2 mm
Interface
Analog, voltage 1…10 V linear rising/falling PNP/NPN NO/NC
Principle of operation
Photoelectric distance sensor
Principle of optical operation
Triangulation
Beam characteristic
Divergent
Light type
Laser red light
Light spot size
2 x 6 mm at 2 m
Range
150...2000 mm
Accuracy
±1.5 % FS
Repeat accuracy
0.5 %FS
Resolution
1...3 mm
Connection
Connector, M12x1-Male, 5-pin
Housing material
Zinc, Die casting, Painted
Operating voltage Ub
18...30 VDC
Approval/Conformity
CE
WEEE
Classifications
ECLASS 10.1
27-27-08-01
ECLASS 11.0
27-27-08-01
ECLASS 12.0
27-27-09-16
ECLASS 13.0
27-27-09-16
ECLASS 14.0
27-27-09-16
ECLASS 5.1.4
27-27-08-01
ECLASS 6.2
27-27-08-01
ECLASS 8.1
27-27-08-01
ECLASS 9.0
27-27-08-01
ECLASS 9.1
27-27-08-01
ETIM 4.0
EC001825
ETIM 5.0
EC001825
ETIM 6.0
EC001825
ETIM 7.0
EC001825
ETIM 8.0
EC001825
UNSPSC 11
39121528
UNSPSC 7.0901
39121528
