BOD000E

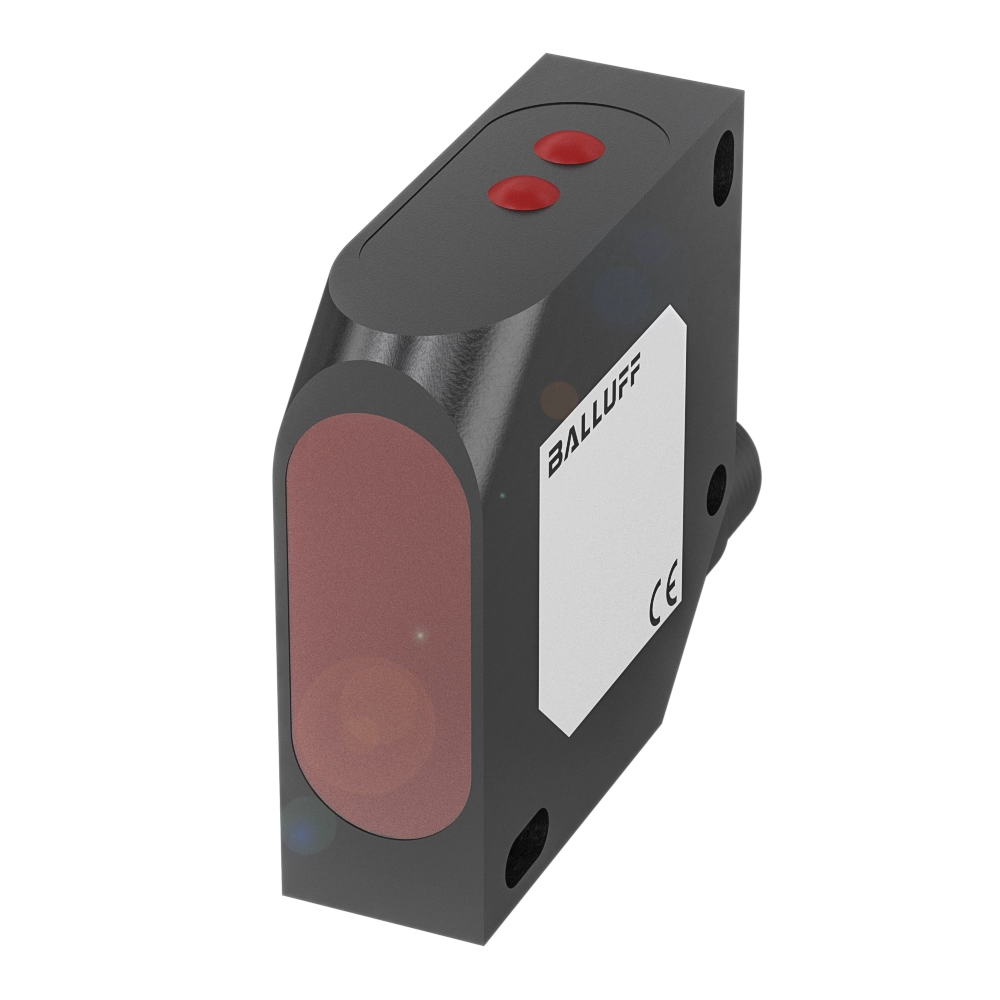

BOD 26K-LBR05-S115-C

Distance sensors with plastic housing and red light laser and PMMA as material for the sensing surface

Series
26K

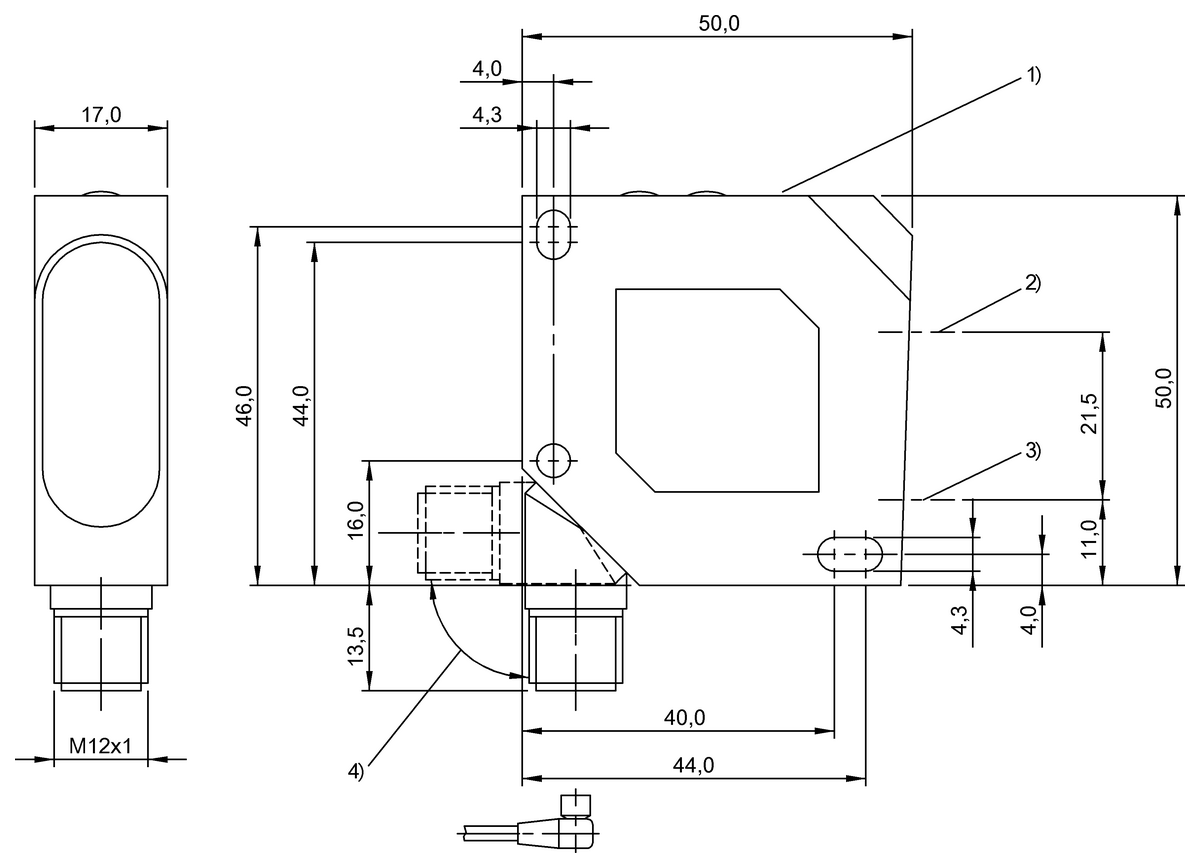

Dimension
17 x 50 x 50 mm
Interface
RS485
Analog, current 4…20 mA
linear rising/falling
2x PNP NO/NC
Principle of operation
Photoelectric distance sensor
Principle of optical operation
Triangulation
Do you have any questions about the product? Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

Quantity scale

Contact request
Key features
Series
26K
Dimension
17 x 50 x 50 mm
Interface
RS485
Analog, current 4…20 mA
linear rising/falling
2x PNP NO/NC
Principle of operation
Photoelectric distance sensor
Principle of optical operation
Triangulation
Beam characteristic
Divergent
Light type
Laser red light
Light spot size
2 x 4.5 mm at 300 mm
Range
80...300 mm, adjustable
Accuracy
±0.25 % FS
Repeat accuracy
0.25 %FS
Resolution
0.1 %FS
Connection
Connector, M12x1-Male, 8-pin
Housing material
ABS
Operating voltage Ub
18...30 VDC
Approval/Conformity
CE
cULus
WEEE
Classifications
ECLASS 10.1
27-27-08-01
ECLASS 11.0
27-27-08-01
ECLASS 12.0
27-27-09-16
ECLASS 13.0
27-27-09-16
ECLASS 14.0
27-27-09-16
ECLASS 5.1.4
27-27-08-01
ECLASS 6.2
27-27-08-01
ECLASS 8.1
27-27-08-01
ECLASS 9.0
27-27-08-01
ECLASS 9.1
27-27-08-01
ETIM 4.0
EC001825
ETIM 5.0
EC001825
ETIM 6.0
EC001825
ETIM 7.0
EC001825
ETIM 8.0
EC001825
ETIM 9.0
EC001825
UNSPSC 11
39121528
UNSPSC 7.0901
39121528
