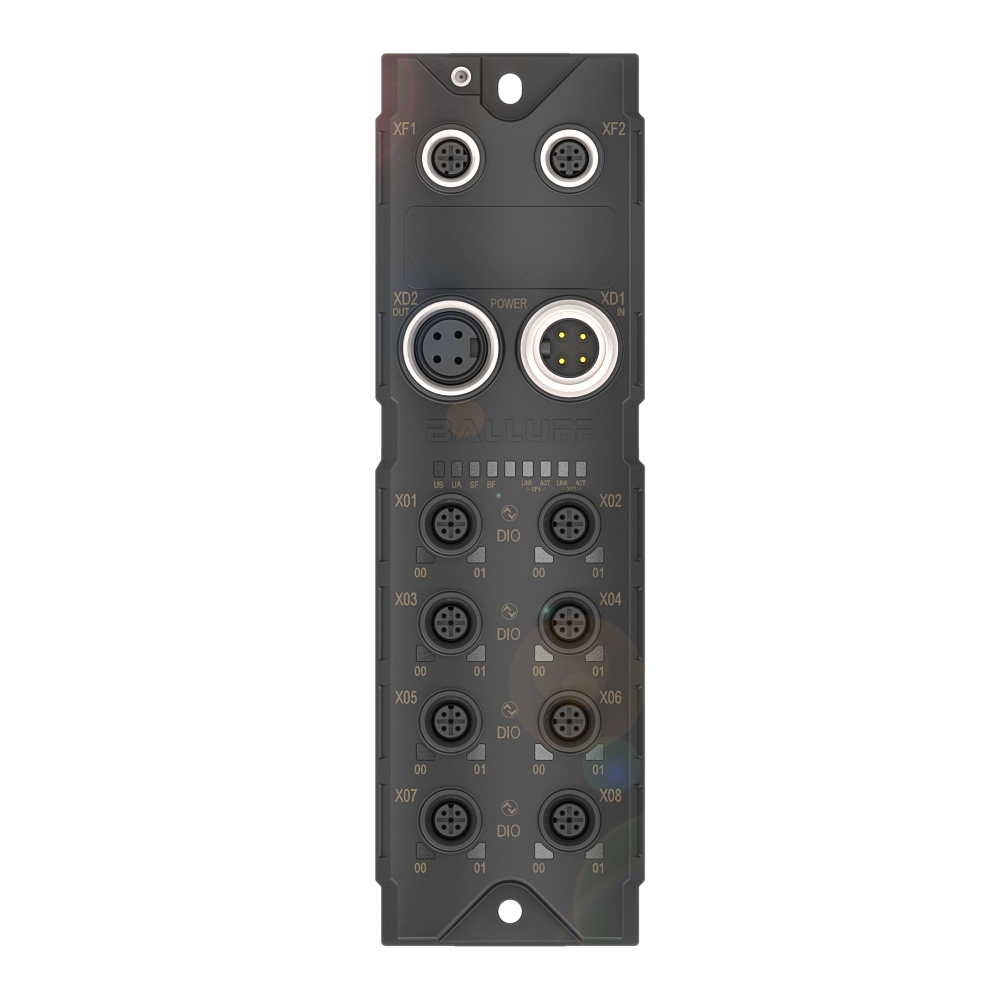

Similar Illustration
Only CAD model download is supported
Black Line - Network Modules in Robust Plastic Housing for Versatile Applications
Interface
Profinet I/O
Fast Start-Up (FSU)
yes
Operating voltage Ub
18...30.2 VDC
Display
no
Connection (COM 1)
M12x1-Female, 4-pin, D-coded
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Alternative
|
|
|
|
|
|
| BNI PG3-508-0C5-R015 | BNI PG3-508-0C5-Z015 | |
|
6,161.70 CNY
List price
|
6,161.70 CNY
List price
|
|
| Interface | Profinet I/O | - |
|---|---|---|
| Fast Start-Up (FSU) | yes | yes |
| Operating voltage Ub | 18...30.2 VDC | 18...30.2 VDC |
| Display | no | no |
| Connection (COM 1) | M12x1-Female, 4-pin, D-coded | M12x1-Female, 4-pin, D-coded |
| Connection (COM 2) | M12x1-Female, 4-pin, D-coded | M12x1-Female, 4-pin, D-coded |
| Connection (supply voltage IN) | 7/8"-Male, 5-pin | 7/8"-Male, 5-pin |
| Connection (supply voltage OUT) | 7/8"-Female, 5-pin | 7/8"-Female, 5-pin |
| Connection slots | 8x M12x1-Female, 5-pin, A-coded | 8x M12x1-Female, 5-pin, A-coded |
| Digital inputs | 16x PNP, Type 3 | 16x PNP, Type 3 |
| Digital outputs | 16x PNP | 16x PNP |
| Configurable inputs/outputs | yes | yes |
| Interface IIoT | REST API, MQTT parsed | REST API, MQTT parsed |
| Output current max. | 2 A short-circuit proof and overload-proof | - |
| Current sum US, sensor | 9.0 A | 9.0 A |
| Current sum UA, actuator | 9.0 A | 9.0 A |
| Housing material | Plastic | Die-cast zinc, nickel-plated |
| Dimension | 68 x 42.9 x 226 mm | 68 x 37.9 x 224 mm |
| Ambient temperature | -25...70 °C | -25...70 °C |
| IP rating | IP67 | IP67 |
| Auxiliary interfaces | 8x IO-Link | 8x IO-Link |
| IO-Link version | 1.1.3 | 1.1.3 |
| Port-class | Type A | Type A |
