IO-Link sensor/actuator hubs for specialized applications (Silver Line)
Performance Level
to d
Safety category (EN ISO 13849-1)
3
SIL (IEC 61508)
2
SIL CL (EN 62061)
2
Response time max.
6 ms
Do you have any questions about the product?
Alternative products
|
|
Alternative
|
|
|
|
|
|
BNI00JFBNI IOL-355-S02-Z0713,276.68 CNY |
BNI00CLBNI IOL-355-S02-Z0133,276.68 CNY |
|
| Performance Level | to d | to d |
|---|---|---|
| Safety category (EN ISO 13849-1) | 3 | 3 |
| SIL (IEC 61508) | 2 | 2 |
| SIL CL (EN 62061) | 2 | 2 |
| Response time max. | 6 ms | 6 ms |
| Approval/Conformity |
CE UKCA Safety cULus WEEE |
CE UKCA Safety cULus WEEE |
| Current sum US, sensor | 1.2 A | 1.2 A |
| Current sum UA, actuator | 16 A | 9 A |
| Digital inputs | 8x PNP, Type 3 | 8x PNP, Type 3 |
| Digital outputs | 8x PNP | 8x PNP |
| Interface | IO-Link 1.1 | IO-Link 1.1 |
| Connection slots | 8x M12x1-Female, 5-pin, A-coded | 8x M12x1-Female, 5-pin, A-coded |

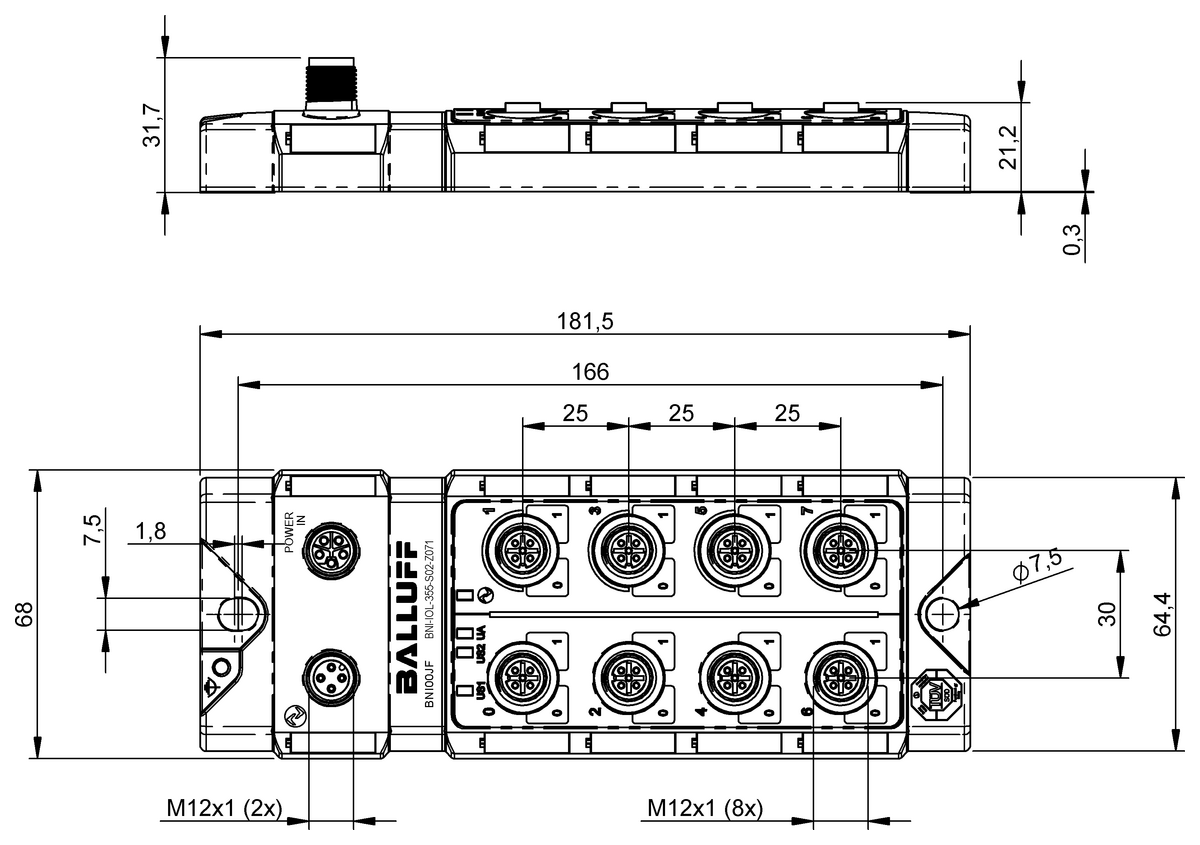

| Dimension | 68 x 31.7 x 181.5 mm | 68 x 32.4 x 181.5 mm |
| Ambient temperature | -5...55 °C | -5...55 °C |
| IP rating | IP67 | IP67 |
| Housing material | Zinc, Die casting, nickel-plated | Zinc, Die casting, nickel-plated |
