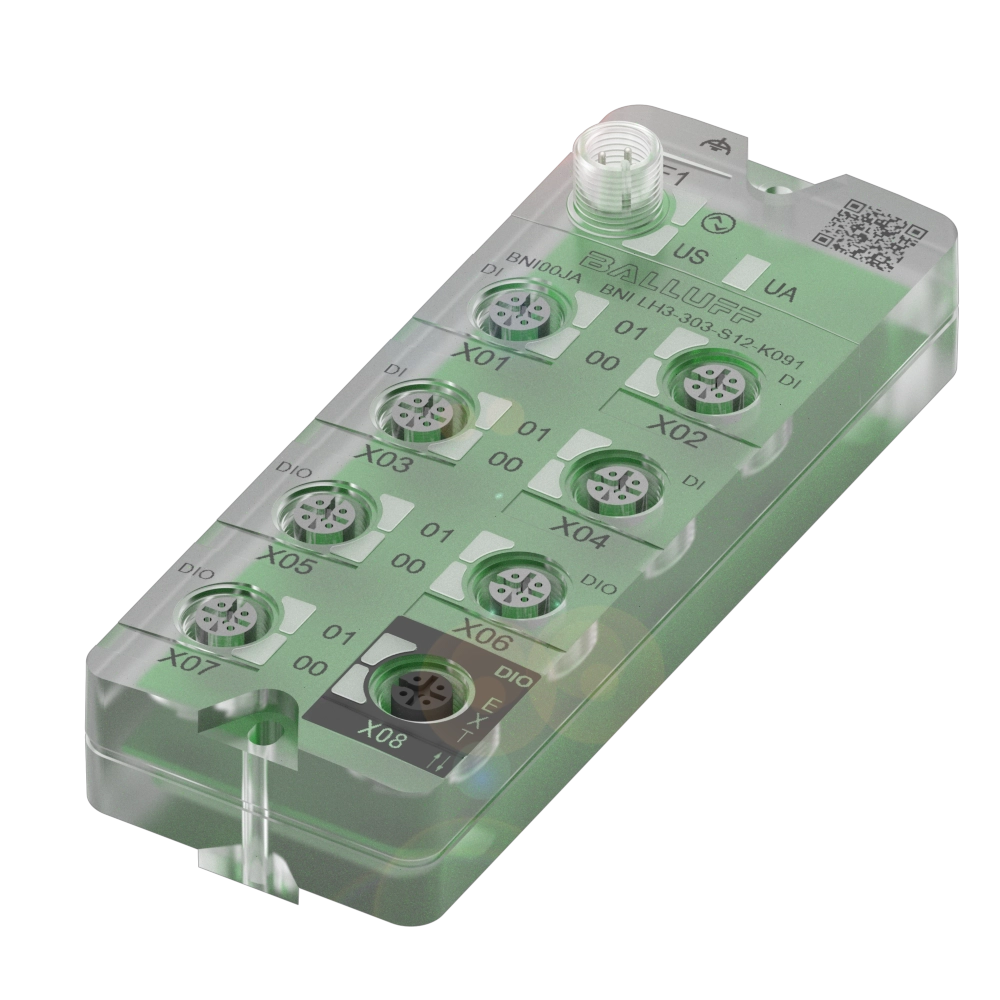

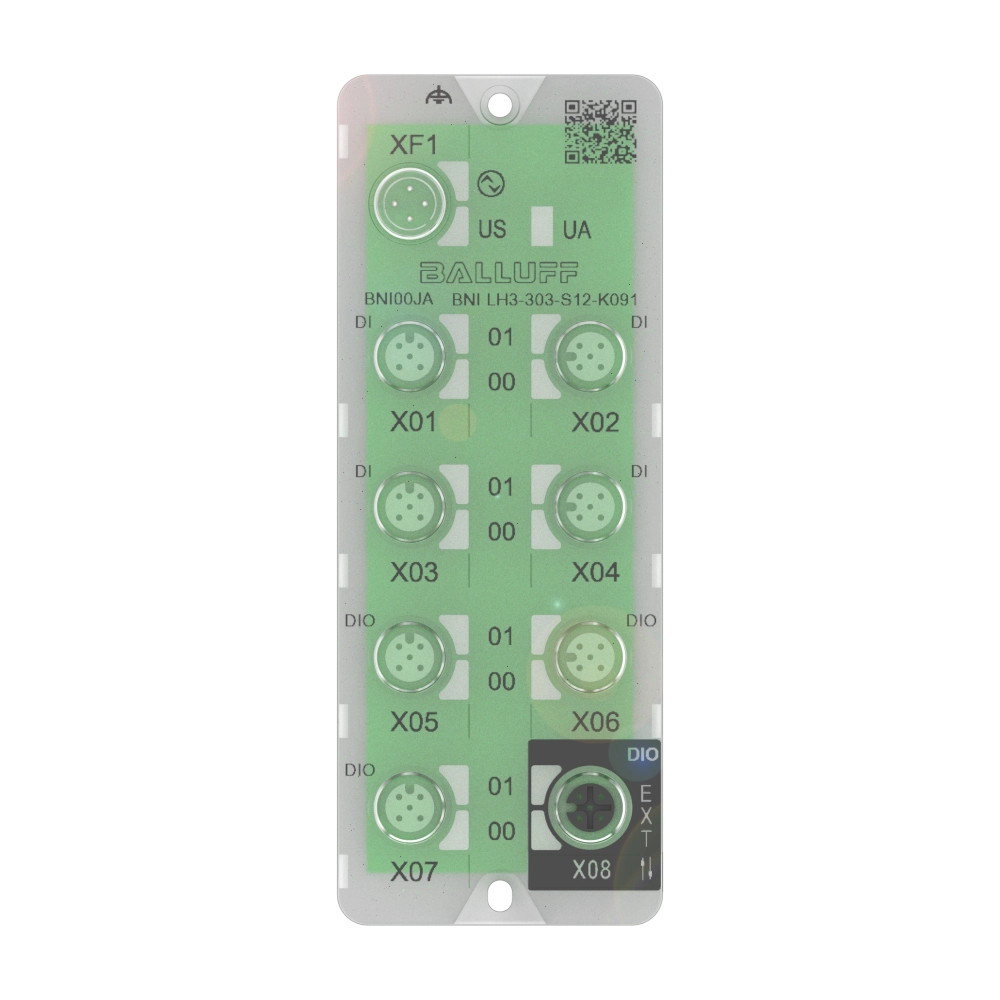

IO-Link sensor/actuator hubs
Interface
IO-Link 1.1
Operating voltage Ub
18...30.2 VDC
Connection (COM 1)
M12x1-Male, 4-pin, A-coded
Connection slots
8x M12x1-Female, 5-pin, A-coded
Digital inputs
16x PNP, Type 3
Do you have any questions about the product?
Alternative products
|
|
Alternative
|
|
|
|
|
|
BNI00JABNI LH3-303-S12-K0911,198.88 CNY |
BNI00J8BNI LH1-303-S11-K0911,069.50 CNY |
|
| Interface | IO-Link 1.1 | IO-Link 1.1 |
|---|---|---|
| Operating voltage Ub | 18...30.2 VDC | 18...30.2 VDC |
| Connection (COM 1) | M12x1-Male, 4-pin, A-coded | M12x1-Male, 4-pin, A-coded |
| Connection slots | 8x M12x1-Female, 5-pin, A-coded | 8x M12x1-Female, 5-pin, A-coded |
| Digital inputs | 16x PNP, Type 3 | 16x PNP, Type 3 |
| Digital outputs | 8x PNP | 8x PNP |
| Configurable inputs/outputs | yes | yes |
| Extension port | yes | no |
| Single-channel monitoring | yes | yes |
| Current sum US, sensor | 2 A | 2 A |
| Switching current | 8x 200 mA | 8x 200 mA |
| Current sum UA, actuator | 2 A | 2 A |
| Housing material | PC, Transparent | PC, Transparent |
| Dimension | 54 x 39.2 x 141.3 mm | 54 x 39.2 x 141.3 mm |
| Ambient temperature | -20...60 °C | -20...60 °C |
| IP rating | IP67, when threaded in | IP67, when threaded in |
| Transfer rate | COM3 (230.4 kBaud) | COM3 (230.4 kBaud) |
| Process data cycle min. | 2 ms | 2 ms |
| Process data IN | 6 bytes | 6 bytes |
| Process data OUT | 2 bytes | 2 bytes |
