Silver Line - Network Modules in Metal Housing for Specialized Applications
Interface
Ethernet/IP
Operating voltage Ub
18...30.2 VDC
Display
no
Connection (COM 1)
M12x1-Female, 4-pin, D-coded
Connection (COM 2)
M12x1-Female, 4-pin, D-coded
Put together your individual RFID system, tailored to your needs and areas of application.
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
| BNI EIP-508-005-Z015-013 | BNI EIP-508-105-Z015-C14 | BNI EIP-508-105-Z015 | |
|
6,278.16 CNY
List price
|
6,278.16 CNY
List price
|
6,278.16 CNY
List price
|
|
| Interface | Ethernet/IP | - | - |
|---|---|---|---|
| Operating voltage Ub | 18...30.2 VDC | 18...30.2 VDC | 18...30.2 VDC |
| Display | no | yes | yes |
| Connection (COM 1) | M12x1-Female, 4-pin, D-coded | M12x1-Female, 4-pin, D-coded | M12x1-Female, 4-pin, D-coded |
| Connection (COM 2) | M12x1-Female, 4-pin, D-coded | M12x1-Female, 4-pin, D-coded | M12x1-Female, 4-pin, D-coded |
| Connection (supply voltage IN) | 7/8"-Male, 4-pin | 7/8"-Male, 4-pin | 7/8"-Male, 4-pin |
| Connection (supply voltage OUT) | 7/8"-Female, 4-pin | 7/8"-Female, 4-pin | 7/8"-Female, 4-pin |
| Connection slots | 8x M12x1-Female, 5-pin, A-coded | 8x M12x1-Female, 5-pin, A-coded | 8x M12x1-Female, 5-pin, A-coded |
| Digital inputs | 16x PNP, Type 3 | 16x PNP, Type 3 | 16x PNP, Type 3 |
| Digital outputs | 16x PNP | 16x PNP | 16x PNP |
| Configurable inputs/outputs | yes | yes | yes |
| Interface IIoT | REST API, MQTT parsed | REST API, MQTT parsed | REST API, MQTT parsed |
| Output current max. | 2 A short-circuit proof and overload-proof | - | - |
| Current sum US, sensor | 9.0 A | 9.0 A | 9.0 A |
| Current sum UA, actuator | 9.0 A | 9.0 A | 9.0 A |
| Housing material | Die-cast zinc, nickel-plated | Die-cast zinc, nickel-plated | Zinc, Die casting |

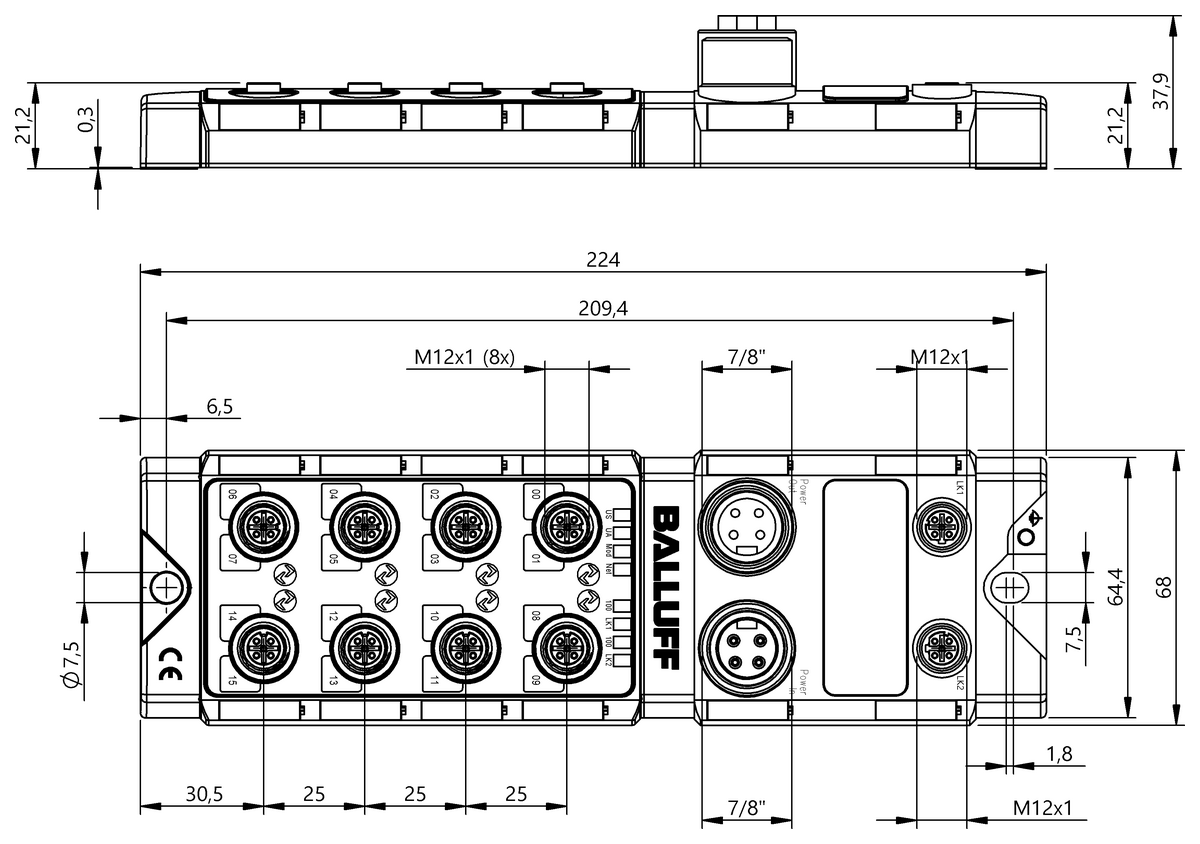

| Dimension | 68 x 37.9 x 224 mm | 68 x 37.9 x 224 mm | 68 x 37.9 x 224 mm |
| Ambient temperature | -25...70 °C | -5...70 °C | -5...70 °C |
| IP rating | IP67 | IP67 | IP67 |
| Auxiliary interfaces | 8x IO-Link | 8x IO-Link | 8x IO-Link |
| IO-Link version | 1.1.3 | 1.1.3 | 1.1.3 |
| Port-class | Type A | Type A | Type A |
| Interface | - | Ethernet/IP | Ethernet/IP |
| Output current max. | - | 2 A | 2 A |
| Base type deviation | - | HTTPS as default; IP address: 192.168.1.254 | - |
