Network modules for specialized applications (Silver Line)
Interface
Ethernet/IP
Interface IIoT
REST API
Auxiliary interfaces
8x IO-Link
Port-class
Type A
Output current max.
4 A
Put together your individual RFID system, tailored to your needs and areas of application.
Do you have any questions about the product?
Alternative products
|
|
Alternative
|
|
|
|
|
|
BNI00H7BNI EIP-508-105-Z0675,511.38 CNY |
BNI00HZBNI EIP-508-005-P0675,951.25 CNY |
|
| Interface | Ethernet/IP | Ethernet/IP |
|---|---|---|
| Interface IIoT | REST API | REST API |
| Auxiliary interfaces | 8x IO-Link | 8x IO-Link |
| Port-class | Type A | Type A |
| Output current max. | 4 A | 4 A |
| Display | yes | no |
| Operating voltage Ub | 18...30.2 VDC | 18...30.2 VDC |
| Connection (COM 1) | M12x1-Female, 4-pin, D-coded | M12x1-Female, 4-pin, D-coded |
| Connection (COM 2) | M12x1-Female, 4-pin, D-coded | M12x1-Female, 4-pin, D-coded |
| Connection (supply voltage IN) | M12x1-Male, 5-pin, L-coded | M12x1-Male, 5-pin, L-coded |
| Connection (supply voltage OUT) | M12x1-Female, 5-pin, L-coded | M12x1-Female, 5-pin, L-coded |
| Connection slots | 8x M12x1-Female, 5-pin, A-coded | 8x M12x1-Female, 5-pin, A-coded |
| Digital inputs | 16x PNP, Type 3 | 16x PNP, Type 3 |
| Digital outputs | 16x PNP | 16x PNP |
| Configurable inputs/outputs | yes | yes |
| Current sum US, sensor | 16 A | 16 A |
| Current sum UA, actuator | 16 A | 16 A |

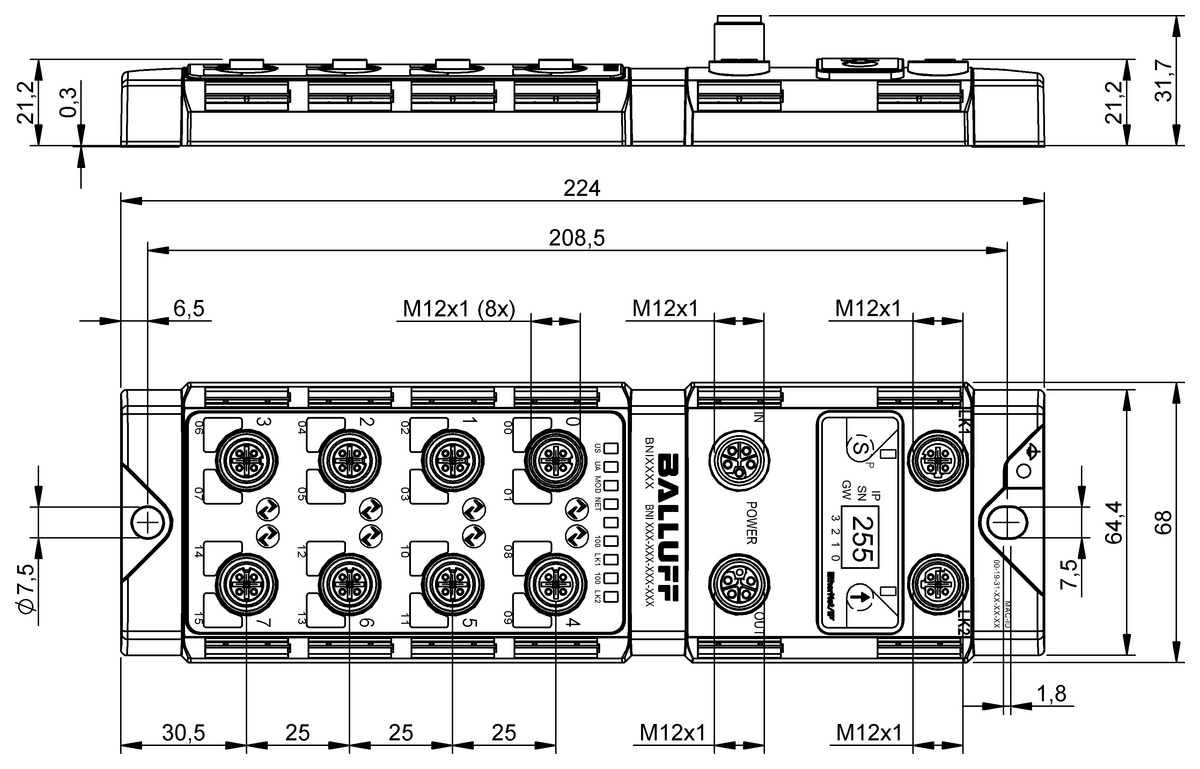

| Dimension | 68 x 31.7 x 224 mm | 68 x 36.8 x 226 mm |
| Ambient temperature | -5...70 °C | -25...70 °C |
| IP rating | IP67 |
IP68 IP69K |
| IO-Link version | 1.1 | 1.1 |
