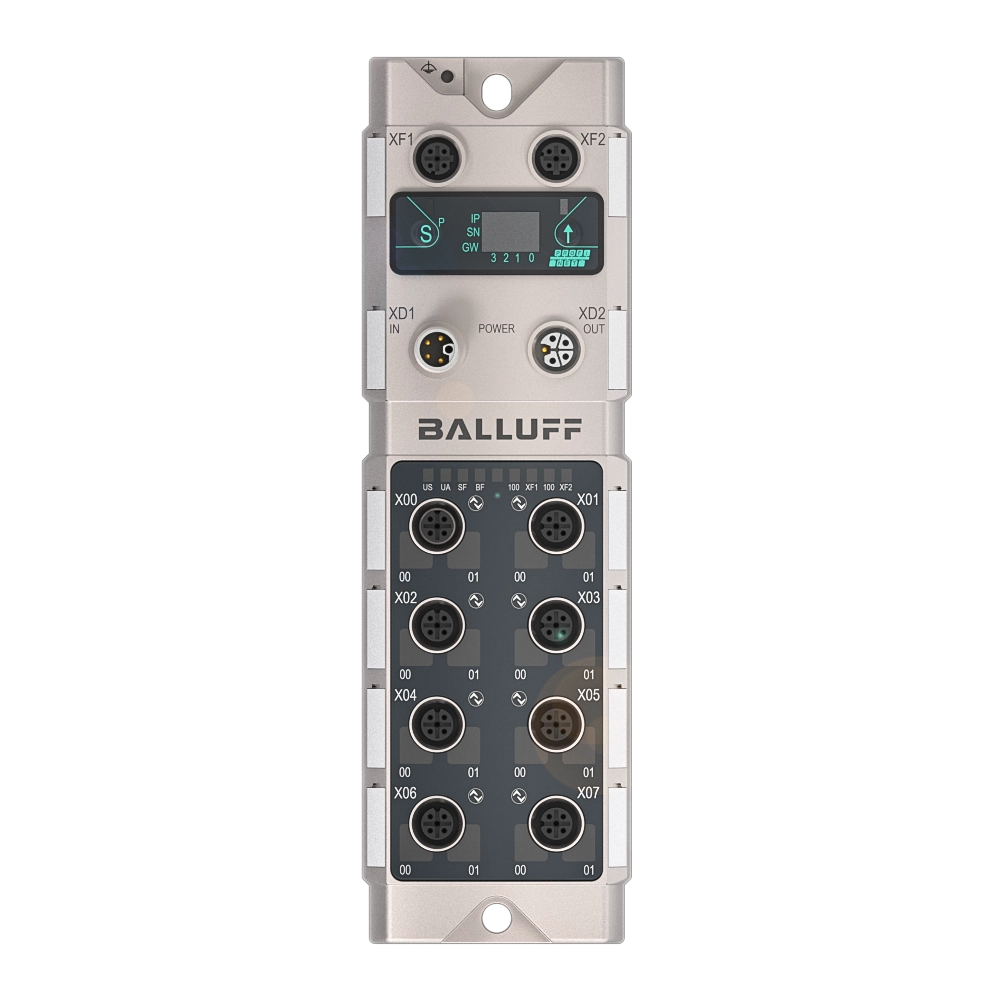

Silver Line - Network Modules in Metal Housing for Specialized Applications
Interface
Profinet
Interface IIoT
REST API
Auxiliary interfaces
8x IO-Link
Port-class
Type A
Output current max.
4 A
Put together your individual RFID system, tailored to your needs and areas of application.
Recommended successor products
BNI00K6
Network modules with multiprotocol
BNI XG5-508-1B5-Z067
Estimated availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Recommended alternative
|
Further alternative
|
|
|
|
|
|
|
| BNI PNT-508-105-Z067 | BNI XG5-508-1B5-Z067 | BNI PNT-508-055-P067 | |
|
5,511.38 CNY
List price
|
4,571.25 CNY
List price
|
6,210.00 CNY
List price
|
|
| Interface | Profinet | Profinet / EtherNet/IP / EtherCAT / Modbus TCP | Profinet |
|---|---|---|---|
| Interface IIoT | REST API | REST API, MQTT parsed | REST API |
| Auxiliary interfaces | 8x IO-Link | 8x IO-Link | 8x IO-Link |
| Port-class | Type A | Type A | Type A |
| Output current max. | 4 A | 4 A | 4 A |
| Fast Start-Up (FSU) | yes | - | yes |
| Operating voltage Ub | 18...30.2 VDC | 18...30 VDC | 18...30.2 VDC |
| Connection (COM 1) | M12x1-Female, 4-pin, D-coded | M12x1-Female, 4-pin, D-coded | M12x1-Female, 4-pin, D-coded |
| Connection (COM 2) | M12x1-Female, 4-pin, D-coded | M12x1-Female, 4-pin, D-coded | M12x1-Female, 4-pin, D-coded |
| Connection (supply voltage IN) | M12x1-Male, 5-pin, L-coded | M12x1-Male, 5-pin, L-coded | M12x1-Male, 5-pin, L-coded |
| Connection (supply voltage OUT) | M12x1-Female, 5-pin, L-coded | M12x1-Female, 5-pin, L-coded | M12x1-Female, 5-pin, L-coded |
| Connection slots | 8x M12x1-Female, 5-pin, A-coded | 8x M12x1-Female, 5-pin, A-coded | 8x M12x1-Female, 5-pin, A-coded |
| Digital inputs | 16x PNP, Type 3 | 16x PNP, Type 3 | 16x PNP, Type 3 |
| Digital outputs | 16x PNP | 16x PNP | 16x PNP |
| Configurable inputs/outputs | yes | yes | yes |
| Current sum US, sensor | 16 A | 16 A | 16 A |
| Current sum UA, actuator | 16 A | 16 A | 16 A |
| Housing material | Die-cast zinc, nickel-plated | Die-cast zinc, nickel-plated |
Plastic Stainless steel |

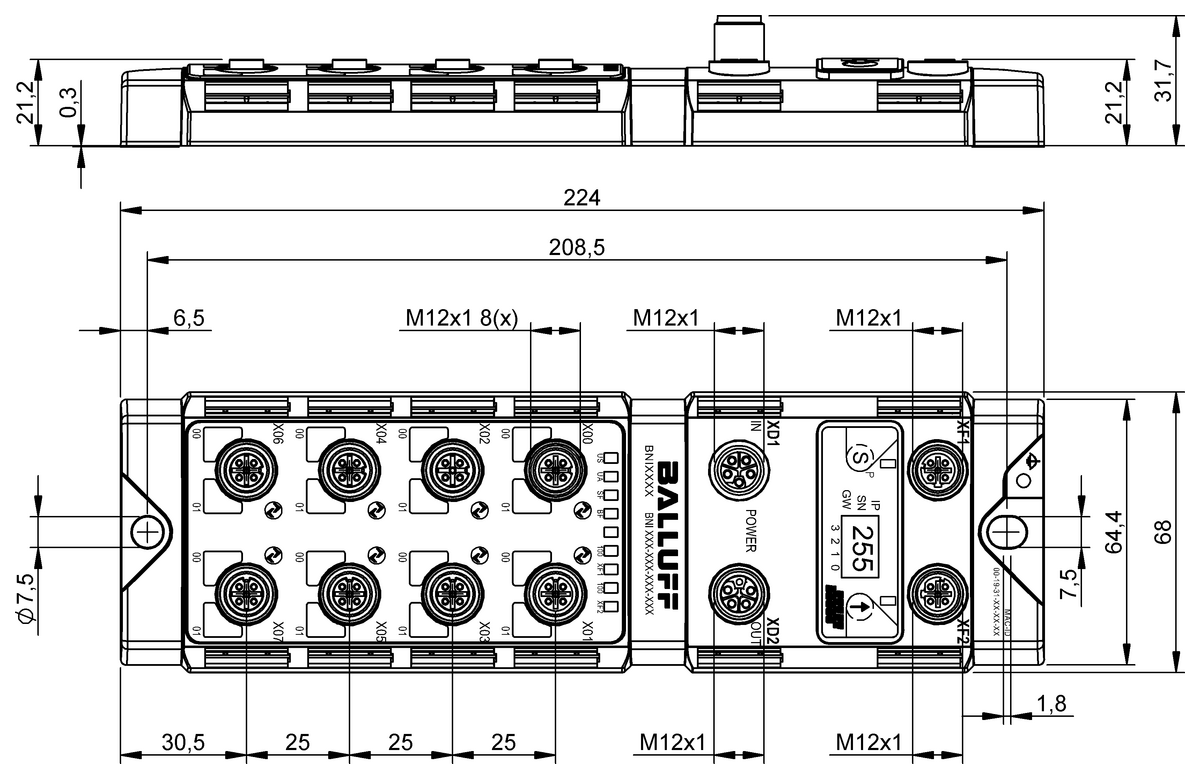

| Dimension | 68 x 31.7 x 224 mm | 68 x 32 x 224 mm | 68 x 36.8 x 226 mm |
| Ambient temperature | -5...70 °C | -5...70 °C | -25...70 °C |
| IP rating | IP67 | IP67 |
IP68 IP69K |
| IO-Link version | 1.1 | 1.1.3 | 1.1 |
| Safety Hub Support | yes | - | yes |
| Display | - | yes | - |
| Scope of delivery | - |
Grounding strap M4x6 screw |
- |
| Not incl. in scope of delivery | - |
Label plates Port cover |
- |
| Special characteristics | - | - |
Washdown Plus Washdown |
| Secondary features | - | - |
Operating Hours Counter Voltage and Current Monitoring Boot Cycle Counter |
| Secondary features for condition monitoring | - | - | Internal temperature monitoring |
