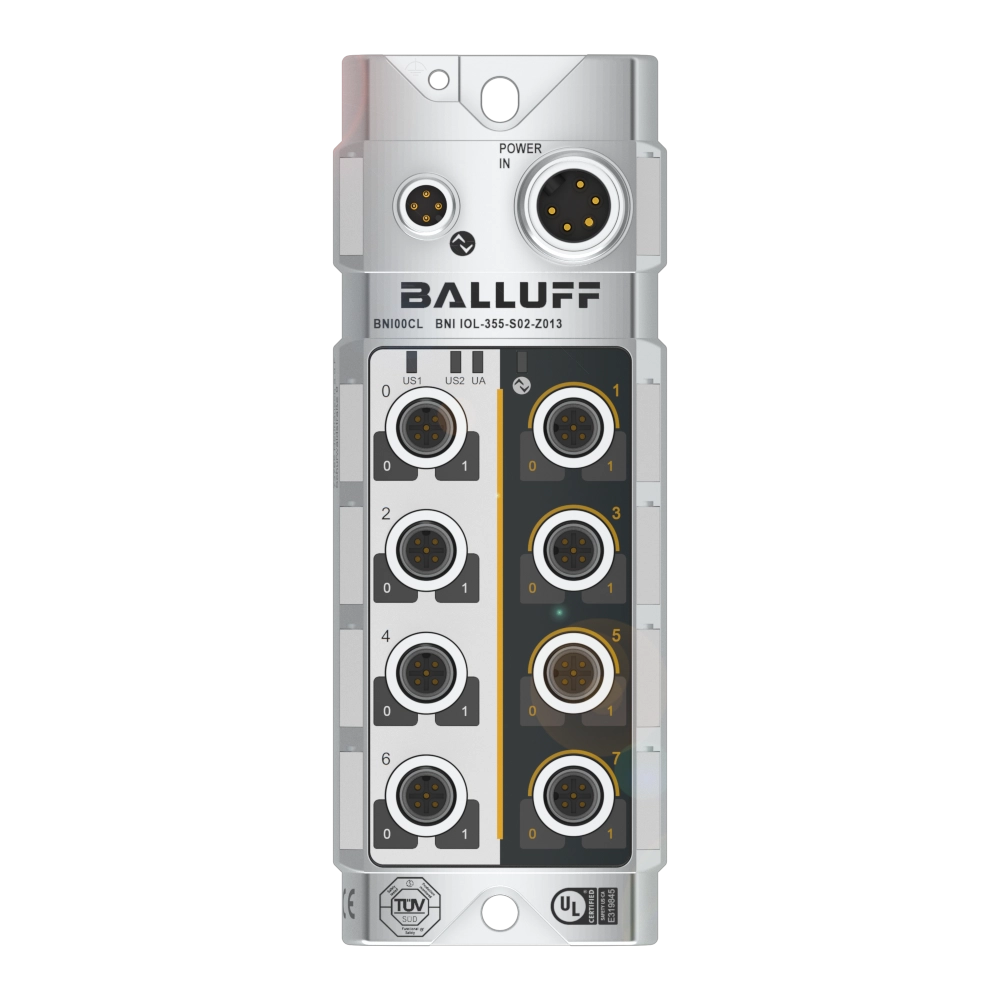

IO-Link sensor/actuator hubs for safety applications (Safe Line)
Interface
IO-Link 1.1
Operating voltage Ub
18...30.2 VDC
Connection (COM 1)
M12x1-Male, 4-pin, A-coded
Connection (supply voltage IN)
7/8"-Male, 5-pin
Connection slots
8x M12x1-Female, 5-pin, A-coded
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Alternative
|
|
|
|
|
|
|
BNI IOL-355-S02-Z013
3,276.68 CNY
List price
|
BNI IOL-355-S02-Z071
3,276.68 CNY
List price
|
|
| Interface | IO-Link 1.1 | IO-Link 1.1 |
|---|---|---|
| Operating voltage Ub | 18...30.2 VDC | - |
| Connection (COM 1) | M12x1-Male, 4-pin, A-coded | - |
| Connection (supply voltage IN) | 7/8"-Male, 5-pin | - |
| Connection slots | 8x M12x1-Female, 5-pin, A-coded | 8x M12x1-Female, 5-pin, A-coded |
| Digital inputs | 8x PNP, Type 3 | 8x PNP, Type 3 |
| Digital outputs | 8x PNP | 8x PNP |
| Configurable inputs/outputs | no | - |
| Single-channel monitoring | yes | - |
| Current sum US, sensor | 1.2 A | 1.2 A |
| Switching current | 8x 2 A | - |
| Current sum UA, actuator | 9 A | 16 A |
| Housing material | Zinc, Die casting, nickel-plated | Zinc, Die casting, nickel-plated |

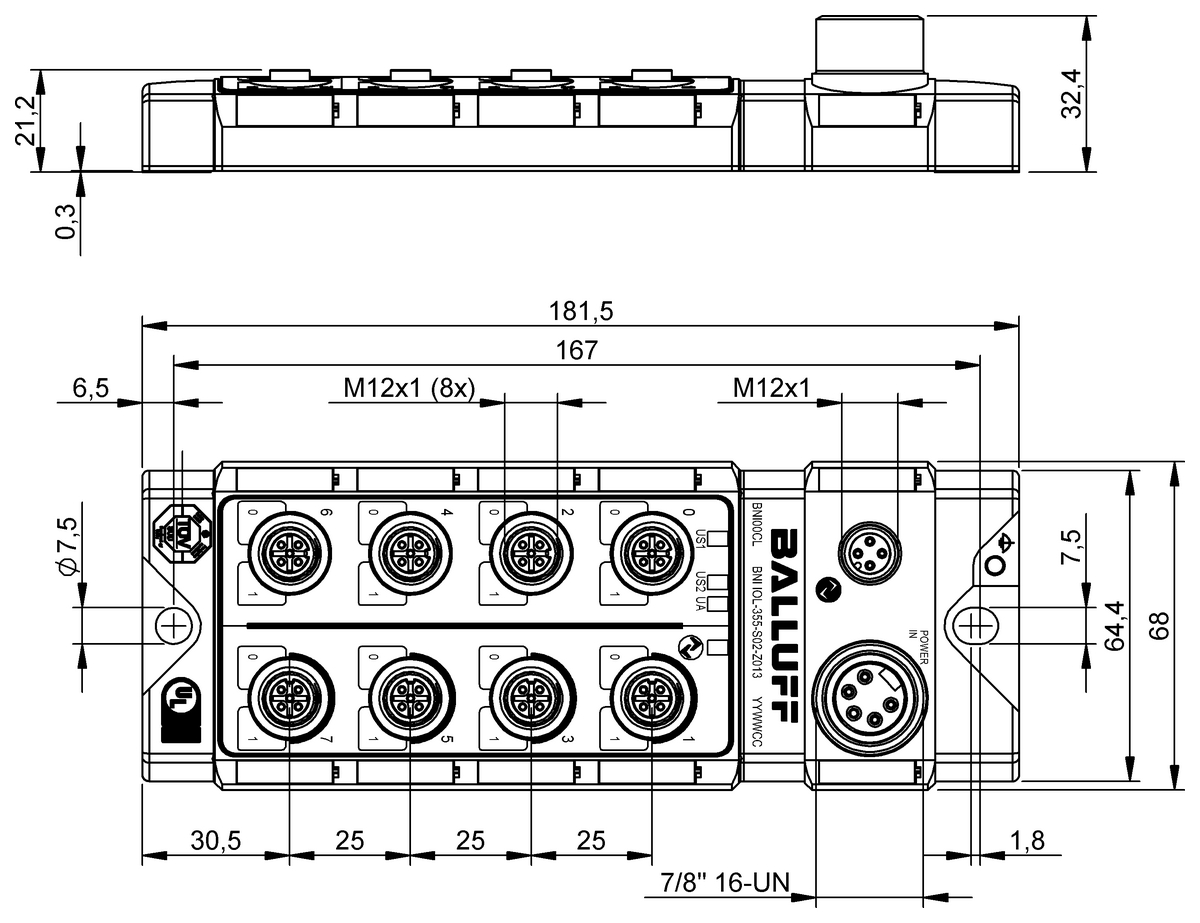

| Dimension | 68 x 32.4 x 181.5 mm | 68 x 31.7 x 181.5 mm |
| Ambient temperature | -5...55 °C | -5...55 °C |
| IP rating | IP67, when threaded in | - |
| Transfer rate | COM3 (230.4 kBaud) | - |
| Process data IN | 1 byte | - |
| Process data OUT | 3 bytes | - |
