Key features
Which attributed do you want to keep?
Version
RS232 converter
Interface
IO-Link 1.1
Operating voltage Ub
18...30.2 VDC
Digital inputs
2x PNP, Type 3
Configurable inputs/outputs
no
Connection
M12x1-Male, 4-pin, A-coded
Connection for sensor
M12x1-Female, 8-pin, A-coded
Housing material
1.4404 stainless steel
PTFE
PTFE

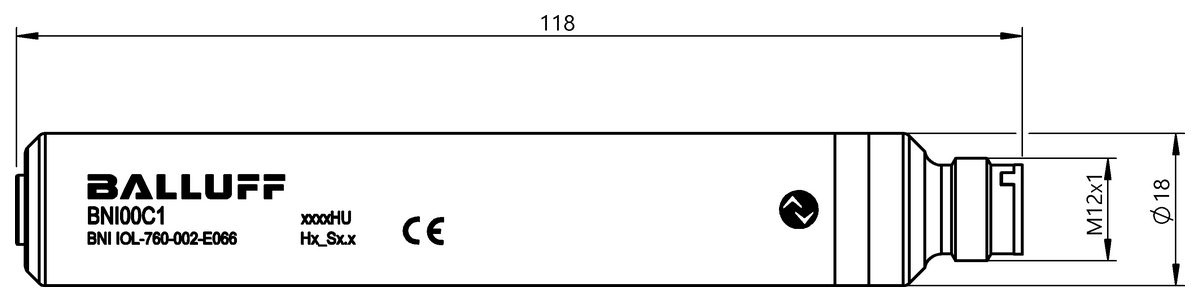

Dimension
Ø 18 x 118 mm
Ambient temperature
-5...55 °C
IP rating
IP67, when threaded in
Approval/Conformity
CE
UKCA
cULus
WEEE
Ecolab
UKCA
cULus
WEEE
Ecolab
Transfer rate
COM2 (38.4 kBaud)
Process data cycle min.
35.2 ms
Process data IN
32 bytes
Process data OUT
32 bytes
Classifications
ECLASS 10.1
27-24-26-02
ECLASS 11.0
27-24-26-02
ECLASS 12.0
27-24-26-02
ECLASS 13.0
27-24-26-02
ECLASS 14.0
27-24-26-02
ECLASS 4.1
27-25-01-01
ECLASS 5.1.4
27-24-26-02
ECLASS 6.2
27-24-26-02
ECLASS 8.1
27-24-26-02
ECLASS 9.0
27-24-26-04
ECLASS 9.1
27-24-26-02
ETIM 4.0
EC001599
ETIM 5.0
EC001599
ETIM 6.0
EC001599
ETIM 7.0
EC001599
ETIM 8.0
EC001599
UNSPSC 11
39121306
UNSPSC 7.0901
39121306
