BMP000Z

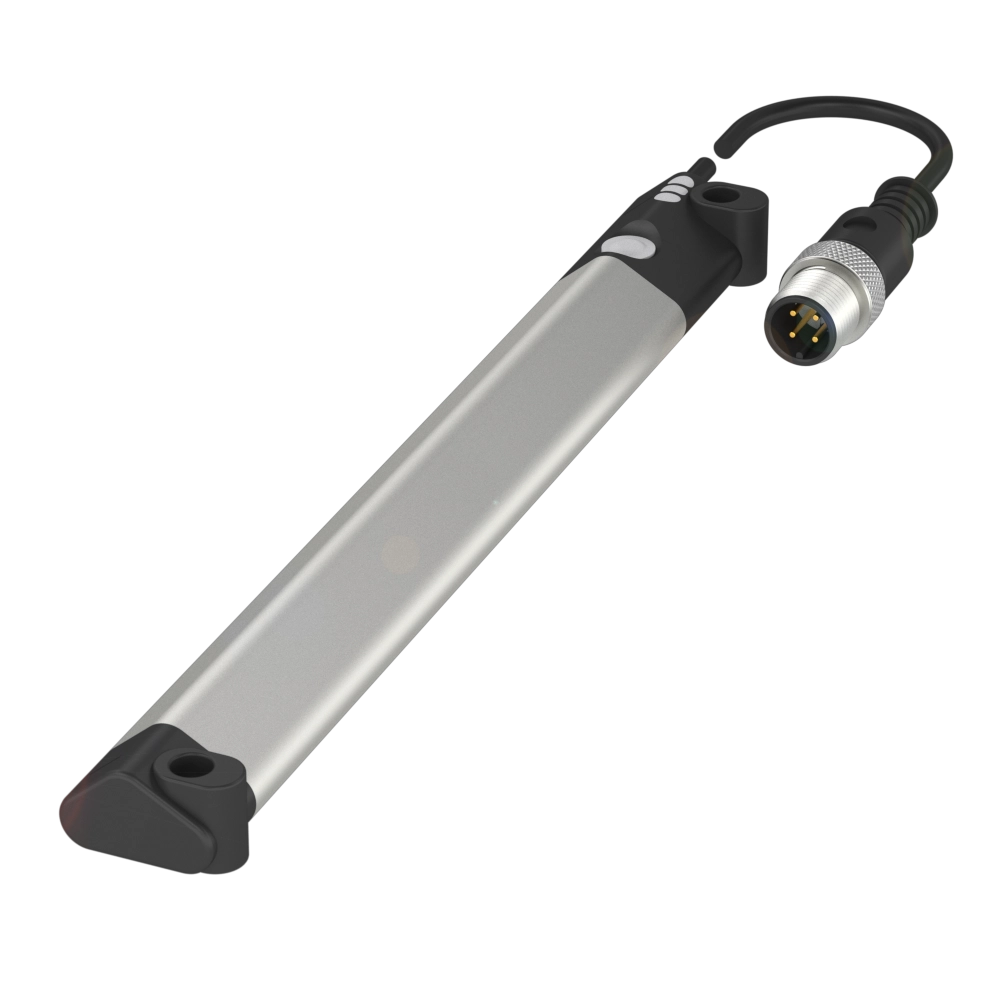

BMP 01-ZLZPP21A-0128-00-P00,5-S4

Magnetic field positioning systems

Measuring range
128 mm

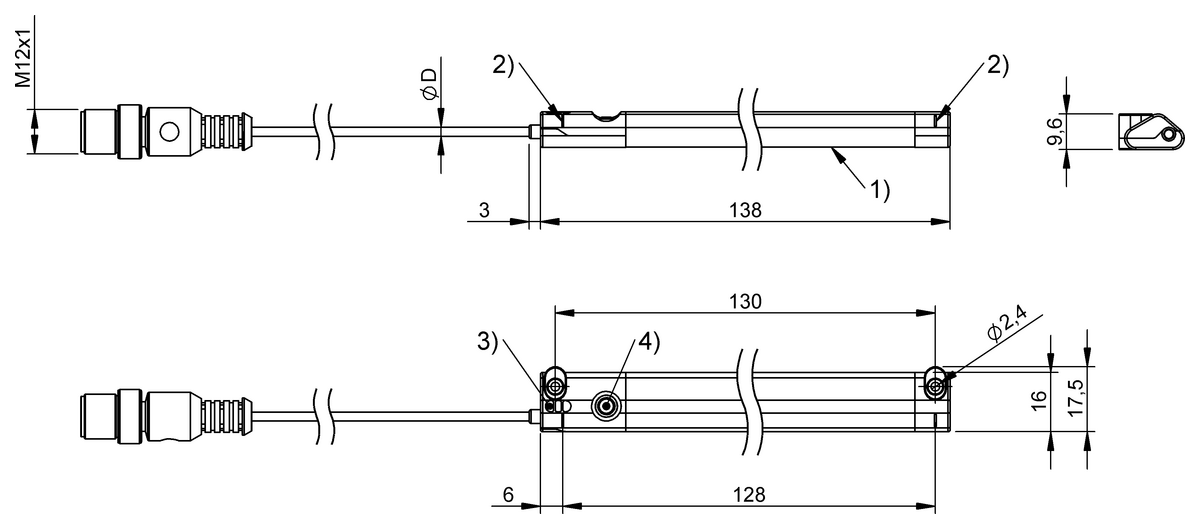

Dimension
17.5 x 9.6 x 138 mm
Interface
IO-Link 1.1
Resolution
≤ 1 µm
Repeat accuracy
100 µm
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

Quantity scale

Contact request
Key features
Measuring range
128 mm
Dimension
17.5 x 9.6 x 138 mm
Interface
IO-Link 1.1
Resolution
≤ 1 µm
Repeat accuracy
100 µm
Non-linearity typ.
±250 µm
Operating voltage Ub
15...30 VDC
Connection
Cable with connector, M12x1-Male, 4-pin, 0.5 m, PUR
Housing material
PA 12
Aluminium
Ambient temperature
-25...85 °C
IP rating
IP67
Approval/Conformity
CE
UKCA
cULus
WEEE
Classifications
ECLASS 10.1
27-27-01-04
ECLASS 11.0
27-27-01-04
ECLASS 12.0
27-27-43-01
ECLASS 13.0
27-27-43-01
ECLASS 14.0
27-27-43-01
ECLASS 4.1
27-27-01-04
ECLASS 5.1.4
27-27-01-04
ECLASS 6.2
27-27-01-04
ECLASS 8.1
27-27-01-04
ECLASS 9.0
27-27-01-04
ECLASS 9.1
27-27-01-04
ETIM 4.0
EC002544
ETIM 5.0
EC002544
ETIM 6.0
EC002544
ETIM 7.0
EC002544
ETIM 8.0
EC002544
UNSPSC 11
41111916
UNSPSC 7.0901
41111916
