BMF00N0

Name: BMF00N0
Brand: Balluff
SKU: BMF00N0
Price: 521.63 CNY
Availability: OutOfStock

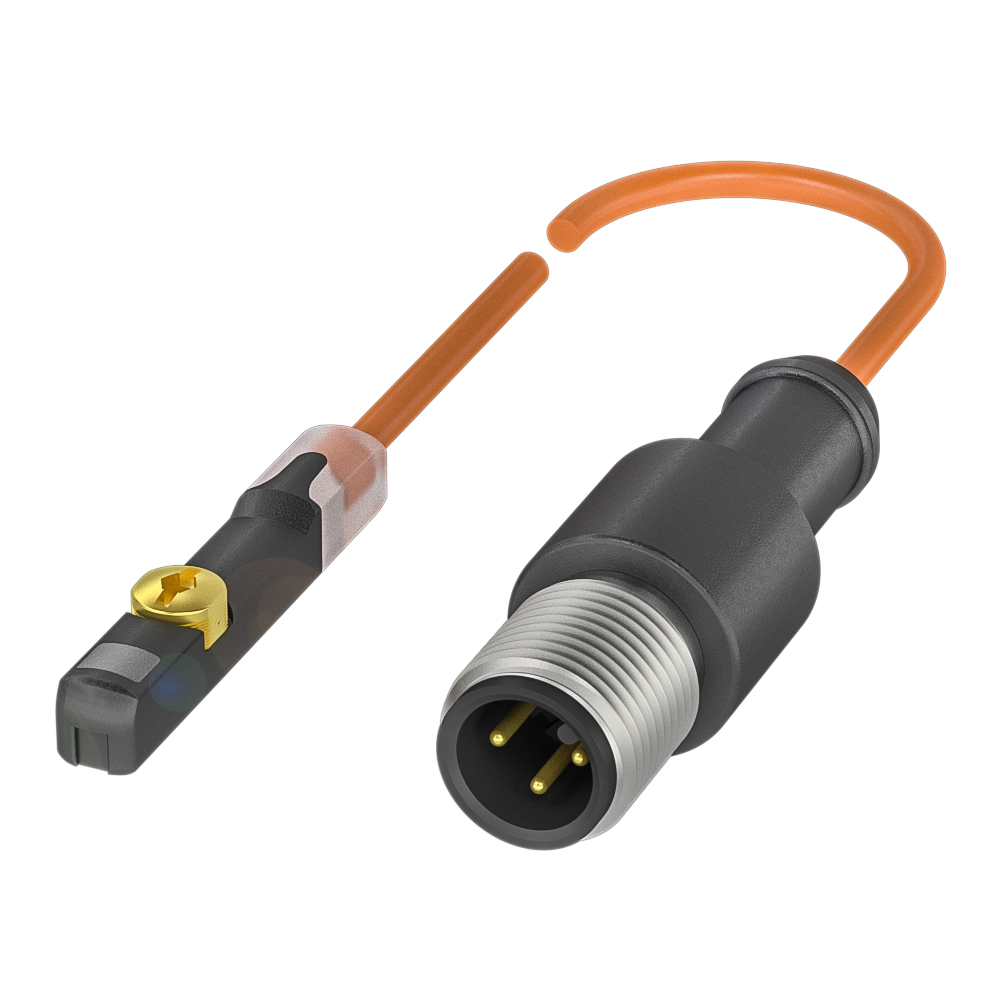

BMF 415KW-HAPS-W-5-P3-S4-00,3

For T-slot and use in harsh environments with welding spatter

Slot type

T-slot

Dimension

5 x 6.4 x 34 mm

Principle of operation

Magnetic field sensor

Connection

M12x1-Male, 3-pin, A-coded

Cable

TPU welding spark resistant Orange, 300 mm

Do you have any questions about the product?

		Alternative	Further alternative

	BMF00N0 BMF 415KW-HAPS-W-5-P3-S4-00,3 521.63 CNY	BMF00NM BMF 415KW-HAPS-W-5-P0-S4-00,3 521.63 CNY	BMF00NP BMF 415KW-HAPS-W-5-P0-S4-01 521.63 CNY
Slot type	T-slot	T-slot	T-slot
Dimension	5 x 6.4 x 34 mm	5 x 6.4 x 34 mm	5 x 6.4 x 34 mm
Principle of operation	Magnetic field sensor	Magnetic field sensor	Magnetic field sensor
Connection	M12x1-Male, 3-pin, A-coded	M12x1-Male, 3-pin, A-coded	M12x1-Male, 3-pin, A-coded
Cable	TPU welding spark resistant Orange, 300 mm	TPU welding spark resistant black, 300 mm	TPU welding spark resistant black, 1 m
Application	Pneumatic cylinder with T-slot. For dimensions, see sketch in product view. Welding area	Pneumatic cylinder with T-slot. For dimensions, see sketch in product view. Welding area	Pneumatic cylinder with T-slot. For dimensions, see sketch in product view. Welding area
Mounting part	can be installed in T-slot from above	can be installed in T-slot from above	can be installed in T-slot from above
Housing material	PA 12	PA 12	PA 12
Switching output	PNP normally open (NO)	PNP normally open (NO)	PNP normally open (NO)
Operating voltage Ub	10...30 VDC	10...30 VDC	10...30 VDC
Ambient temperature	0...80 °C	0...80 °C	0...80 °C
IP rating	IP67	IP67	IP67
Approval/Conformity	CE UKCA cULus WEEE	CE UKCA cULus WEEE	CE UKCA cULus WEEE
