Similar Illustration

BMF00MR

Name: BMF00MR
Brand: Balluff
SKU: BMF00MR
Price: 480.9 CNY
Availability: OutOfStock

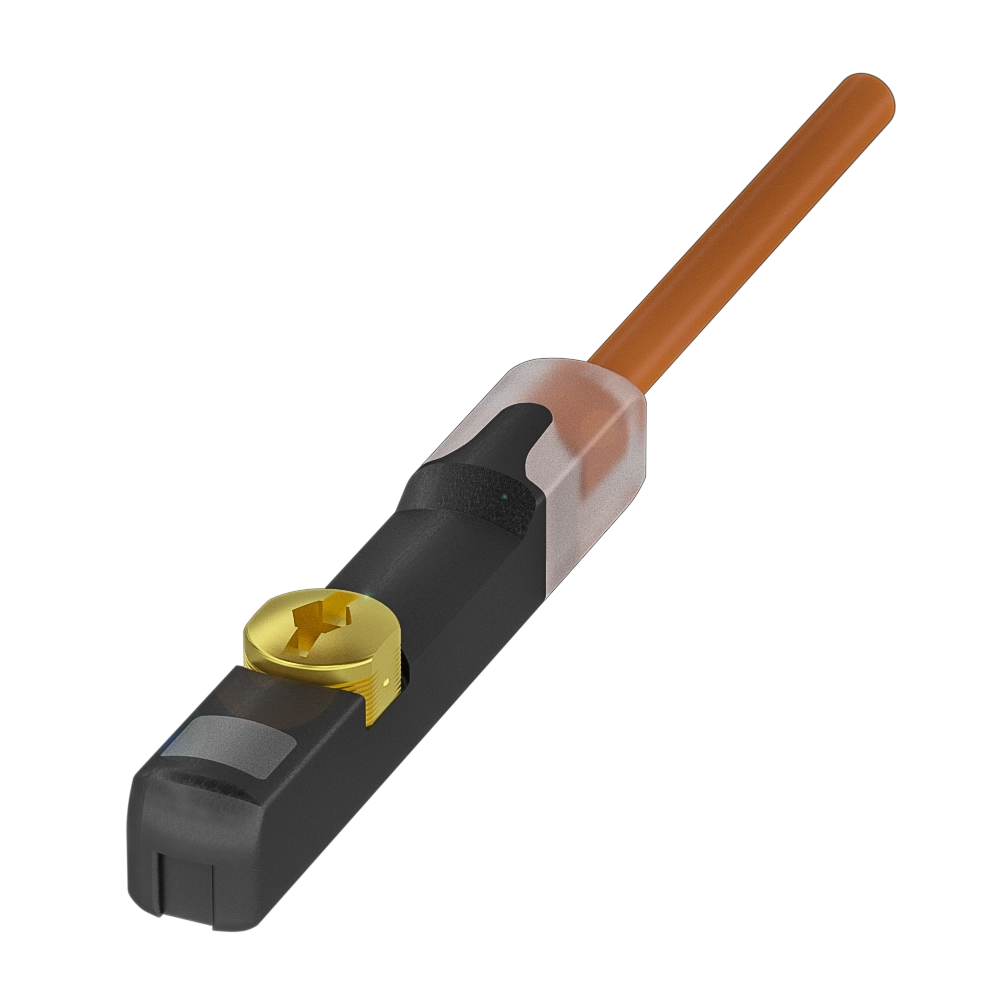

BMF 415KW-HAPS-W-5-P3-02

For T-slot and use in harsh environments with welding spatter

Slot type

T-slot

Dimension

5 x 6.4 x 34 mm

Principle of operation

Magnetic field sensor

Cable

TPU welding spark resistant Orange, 2 m

Application

Pneumatic cylinder with T-slot. For dimensions, see sketch in product view.
Welding area

Do you have any questions about the product? Get in touch with us.

This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

		Alternative	Further alternative

	BMF00MR	BMF00NE	BMF00PW
	BMF 415KW-HAPS-W-5-P3-02	BMF 415KW-HAPS-W-5-P0-02	BMF 235K-HMPS-C-3-P0-02
	480.90 CNY	480.90 CNY	219.08 CNY

Slot type	T-slot	T-slot	T-slot
Dimension	5 x 6.4 x 34 mm	5 x 6.4 x 34 mm	23.5 x 5 x 5.5 mm
Principle of operation	Magnetic field sensor	Magnetic field sensor	Magnetic field sensor
Cable	TPU welding spark resistant Orange, 2 m	TPU welding spark resistant black, 2 m	TPU, 2 m
Application	Pneumatic cylinder with T-slot. For dimensions, see sketch in product view. Welding area	Pneumatic cylinder with T-slot. For dimensions, see sketch in product view. Welding area	Pneumatic cylinder with T-slot. For dimensions, see sketch in product view.
Mounting part	can be installed in T-slot from above	can be installed in T-slot from above	can be installed in T-slot from above
Housing material	PA 12	PA 12	PA 12
Switching output	PNP normally open (NO)	PNP normally open (NO)	PNP normally open (NO)
Operating voltage Ub	10...30 VDC	10...30 VDC	10...30 VDC
Ambient temperature	0...80 °C	0...80 °C	-25...85 °C
IP rating	IP67	IP67	IP67
Approval/Conformity	CE UKCA cULus WEEE	CE UKCA cULus WEEE	cULus CE UKCA WEEE
Switching frequency	-	-	3000 Hz
