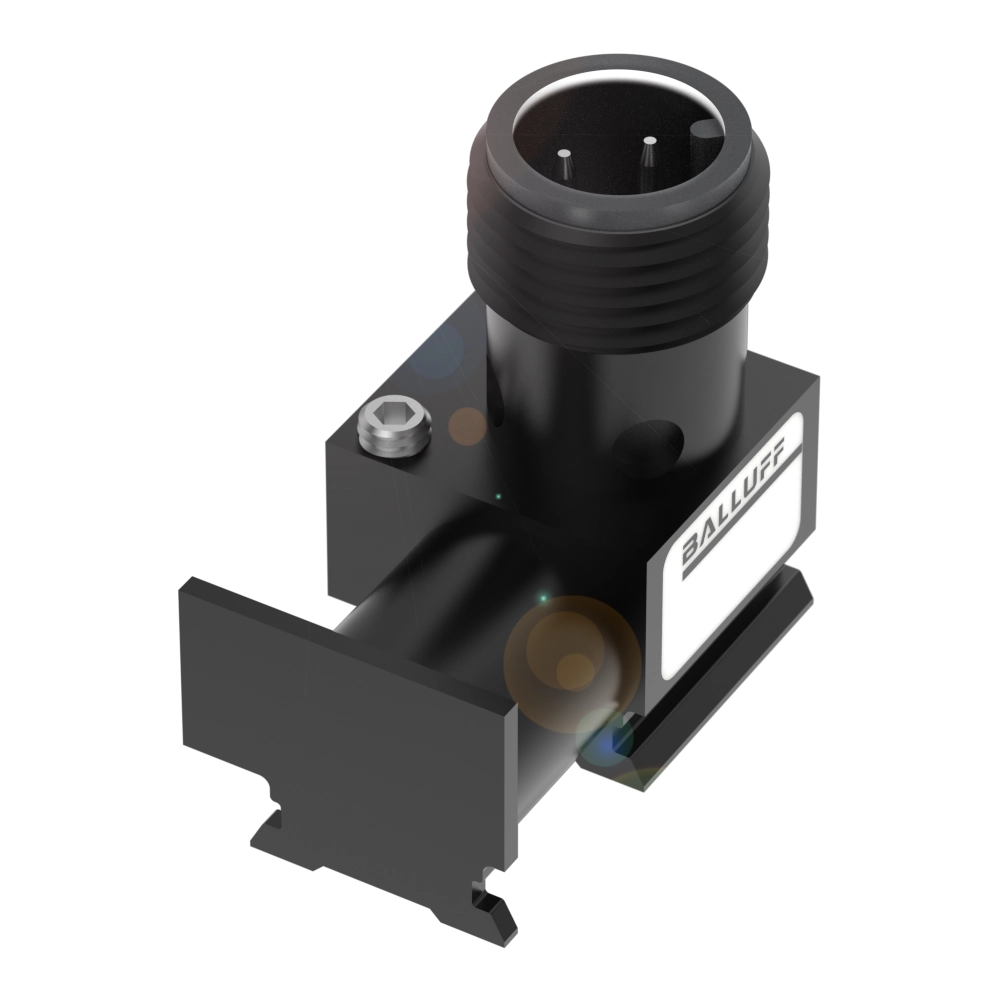

Magnetic field sensors for multiple slot shapes

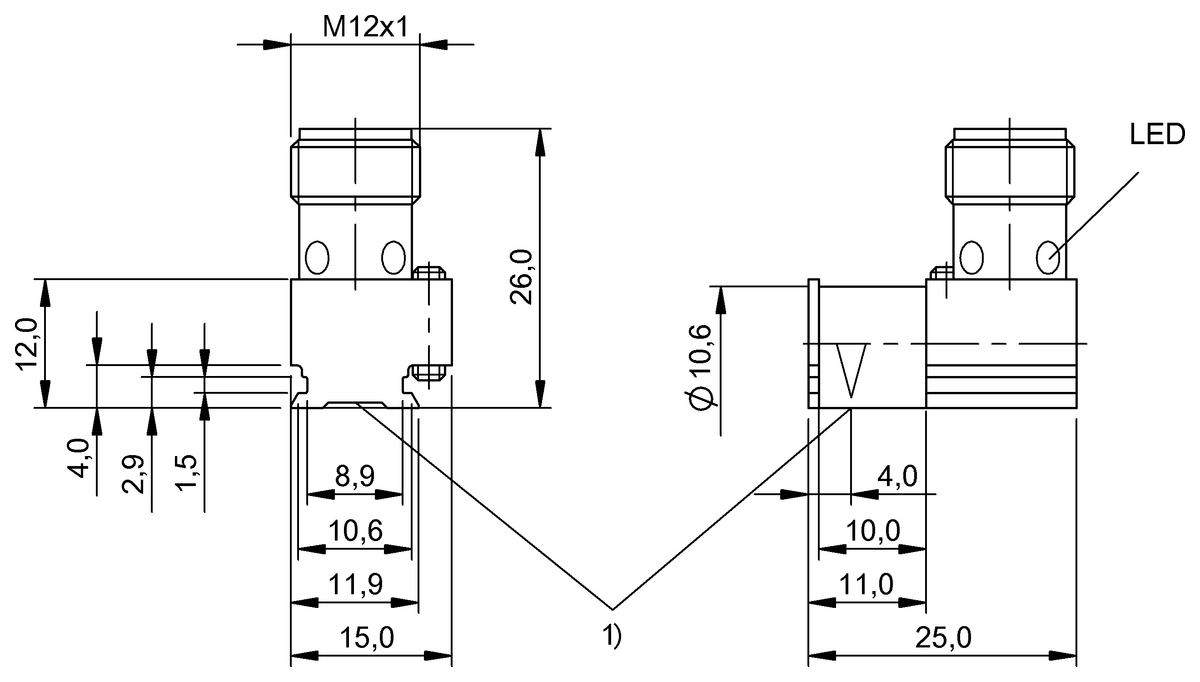

Dimension
25 x 11.9 x 26 mm
Principle of operation
Magnetic field sensor
Connection
M12x1-Male, 4-pin, A-coded
Application
Round cylinder
Pneumatic cylinder with trapezoidal slot
Pneumatic cylinder with trapezoidal slot
Mounting part
with tube cuff
Do you have any questions about the product?
Alternative products
|
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
BMF008ABMF 32M-PS-W-2-S4662.03 CNY |
BMF0067BMF 305M-PS-W-2-S4636.68 CNY |
BMF008EBMF 305M-PS-C-2-S4431.10 CNY |
|
| Dimension | 25 x 11.9 x 26 mm | 33.5 x 5 x 33.5 mm | 33.5 x 12.8 x 33.5 mm |
|---|---|---|---|
| Principle of operation | Magnetic field sensor | Magnetic field sensor | Magnetic field sensor |
| Connection | M12x1-Male, 4-pin, A-coded | M12x1-Male, 4-pin, A-coded | M12x1-Male, 4-pin, A-coded |
| Application |
Round cylinder Pneumatic cylinder with trapezoidal slot |
larger actuators Welding area |
larger actuators |
| Mounting part | with tube cuff | Mounting bracket BMF 305-HW* | Mounting bracket BMF 305-HW* |
| Housing material | Aluminium | Aluminium | Aluminium |
| Switching output | PNP normally open (NO) | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 10 Hz | 10 Hz | 10000 Hz |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C | -25...85 °C |
| Magnetic field immune | weld-immune (AC) | weld-immune (AC) | - |
| IP rating | IP67 | IP67 | IP67 |
| Approval/Conformity |
cULus CE UKCA WEEE |
cULus CE WEEE |
CE UKCA cULus WEEE |
