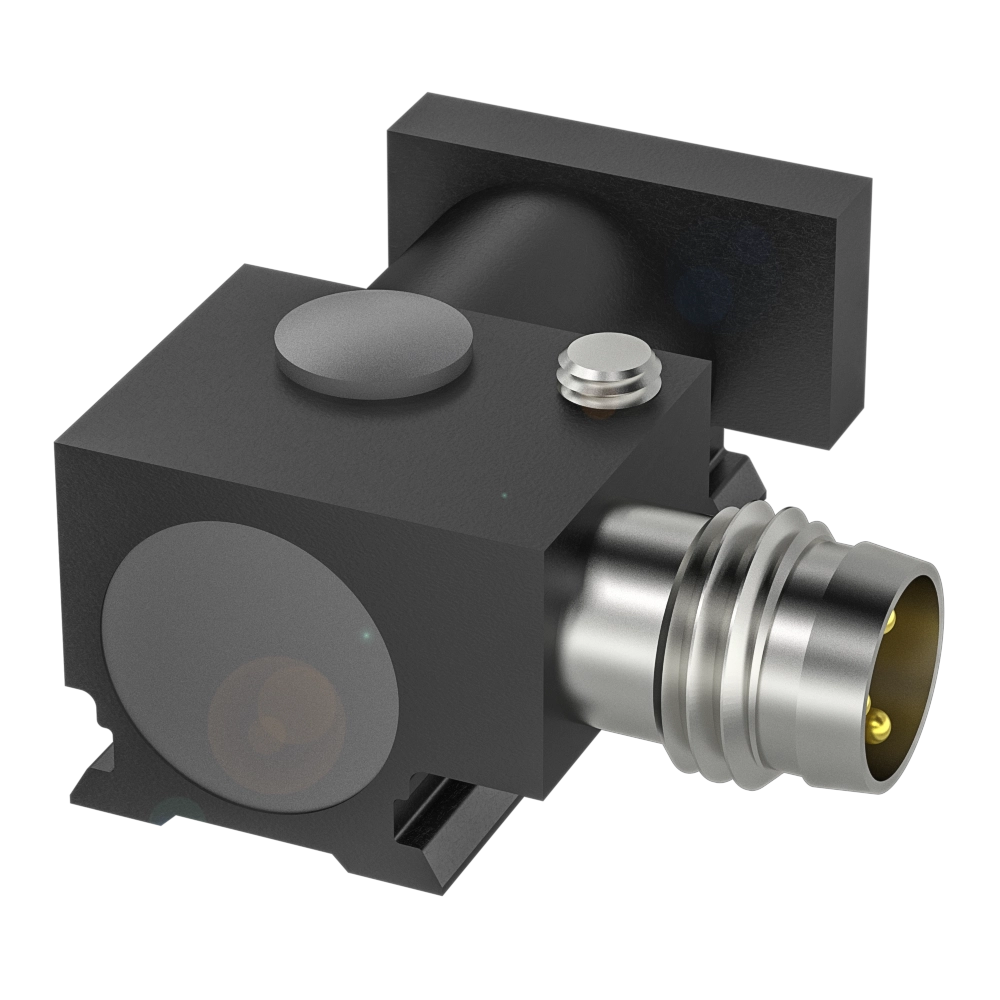

Magnetic field sensors for multiple slot shapes

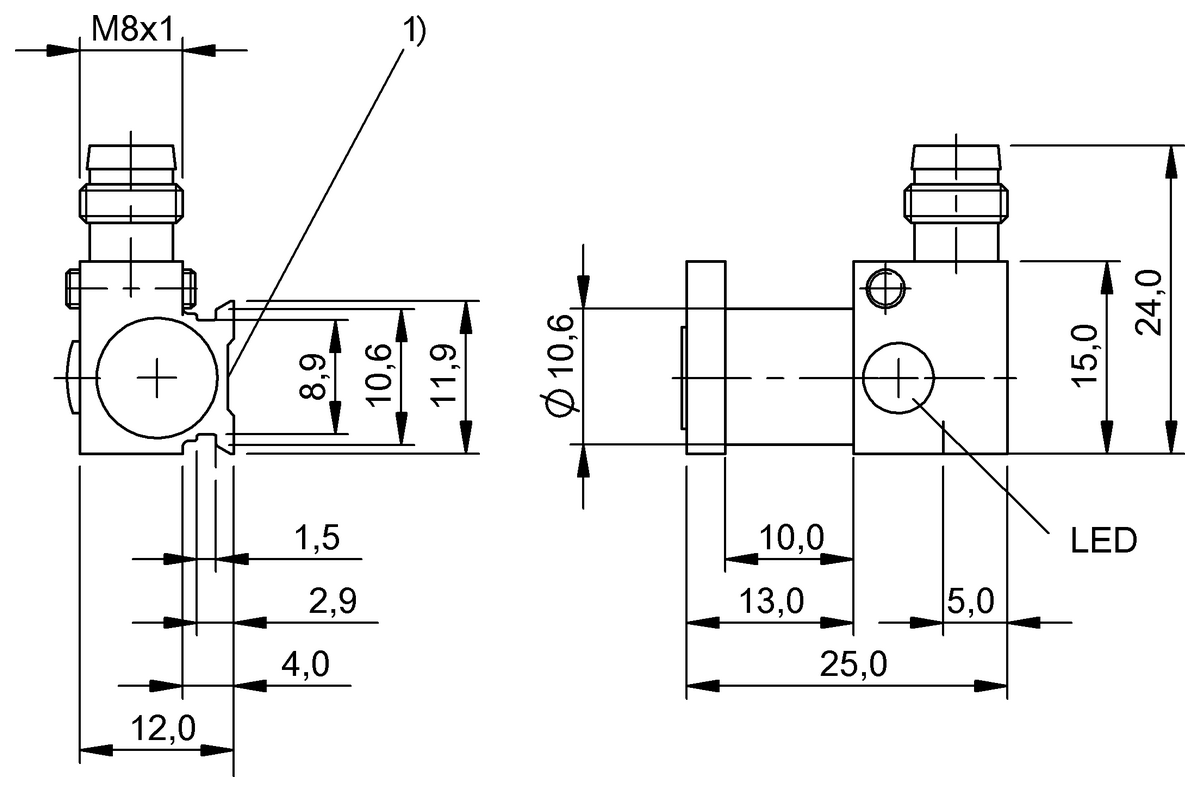

Dimension
25 x 11.9 x 26 mm
Principle of operation
Magnetic field sensor
Connection
M8x1-Male, 3-pin
Application
Round cylinder
Pneumatic cylinder with trapezoidal slot
Pneumatic cylinder with trapezoidal slot
Mounting part
with tube cuff
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
| BMF 32M-PS-C-2-S49 | BMF 305M-PS-C-2-S49 | BMF 32M-PS-C-2-SA1-S49 | |
|
446.55 CNY
List price
|
421.13 CNY
List price
|
652.05 CNY
List price
|
|
| Dimension | 25 x 11.9 x 26 mm | 33.5 x 9 x 26.2 mm | 25 x 11.9 x 26 mm |
|---|---|---|---|
| Principle of operation | Magnetic field sensor | Magnetic field sensor | Magnetic field sensor |
| Connection | M8x1-Male, 3-pin | M8x1-Male, 3-pin | M8x1-Male, 3-pin |
| Application |
Round cylinder Pneumatic cylinder with trapezoidal slot |
larger actuators |
Round cylinder Pneumatic cylinder with trapezoidal slot |
| Mounting part | with tube cuff | Mounting bracket BMF 305-HW* | with tube cuff |
| Housing material | Aluminium | Aluminium | Aluminium |
| Switching output | PNP normally open (NO) | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 10000 Hz | 10000 Hz | 10000 Hz |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...85 °C | -25...85 °C | -25...85 °C |
| IP rating | IP67 | IP67 | IP67 |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
cULus CE UKCA WEEE |
| Slot type | - | variable | - |
