Alternative products
|
|
Alternative
|
Further alternative
|
|
|
|
|
|
BMF001RBMF 103K-PS-C-2A-SA95-S75-00,3922.88 CNY |
BMF001PBMF 103K-PS-C-2A-SA7-S49-00,3752.63 CNY |
BMF001LBMF 103K-PS-C-2A-SA2-S49-00,3596.85 CNY |
|
| Slot type | variable | variable | variable |
|---|---|---|---|

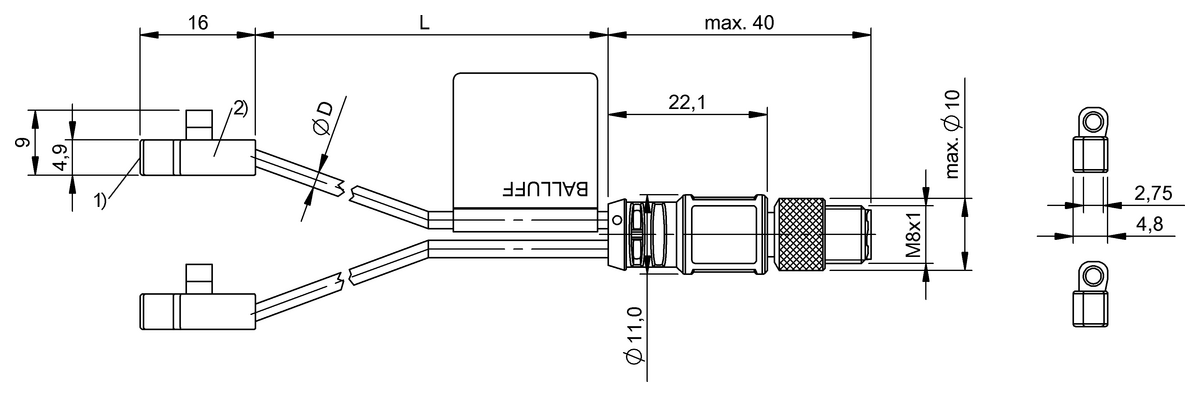

| Dimension | 9 x 4.8 x 16 mm | 9 x 4.8 x 16 mm | 9 x 4.8 x 16 mm |
| Principle of operation | Magnetic field sensor | Magnetic field sensor | Magnetic field sensor |
| Connection | M8x1-Male, 4-pin | M8x1-Male, 3-pin | M8x1-Male, 3-pin |
| Cable | PUR, 0.3 m | PUR, 0.3 m | PUR, 0.3 m |
| Application | Optimized response path especially suited for short-stroke cylinders. | radially magnetized magnets (Schunk) | Optimized response path especially suited for short-stroke cylinders. |
| Mounting part | Mounting bracket BMF 103-HW* | Mounting bracket BMF 103-HW* | Mounting bracket BMF 103-HW* |
| Housing material | PBT | LCP | PBT |
| Switching output | PNP normally open (NO) | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 30000 Hz | 7000 Hz | 30000 Hz |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...85 °C | -25...85 °C | -25...85 °C |
| IP rating | IP67 | IP67 | IP67 |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
cULus CE UKCA WEEE |
Only CAD model download is supported
