Quantity scale
Contact request
Key features
Series
C

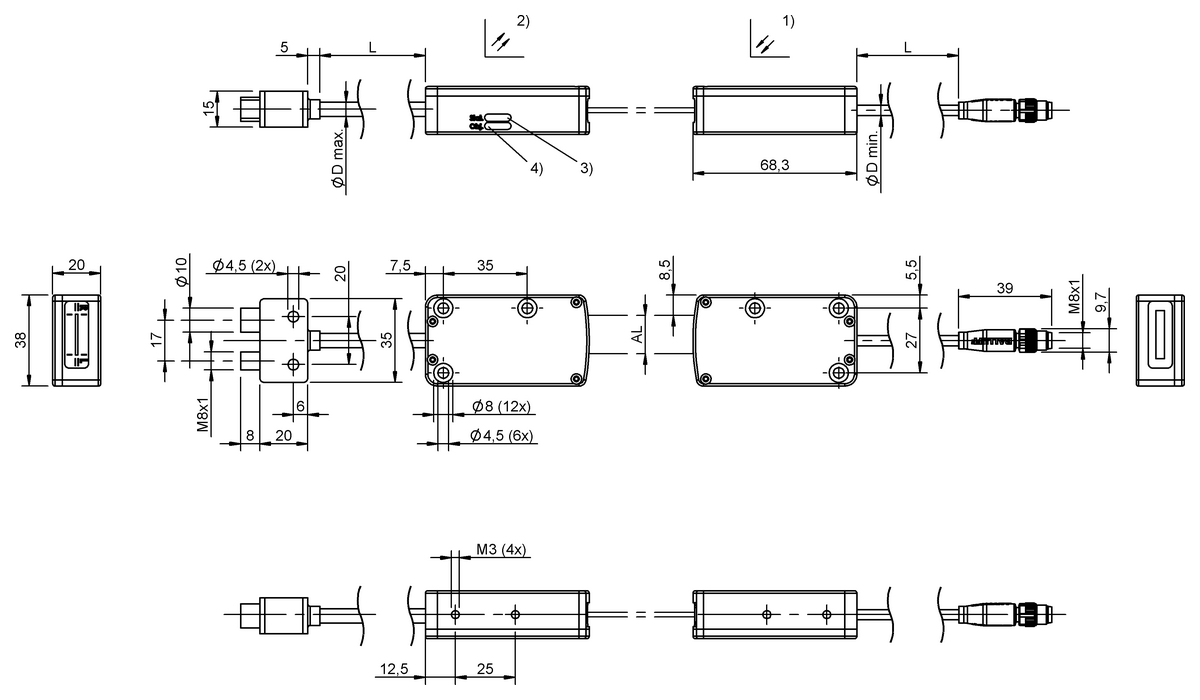

Dimension
38 x 20 x 68.3 mm
Interface
IO-Link 1.1
Principle of operation
Light array
Special optical feature
CCD technology
Beam characteristic
Collimated light strip, width 20 mm
Light type
Laser red light
Range
0...2 m
Connection 1
M8x1-Male, 4-pin
Connection 2
M8x1-Female, 4-pin
Connection 3
M8x1-Male, 4-pin
Housing material
Aluminium, Anodized
Operating voltage Ub
18...30 VDC
Approval/Conformity
CE
UKCA
WEEE
cULus
UKCA
WEEE
cULus
Classifications
ECLASS 10.1
27-27-08-01
ECLASS 11.0
27-27-08-01
ECLASS 12.0
27-27-09-16
ECLASS 13.0
27-27-09-16
ECLASS 14.0
27-27-09-16
ECLASS 5.1.4
27-27-08-01
ECLASS 6.2
27-27-08-01
ECLASS 8.1
27-27-08-01
ECLASS 9.0
27-27-08-01
ECLASS 9.1
27-27-08-01
ETIM 7.0
EC001832
ETIM 8.0
EC001832
UNSPSC 11
39121528
UNSPSC 7.0901
39121528
