Signal transmission via analog output signals 1...10 V (easy handling)

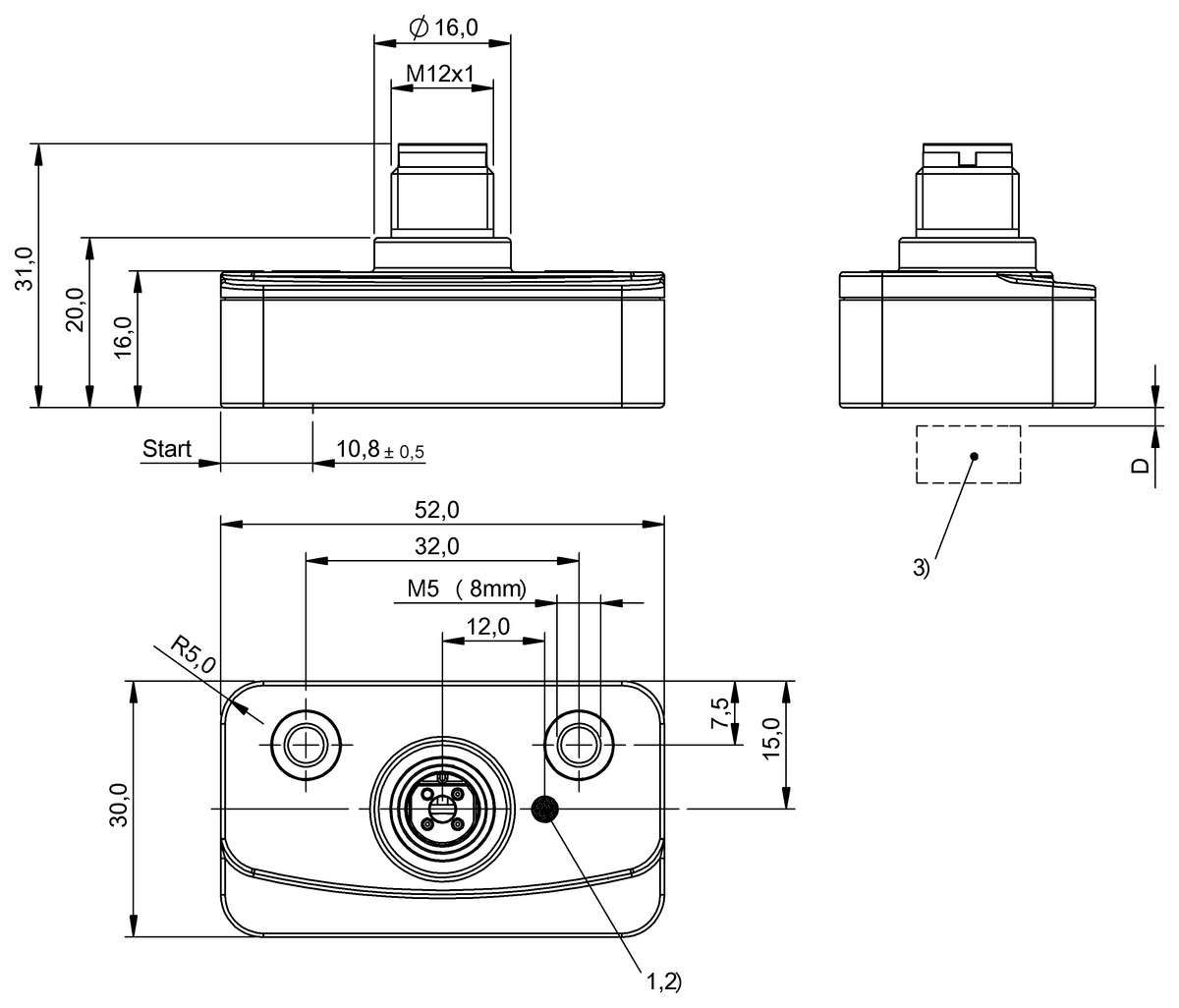

Dimension
52 x 30 x 16 mm
Style Housing
block style
Connection
Connector, M12x1-Male, 3-pin
Housing material
PA
Measuring range
0...30 mm
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Alternative
|
|
|
|
|
|
|
BIP AD2-T030-02-S4
2,107.43 CNY
List price
|
BIP AD2-B040-02-S4
2,107.43 CNY
List price
|
|
| Dimension | 52 x 30 x 16 mm | 70 x 30 x 16 mm |
|---|---|---|
| Style Housing | block style | block style |
| Connection | Connector, M12x1-Male, 3-pin | Connector, M12x1-Male, 3-pin |
| Housing material | PA | PA |
| Measuring range | 0...30 mm | 0...40 mm |
| Analog output | Analog, voltage 0...10 V | Analog, voltage 0...10 V |
| Output characteristic | Adjustable | Adjustable |
| Repeat accuracy per BWN | ±100 µm | ±100 µm |
| Non-linearity max. | ±500 µm | ±500 µm |
| Operating voltage Ub | 15...30 VDC | 15...30 VDC |
| Ambient temperature | -25...85 °C | -25...85 °C |
| IP rating | IP67 | IP67 |
| Approval/Conformity |
CE UKCA cURus WEEE |
CE UKCA cURus WEEE |
