Similar Illustration
Only CAD model download is supported
Signal transmission via IO-Link

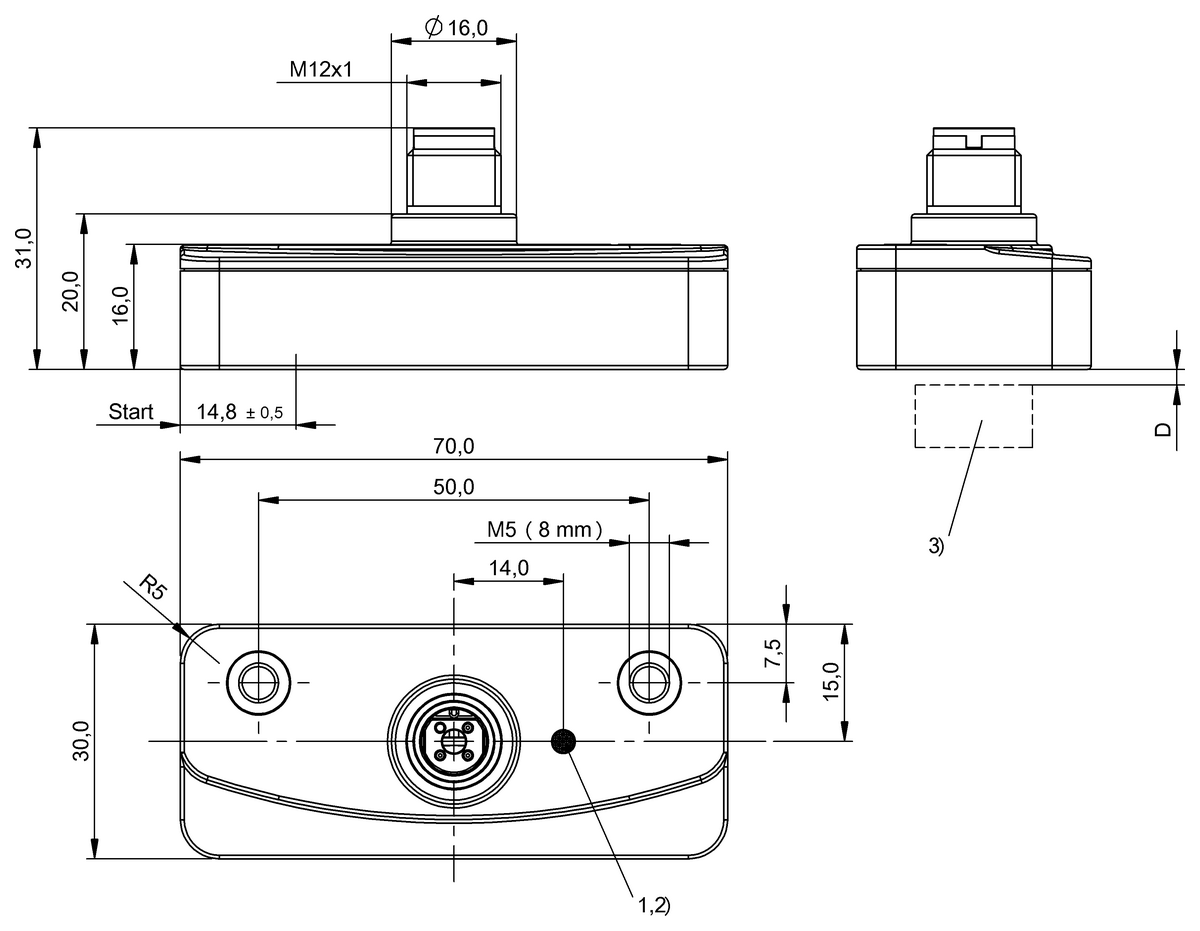

Dimension
70 x 30 x 16 mm
Style Housing
block style
Connection
Connector, M12x1-Male, 3-pin
Housing material
PA
Measuring range
0...40 mm
Recommended successor products
BIP002P
Inductive position sensors
BIP L02-T040-06-S4
Estimated availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
Soon no longer available
|
Recommended alternative
|
|
|
|
|
|
| BIP LD2-T040-02-S4 | BIP L02-T040-06-S4 | |
|
2,234.80 CNY
List price
|
2,286.64 CNY
List price
|
|
| Dimension | 70 x 30 x 16 mm | 52 x 15.8 x 30 mm |
|---|---|---|
| Style Housing | block style | block style |
| Connection | Connector, M12x1-Male, 3-pin | Connector, M12x1-Male, 4-pin |
| Housing material | PA | PA |
| Measuring range | 0...40 mm | 0...40 mm |
| Interface | IO-Link 1.0 | IO-Link 1.1 |
| Repeat accuracy per BWN | ±100 µm | - |
| Non-linearity max. | ±500 µm | ±250 µm |
| Operating voltage Ub | 18...30 VDC | 15...30 VDC |
| Ambient temperature | -25...85 °C | -25...85 °C |
| IP rating | IP67 | IP67 |
| Approval/Conformity |
CE UKCA cURus WEEE |
CE UKCA cULus WEEE |
| Principle of operation | Inductive positioning system | Inductive positioning system |
| Analog output | - | Analog, voltage (default)/Analog, current selectable 0…10 V/4…20 mA |
| Output characteristic | - | increasing, adjustable |
