Key features
Function
Signal transmission
Signal type
unidirectional
Digital inputs
8x PNP
Transmission distance
0...5 mm
Component
Remote
Connection
Connector, M12x1-Female, 12-pin
Output voltage
24 VDC
Rated output current
0.5 A
Housing material
Nickel-plated brass, coated

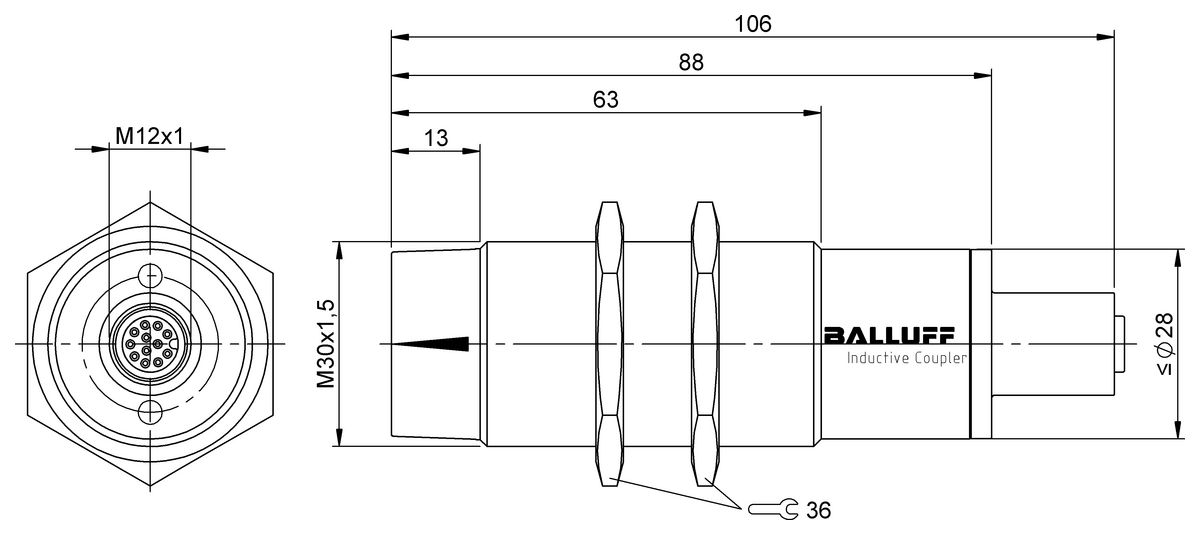

Dimension
Ø 30 x 106 mm
Ambient temperature
0...55 °C
IP rating
IP67
Classifications
ECLASS 10.1
27-04-07-90
ECLASS 11.0
27-04-07-90
ECLASS 12.0
27-04-07-01
ECLASS 13.0
27-04-07-01
ECLASS 14.0
27-04-07-01
ECLASS 4.1
27-04-90-90
ECLASS 5.1.4
27-04-90-90
ECLASS 6.2
27-04-90-90
ECLASS 8.1
27-04-90-90
ECLASS 9.0
27-04-07-90
ECLASS 9.1
27-04-07-90
ETIM 4.0
EC002714
ETIM 5.0
EC002714
ETIM 6.0
EC002714
ETIM 7.0
EC002714
ETIM 8.0
EC002714
UNSPSC 11
39121019
UNSPSC 7.0901
39121019
