BGL005T

Name: BGL005T
Brand: Balluff
SKU: BGL005T
Price: 99.6 CNY
Availability: OutOfStock

BGL 5L-002-01

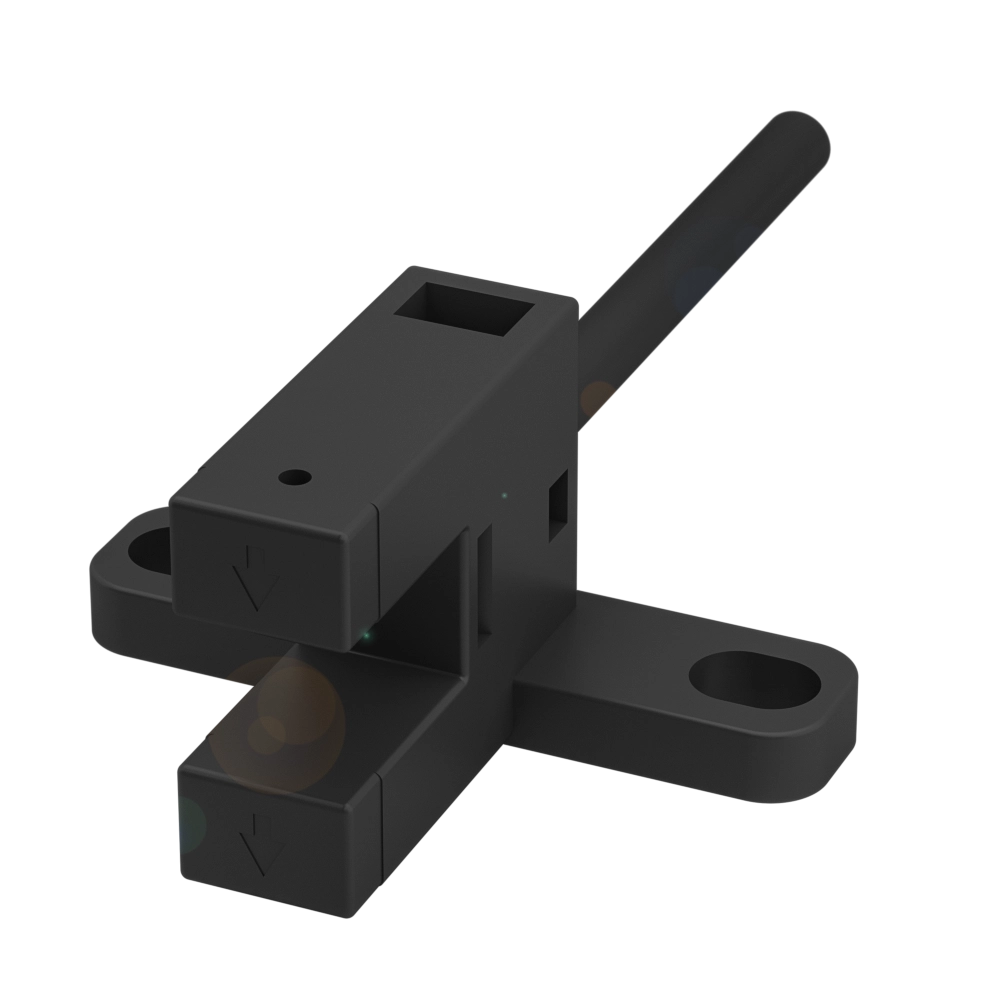

Space-saving fork light barriers made of plastic in various designs

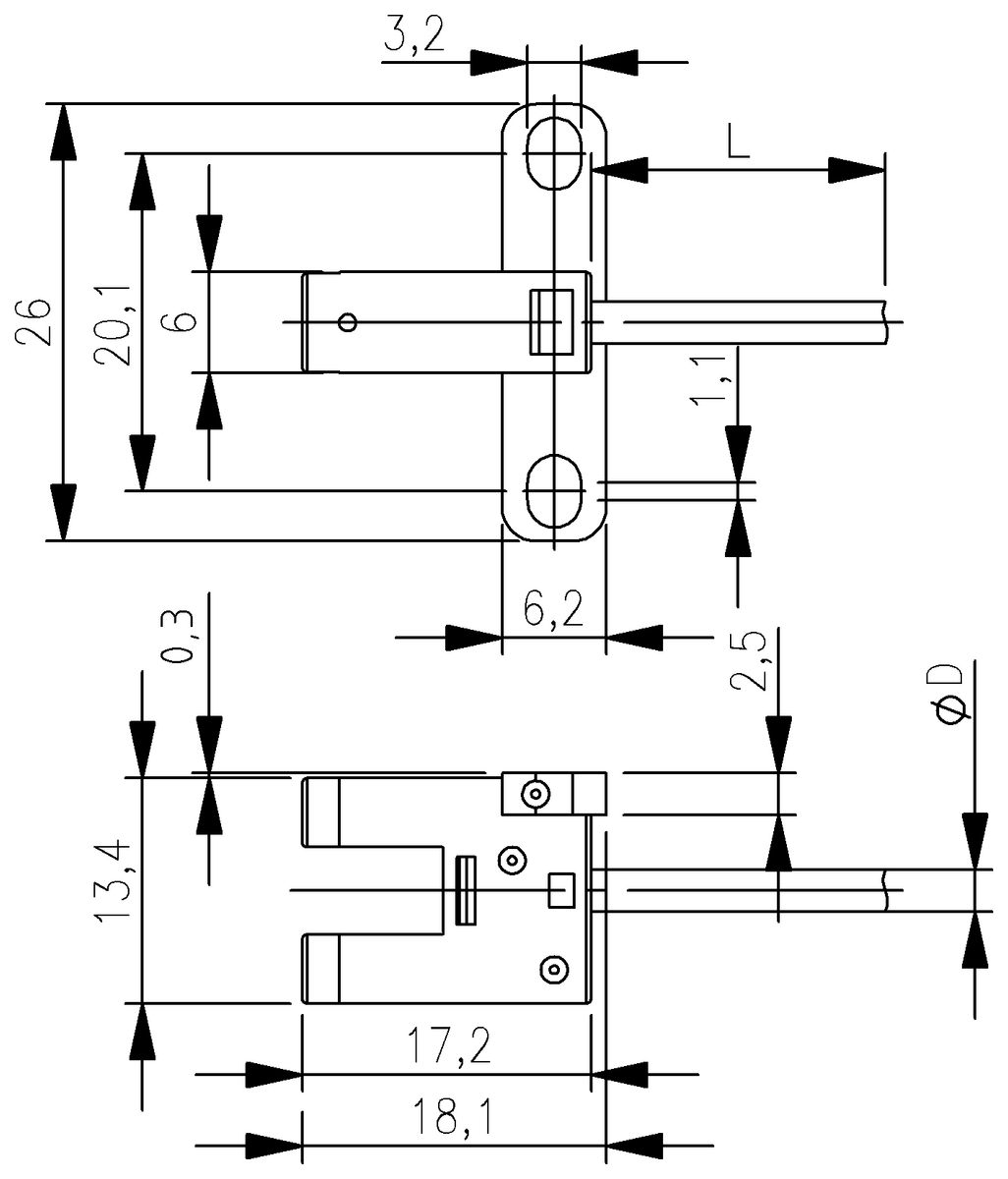

Dimension

13.7 x 18.1 x 26 mm

Fork opening

5 mm

Interface

PNP normally closed (NC)
PNP normally open (NO)

Principle of operation

Photoelectric sensor

Principle of optical operation

Through-beam sensor

Do you have any questions about the product?

		Alternative	Further alternative

	BGL005T BGL 5L-002-01 99.60 CNY	BGL0071 BGL 5L-002-03 103.50 CNY	BGL006W BGL 5L-002-05 107.85 CNY
Dimension	13.7 x 18.1 x 26 mm	13.7 x 18.1 x 26 mm	13.7 x 18.1 x 26 mm
Fork opening	5 mm	5 mm	5 mm
Interface	PNP normally closed (NC) PNP normally open (NO)	PNP normally closed (NC) PNP normally open (NO)	PNP normally closed (NC) PNP normally open (NO)
Principle of operation	Photoelectric sensor	Photoelectric sensor	Photoelectric sensor
Principle of optical operation	Through-beam sensor	Through-beam sensor	Through-beam sensor
Light type	LED infrared Infrared	LED infrared Infrared	LED infrared Infrared
Connection	Cable, 1 m, PVC	Cable, 3 m, PVC	Cable, 5 m, PVC
Housing material	PBT	PBT	PBT
Material sensing surface	PMMA	PMMA	PMMA
Operating voltage Ub	5...24 VDC	5...24 VDC	5...24 VDC
Approval/Conformity	CE cULus UKCA WEEE	CE cULus UKCA WEEE	CE cULus UKCA WEEE
