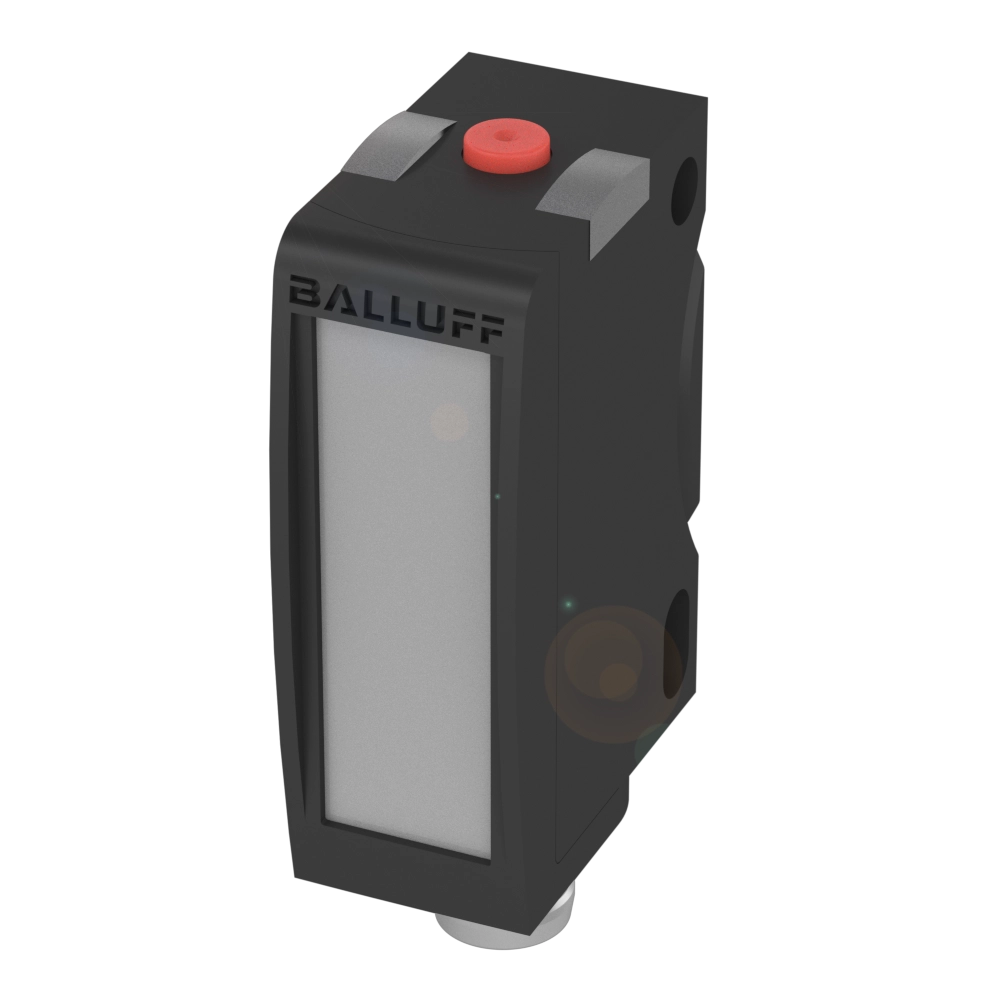

Similar Illustration

BFS000P

Name: BFS000P
Brand: Balluff
SKU: BFS000P
Price: 2147.63 CNY
Availability: OutOfStock

BFS 6K-UI-L02-S75

Compact format

Series

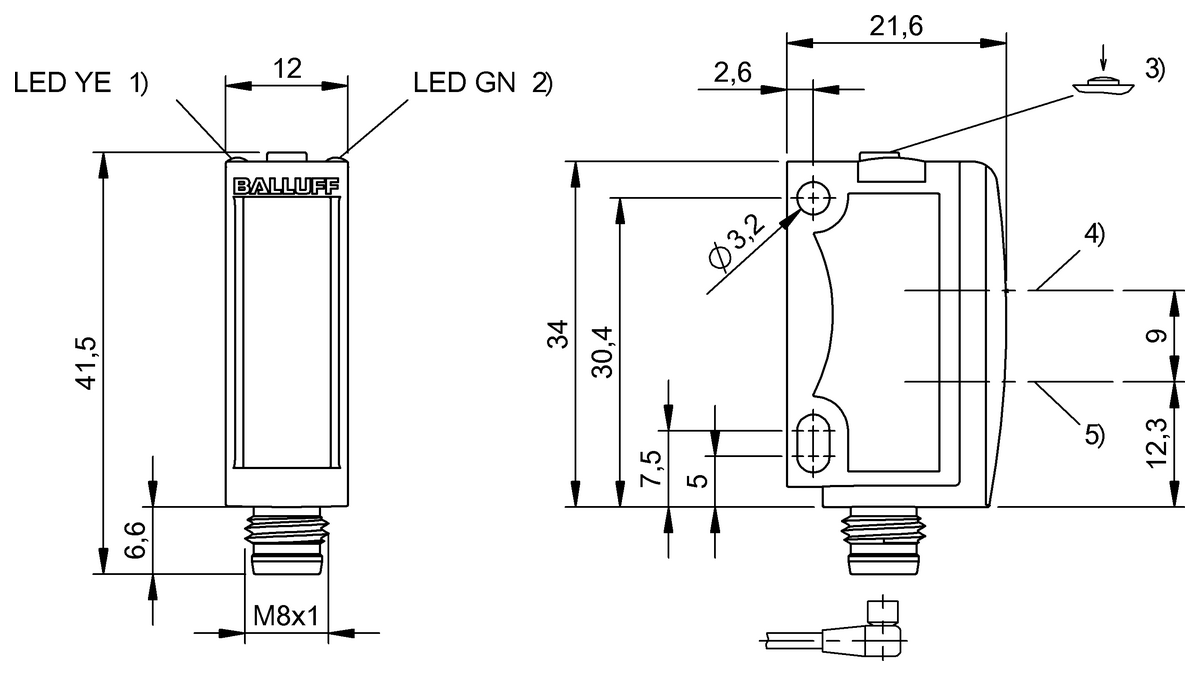

Dimension

12 x 34 x 21.6 mm

Interface

IO-Link-Device 1.1.3
Push-Pull/IO-Link NO/NC

Input function

Key disable on/off
Same function as button

Principle of operation

Color sensor

Do you have any questions about the product? Get in touch with us.

This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

		Alternative

	BFS000P	BFS000N
	BFS 6K-UI-L02-S75	BFS 6K-UI-L01-S75
	2,147.63 CNY	2,320.13 CNY

Series	6K	6K
Dimension	12 x 34 x 21.6 mm	12 x 34 x 21.6 mm
Interface	IO-Link-Device 1.1.3 Push-Pull/IO-Link NO/NC	IO-Link-Device 1.1.3 Push-Pull/IO-Link NO/NC
Input function	Key disable on/off Same function as button	Key disable on/off Same function as button
Principle of operation	Color sensor	Color sensor
Principle of optical operation	Diffuse sensor	Diffuse sensor
Beam characteristic	Focused	Focused
Light type	LED RGB	LED RGB
Light spot size	1 x 5 mm at 12 mm	1 x 5 mm at 12 mm
Range	9...15 mm	9...15 mm
Connection	Connector, M8x1-Male, 4-pin	Connector, M8x1-Male, 4-pin
Housing material	ABS	ABS
Material sensing surface	PMMA	PMMA
Operating voltage Ub	10...30 VDC	10...30 VDC
Approval/Conformity	CE UKCA cULus WEEE	CE UKCA cULus WEEE
