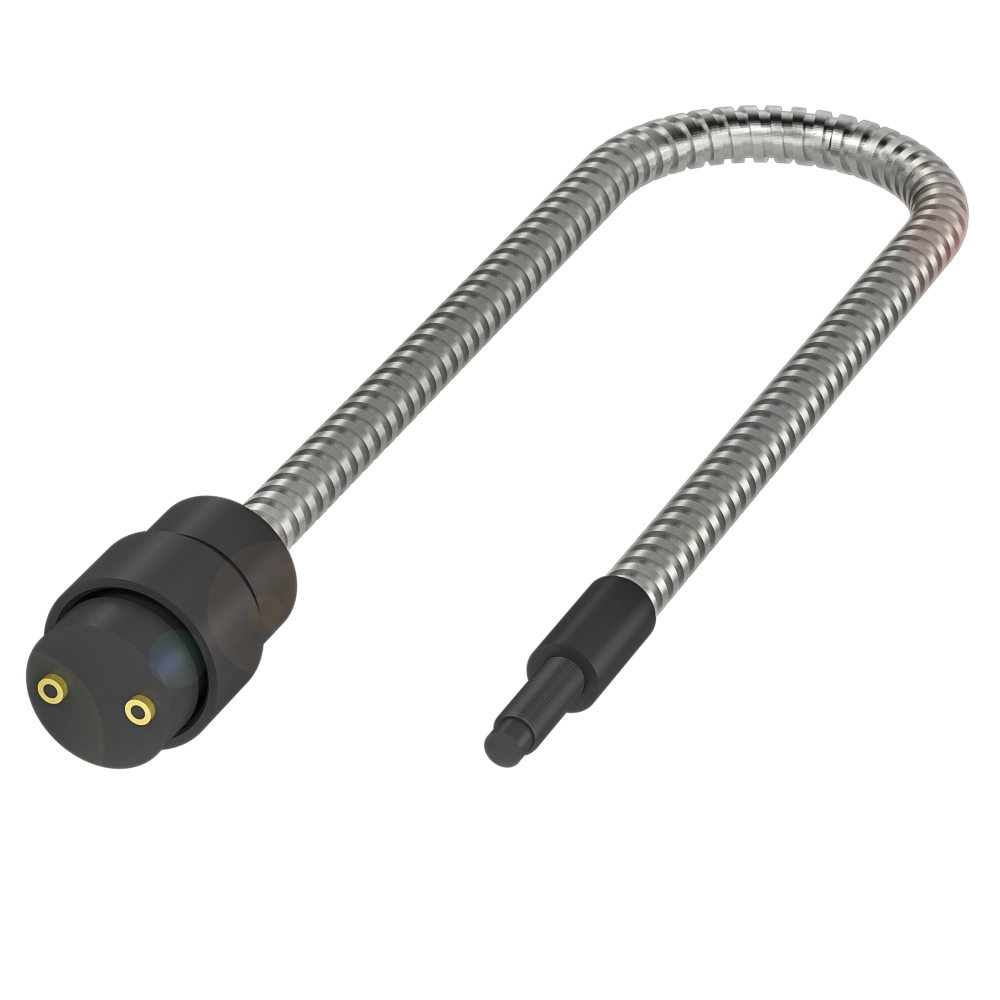

Cylindrical glass fibers with straight and angled optics
Version
M5, standard
Use
for fiber optic base units BFB
Reference base unit
BFB M18M-011-P-S4
Fiber type material
Glass
Cable length L
0.5 m
Do you have any questions about the product?
Alternative products
|
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
BFO0026BFO 18A-XAA-MZG-30-0,5836.63 CNY |
BFO0027BFO 18A-XAA-MZG-30-11,121.25 CNY |
BFO002EBFO 18A-XAA-MZG-30-32,363.25 CNY |
|
| Version | M5, standard | M5, standard | M5, standard |
|---|---|---|---|
| Use | for fiber optic base units BFB | for fiber optic base units BFB | - |
| Reference base unit | BFB M18M-011-P-S4 | BFB M18M-011-P-S4 | BFB M18M-011-P-S4 |
| Fiber type material | Glass | Glass | Glass |
| Cable length L | 0.5 m | 1 m | 3 m |
| Material jacket | Stainless steel | Stainless steel | Stainless steel |
| Range | 20 mm | 20 mm | 20 mm |
| Ambient temperature | -20...250 °C | -20...250 °C | -20...250 °C |
| Active surface, fibers | Bundle Ø 3.0 mm | Bundle Ø 3.0 mm | Bundle Ø 3.0 mm |
| Active surface, fiber arrangement | Segmented bundle | Segmented bundle | Segmented bundle |
| IP rating | IP50 | IP50 | IP50 |
