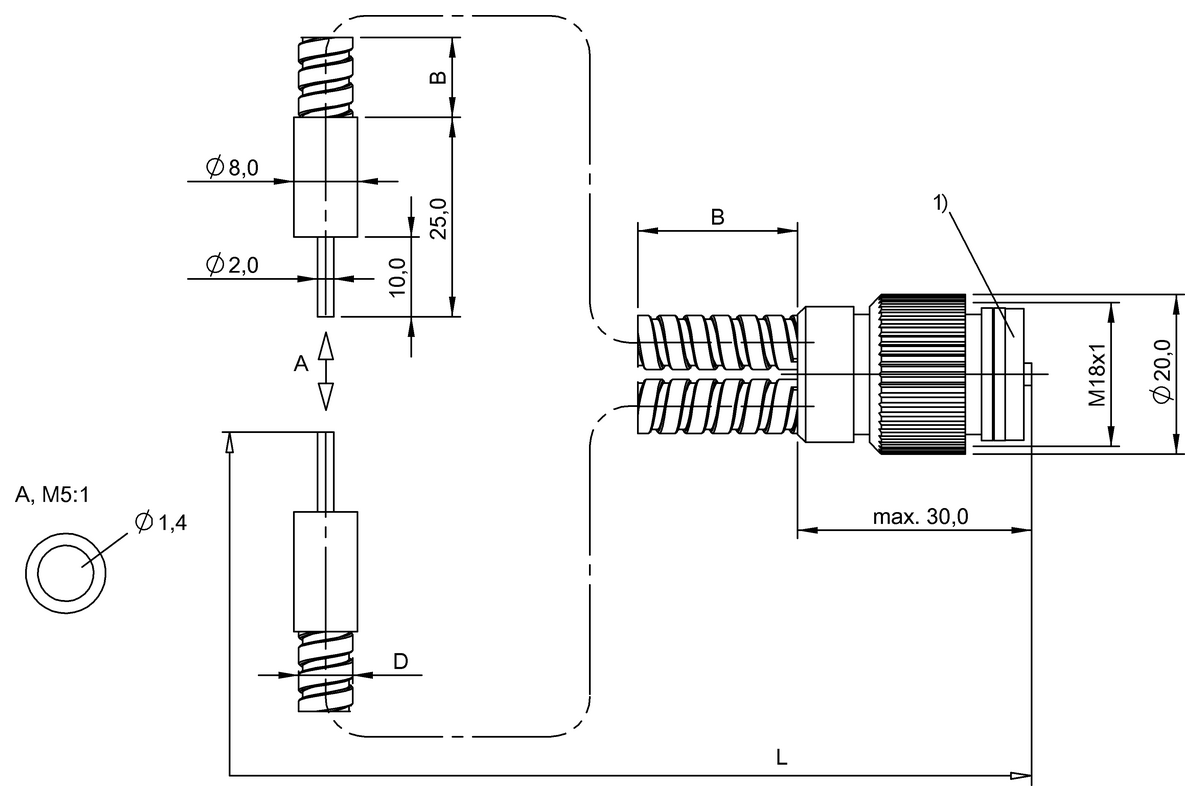

Similar Illustration

BFO0020

Name: BFO0020
Brand: Balluff
SKU: BFO0020
Price: 1699.13 CNY
Availability: OutOfStock

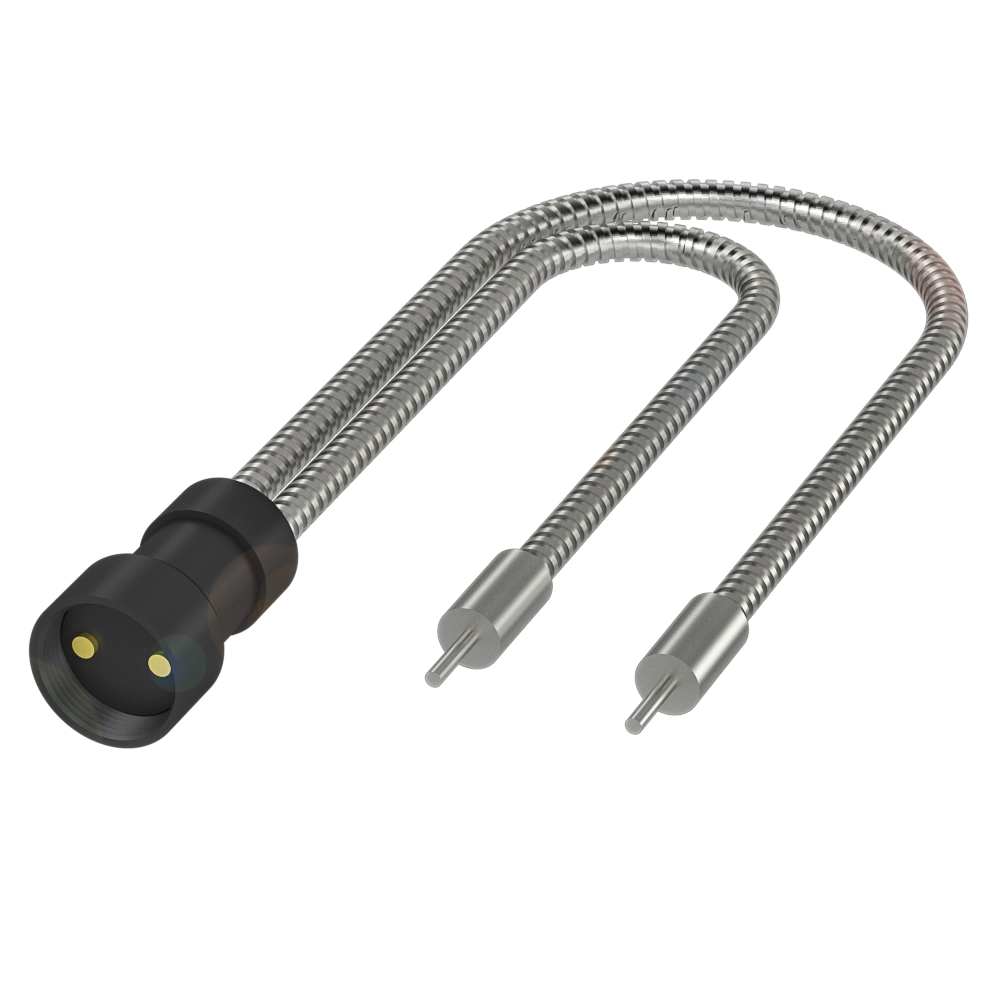

BFO 18A-LGG-MZG-10-1

Cylindrical glass fibers with straight and angled optics

Version

Ø 2, standard

Use

for fiber optic base units BFB

Reference base unit

BFB M18M-011-P-S4

Fiber type material

Glass

Cable length L

1 m

Do you have any questions about the product?

This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

		Alternative	Further alternative

	BFO0020 BFO 18A-LGG-MZG-10-1 1,699.13 CNY	BFO0021 BFO 18A-LGG-MZG-10-1,5 1,983.75 CNY	BFO001Z BFO 18A-LGG-MZG-10-0,5 1,457.63 CNY
Version	Ø 2, standard	Ø 2, standard	Ø 2, standard
Use	for fiber optic base units BFB	-	for fiber optic base units BFB
Reference base unit	BFB M18M-011-P-S4	BFB M18M-011-P-S4	BFB M18M-011-P-S4
Fiber type material	Glass	Glass	Glass
Cable length L	1 m	1.5 m	0.5 m
Material jacket	Stainless steel	Stainless steel	Stainless steel
Range	100 mm	100 mm	100 mm
Ambient temperature	-20...250 °C	-20...250 °C	-20...250 °C
Active surface, fibers	Bundle Ø 1.4 mm	Bundle Ø 1.4 mm	Bundle Ø 1.4 mm
Active surface, fiber arrangement	Homogeneous bundle	Homogeneous bundle	Homogeneous bundle
IP rating	IP50	IP50	IP50
