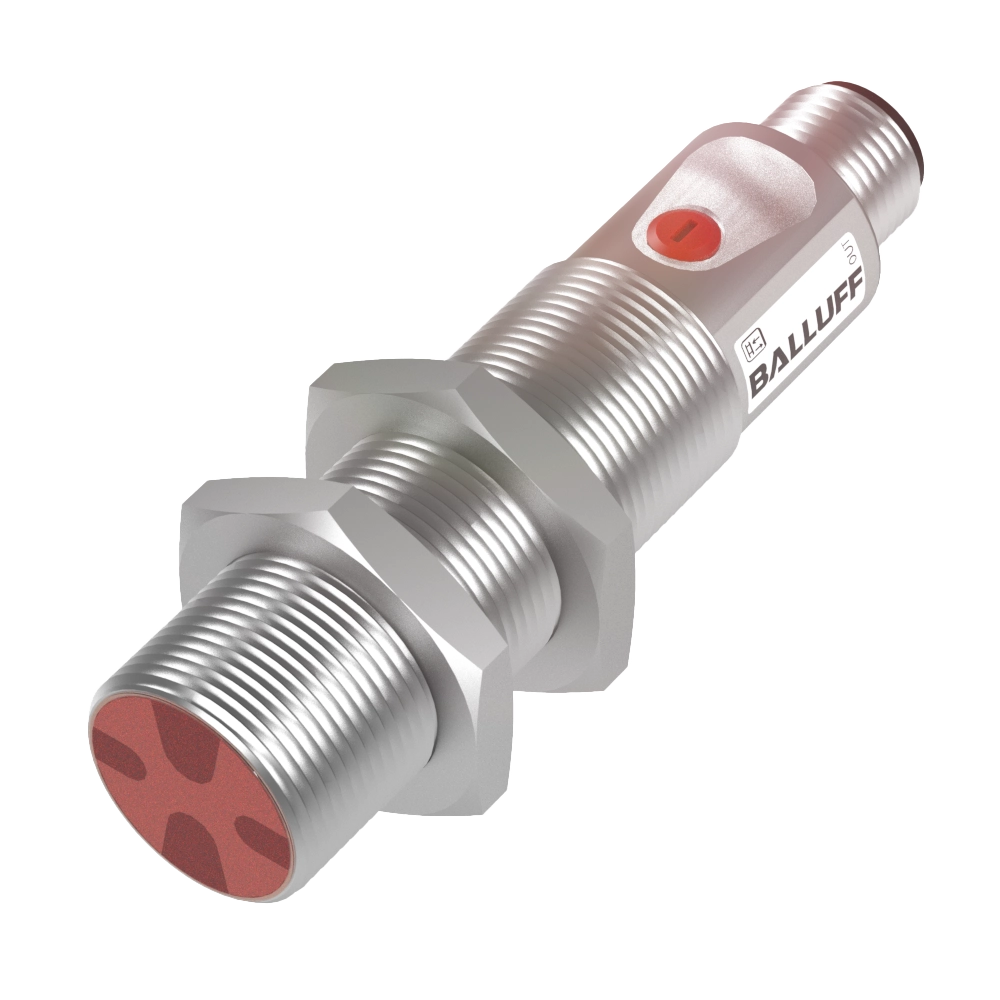

Cylindrical fiber base units
Series
18M
Dimension

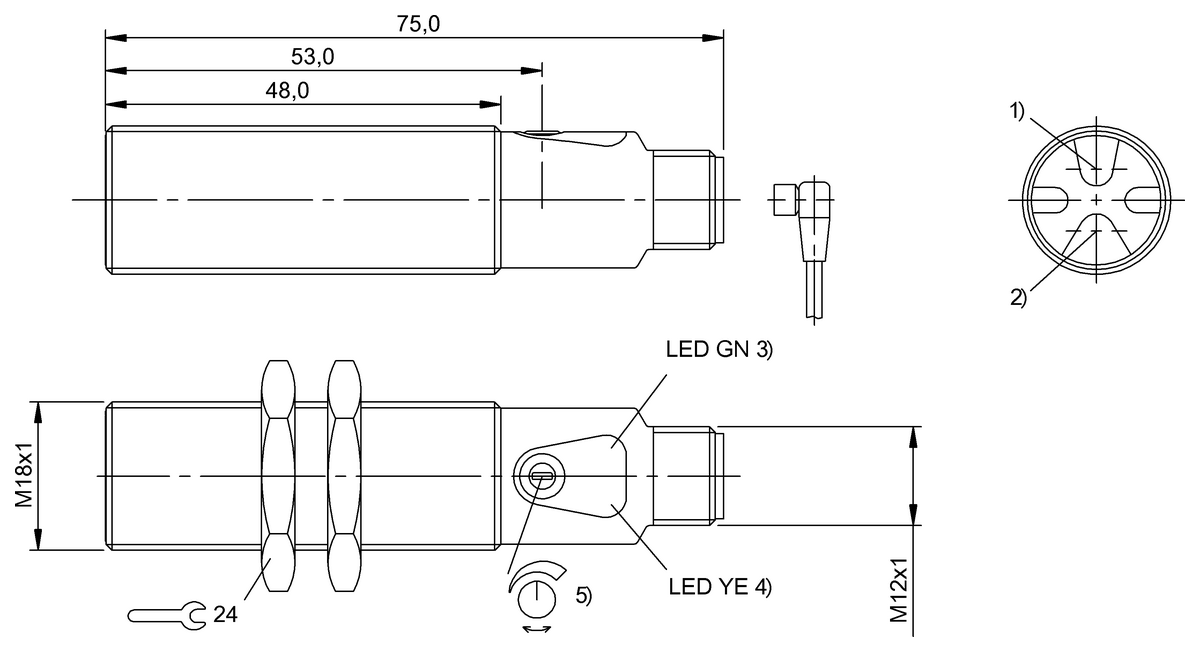

Ø 18 x 75 mm
Interface
2x PNP normally open/normally closed (NO/NC)
Principle of operation
Photoelectric sensor
Setting
Sensitivity (Sn)
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Alternative
|
|
|
|
|
|
| BFB M18M-011-P-S4 | BFB M18M-012-P-S4 | |
|
940.13 CNY
List price
|
1,164.38 CNY
List price
|
|
| Series | 18M | 18M |
|---|---|---|
| Dimension | Ø 18 x 75 mm | Ø 18 x 75 mm |
| Interface | 2x PNP normally open/normally closed (NO/NC) | 2x PNP normally open/normally closed (NO/NC) |
| Principle of operation | Photoelectric sensor | Photoelectric sensor |
| Setting | Sensitivity (Sn) | Sensitivity (Sn) |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Light type | LED infrared | LED infrared |
| Connection | Connector-Male, 4-pin | Connector-Male, 4-pin |
| Housing material | Brass, nickel-plated | Brass, nickel-plated |
| Switching frequency | 1000 Hz | 3000 Hz |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
