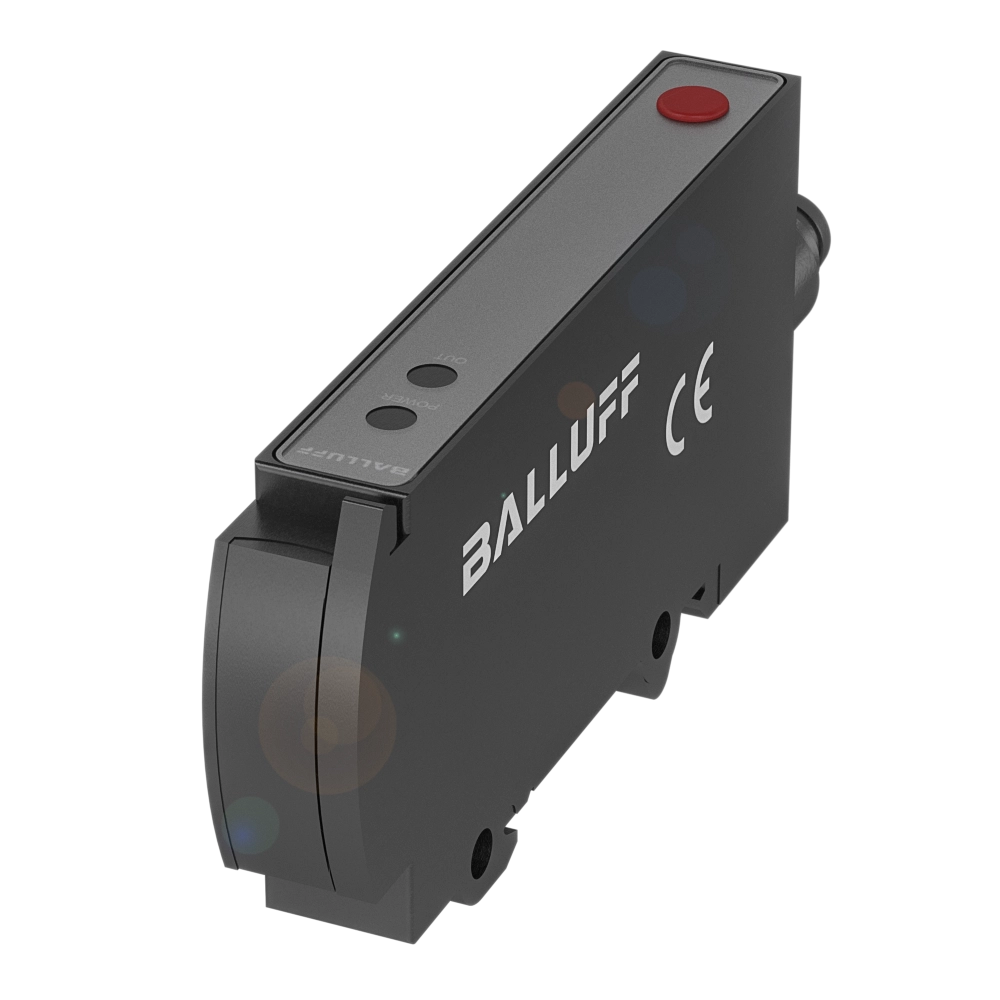

Square fiber base units
Series
75K

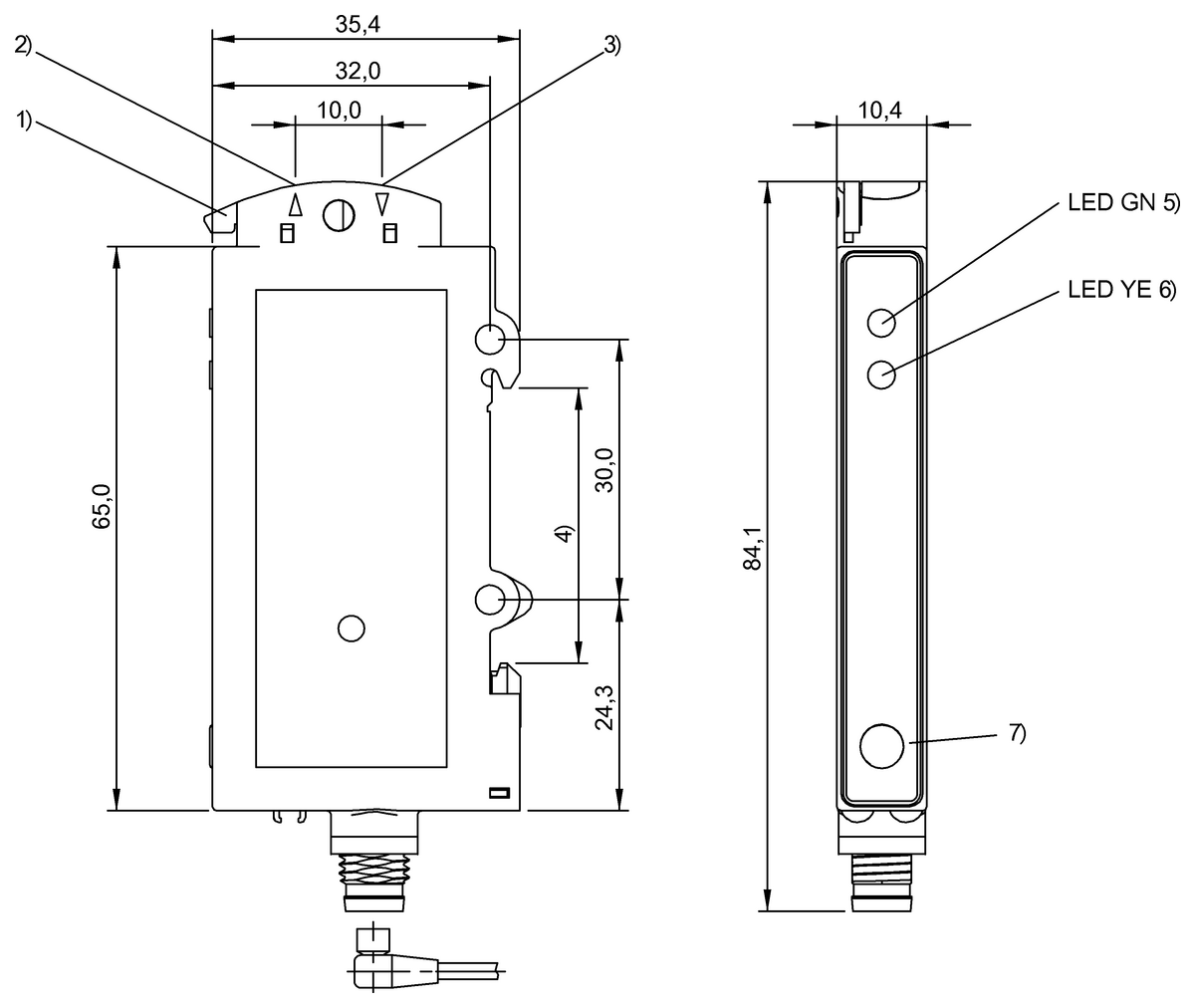

Dimension
10.4 x 35.4 x 84 mm
Interface
PNP normally open/normally closed (NO/NC)
Principle of operation
Fiber optic device
Input function
Same function as button
Key disable on/off
Key disable on/off
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Alternative
|
|
|
|
|
|
|
BFB 75K-001-P-S75
948.75 CNY
List price
|
BFB 75K-002-P-S75
1,595.63 CNY
List price
|
|
| Series | 75K | 75K |
|---|---|---|
| Dimension | 10.4 x 35.4 x 84 mm | 10.4 x 35.4 x 84 mm |
| Interface | PNP normally open/normally closed (NO/NC) | PNP normally open/normally closed (NO/NC) |
| Principle of operation | Fiber optic device | Fiber optic device |
| Input function |
Same function as button Key disable on/off |
Teach Sn Key disable on/off |
| Setting |
Light-on/dark-on Factory setting (Reset) Sensitivity (Sn) |
LCD read direction Time function Factory setting (Reset) Mode normal/fine/fast/far Duration of single pulse Rated switching distance (Sn), 2 values Display on/off Delay time Key disable on/off Light-on/dark-on Sensitivity (Sn) |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Light type | LED, red light | LED, red light |
| Connection | Connector, M8x1-Male, 4-pin | Connector, M8x1-Male, 4-pin |
| Housing material | ABS | ABS |
| Switching frequency | 1500 Hz | 8000 Hz /1000 Hz/125 Hz |
| Approval/Conformity |
CE cULus WEEE |
cULus CE WEEE |
