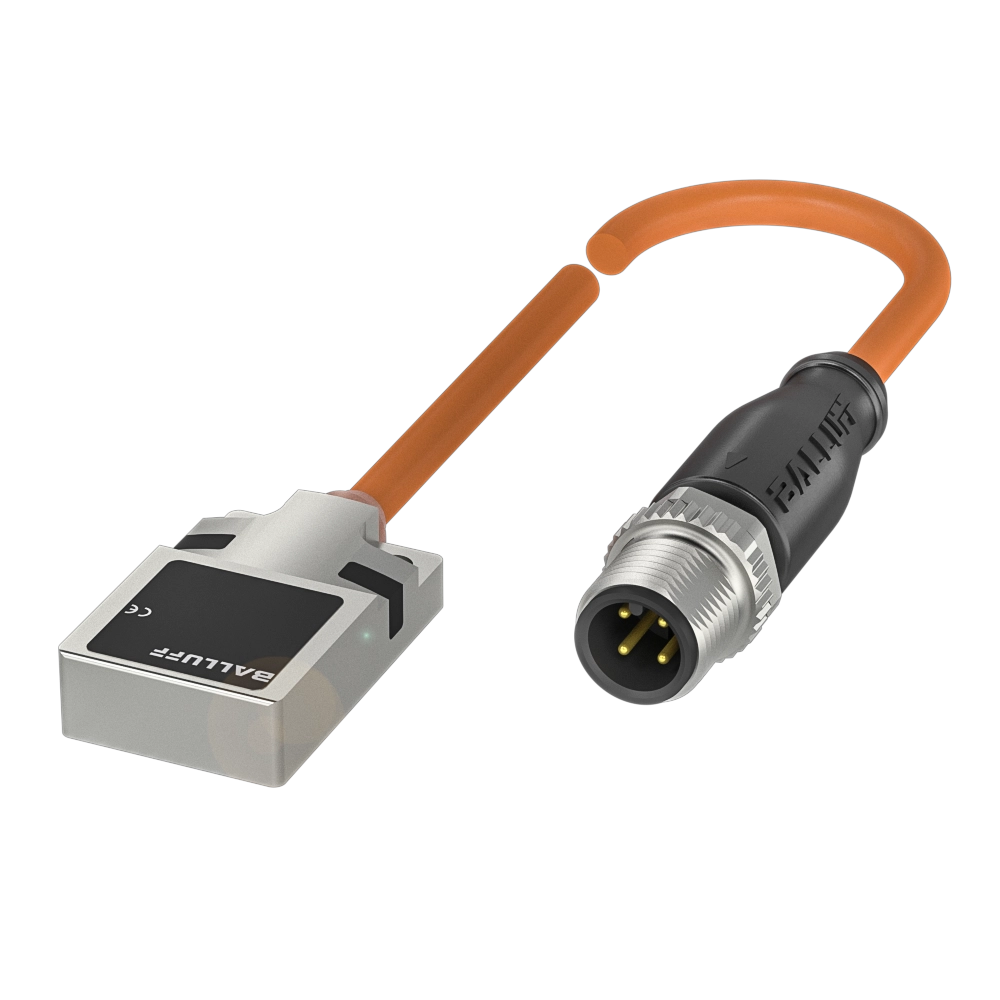

Magnetic-field-resistant inductive sensors

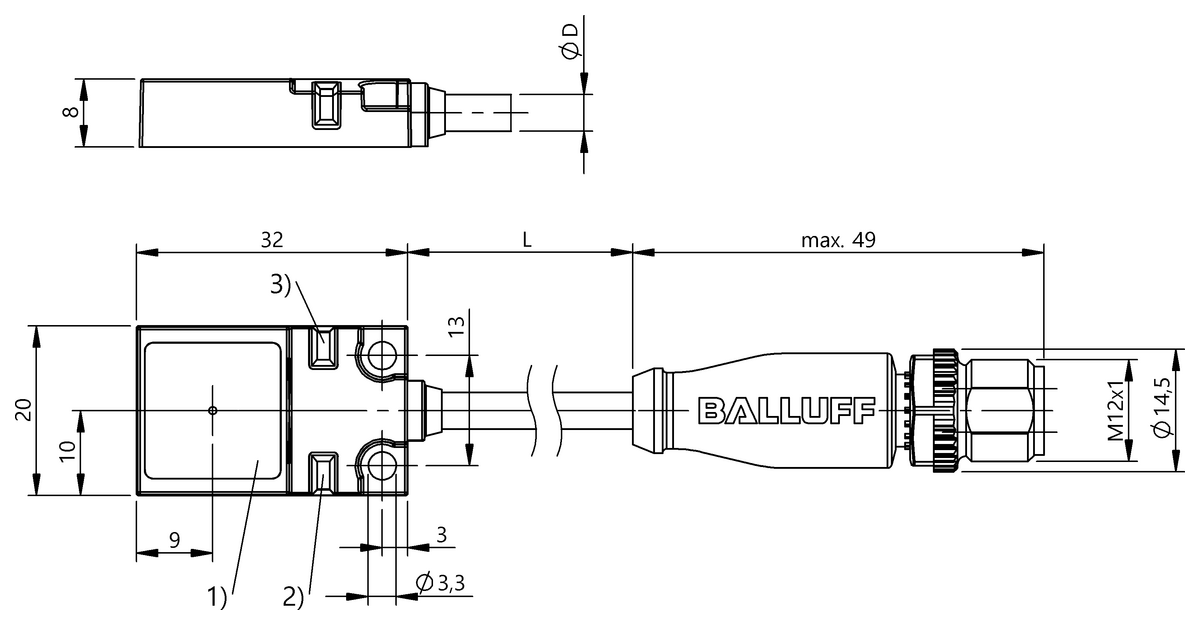

Dimension
32 x 20 x 8 mm
Style Housing
32x20x8
Installation
for flush mounting
Range
5 mm
Switching output
PNP normally open (NO)
Recommended successor products
BES048W
Magnetic-field-resistant inductive sensors
BES R01ZC-PSC50B-BZ00,5-GS04-V02
Estimated availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
Discontinued
|
Recommended alternative
|
Further alternative
|
Further alternative
|
|
|
|
|
|
|
| BES R01ZC-PSC50B-BZ01-GS04-V02 | BES R01ZC-PSC50B-BZ00,5-GS04-V02 | BES R01ZC-PSC50B-BZ00,2-GS04-V02 | BES R01ZC-PSC50B-BZ00,2-GS04-W13 | |
|
-
List price
|
999.76 CNY
List price
|
983.44 CNY
List price
|
920.08 CNY
List price
|
|
| Dimension | 32 x 20 x 8 mm | 32 x 20 x 8 mm | 32 x 20 x 8 mm | 32 x 20 x 8 mm |
|---|---|---|---|---|
| Style Housing | 32x20x8 | 32x20x8 | 32x20x8 | 32x20x8 |
| Installation | for flush mounting | for flush mounting | for flush mounting | for flush mounting |
| Range | 5 mm | 5 mm | 5 mm | 5 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 100 Hz | 100 Hz | 100 Hz | 100 Hz |
| Housing material | Zinc, Die casting | Zinc, Die casting | Zinc, Die casting | Zinc, Die casting, partly coated |
| Material sensing surface | PA 12 | PA 12 | PA 12 | ceramic coated |
| Connection | Cable with connector, M12x1-Male, 4-pin, 1.00 m, TPU | Cable with connector, M12x1-Male, 4-pin, 0.50 m, TPU | Cable with connector, M12x1-Male, 3-pin, 0.20 m, TPU | Cable with connector, M12x1-Male, 3-pin, 0.20 m, TPU |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C | -25...70 °C | -25...70 °C |
| Magnetic field immune | magnetic field immune (AC/DC) | magnetic field immune (AC/DC) | magnetic field immune (AC/DC) | - |
| IP rating | IP67 | IP67 | IP67 | - |
| Approval/Conformity |
cULus CE UKCA WEEE |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
| IP rating | - | - | - | IP67 |
| Principle of operation | - | - | - | Inductive sensor |
