Alternative products
|
|
Alternative
|
Further alternative
|
|
|
|
|
|
BES043YBES 515-362-SA4-D-TF-022,367.30 CNY |
BES04C8BES 515-362-SA4-D-TF-052,758.50 CNY |
BES04W9BES 515-362-SA4-D-TF-103,280.20 CNY |
|

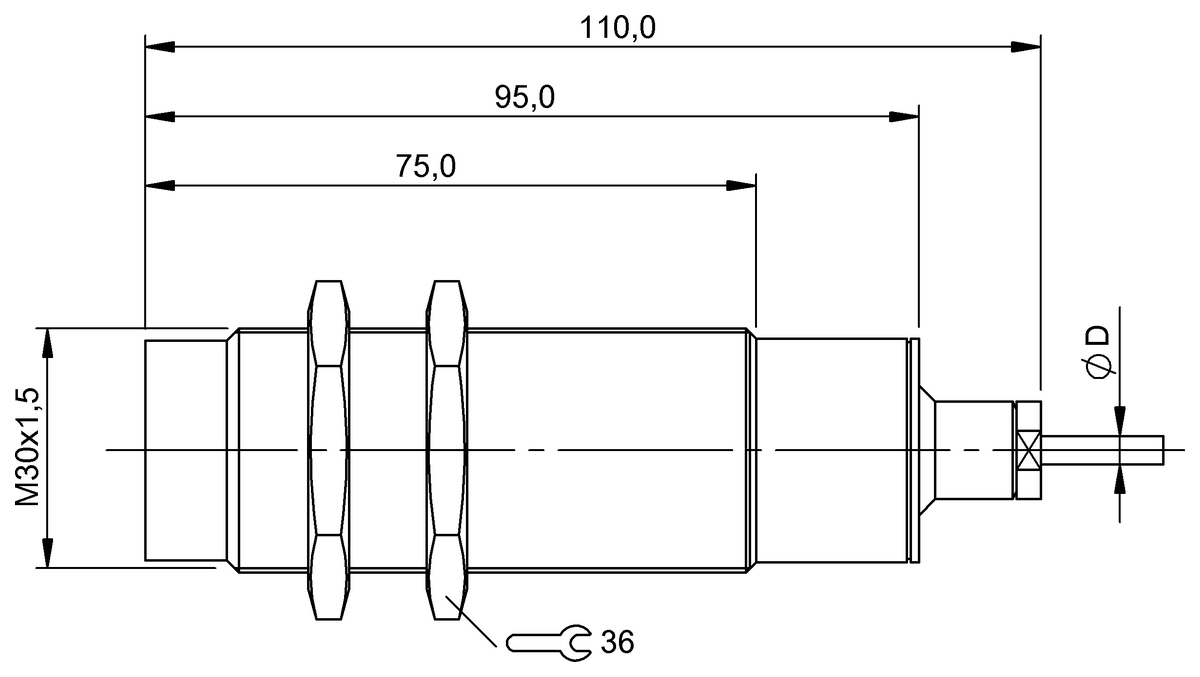

| Dimension | Ø 30 x 110 mm | Ø 30 x 110 mm | Ø 30 x 100 mm |
|---|---|---|---|
| Style Housing | M30x1.5 | M30x1.5 | M30x1.5 |
| Installation | non-flush | non-flush | non-flush |
| Range | 15 mm | 15 mm | 15 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 200 Hz | 200 Hz | 200 Hz |
| Housing material | Stainless steel | Stainless steel | 1.4571 stainless steel |
| Material sensing surface | PEEK | PEEK | PEEK |
| Connection | Cable, 2.00 m, PTFE | Cable, 5.00 m, PTFE | Cable, 10.00 m, PTFE |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...160 °C | -25...160 °C | -25...160 °C |
| IP rating | IP68 | IP68 | - |
| Approval/Conformity |
CE UKCA WEEE |
CE UKCA WEEE |
CE UKCA WEEE |
Only CAD model download is supported
