Only CAD model download is supported

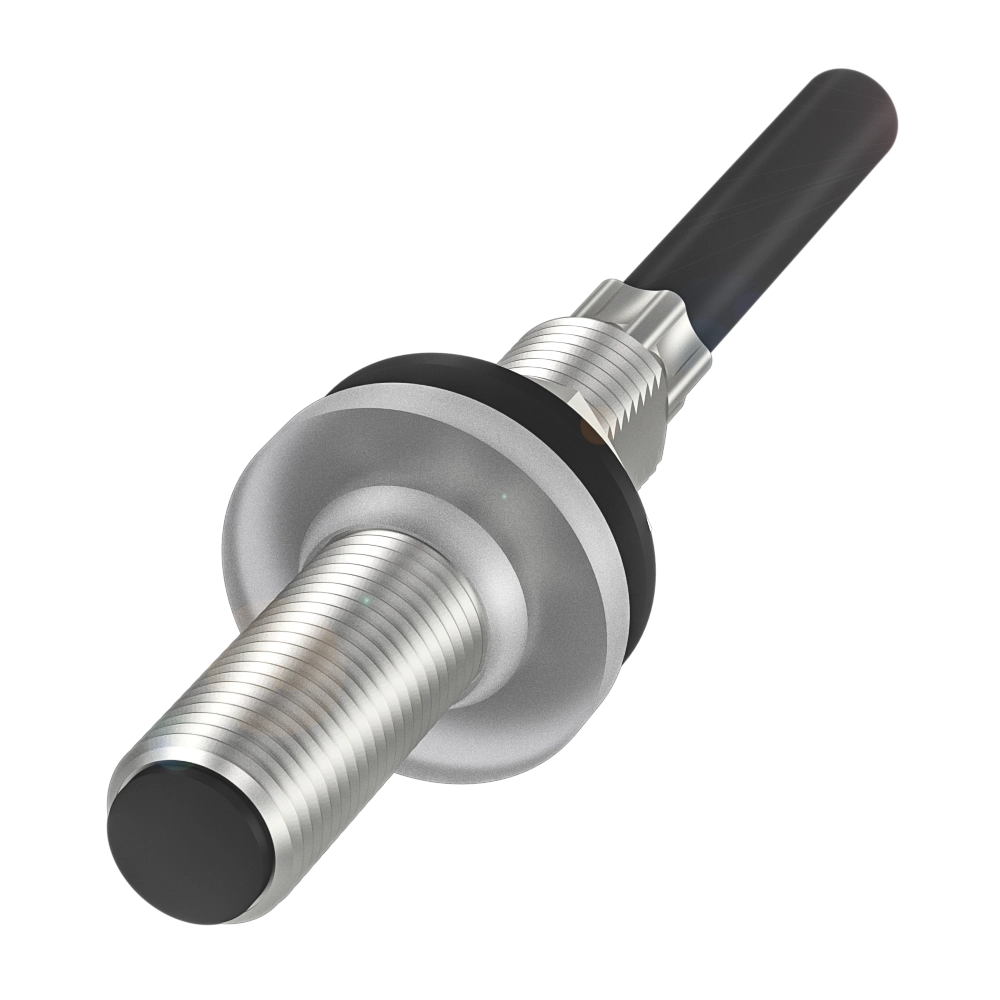

Cylindrical version for high-pressure-resistant applications

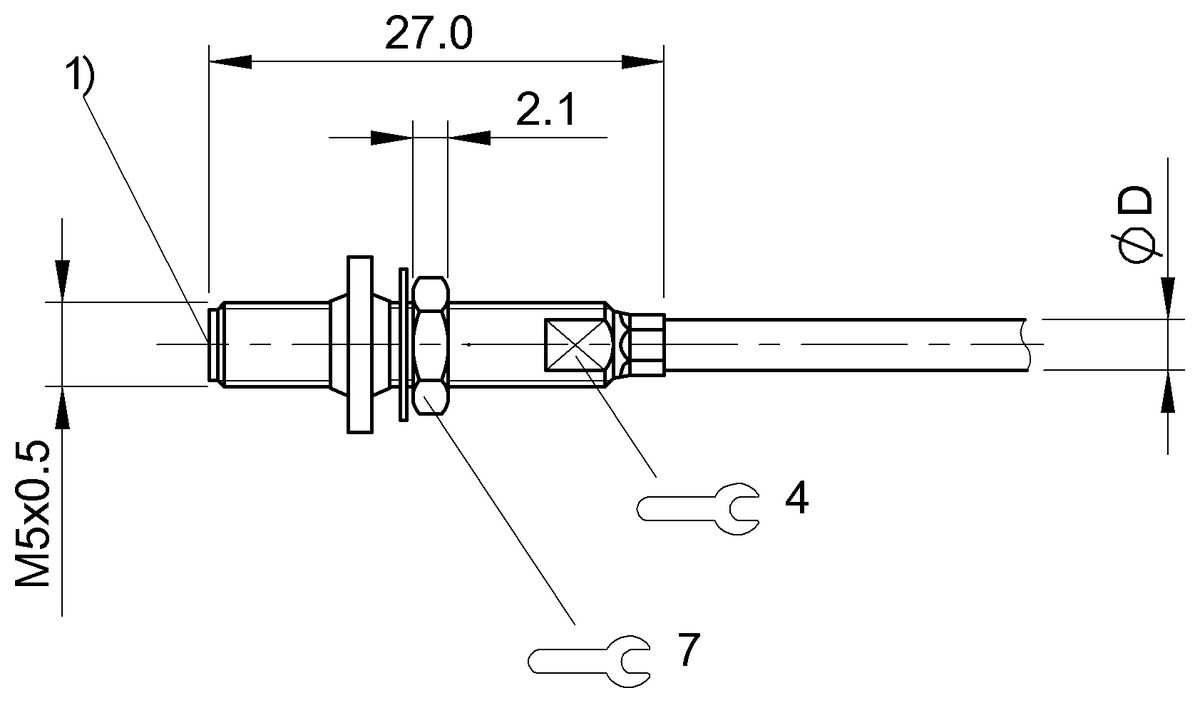

Dimension
Ø 5 x 27 mm
Style Housing
M5x0.5
Installation
for flush mounting
Range
0.8 mm
Switching output
PNP normally open (NO)
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
Alternative
|
|
![]() |
![]() |
|
BES03L7BES M05ED-PSD08B-BP02-R03736.05 CNY |
BES03LCBES M05ED-PSD08B-BP00,3-GS49-R03785.78 CNY |
|
Dimension | Ø 5 x 27 mm | Ø 5 x 27 mm |
---|---|---|
Style Housing | M5x0.5 | M5x0.5 |
Installation | for flush mounting | for flush mounting |
Range | 0.8 mm | 0.8 mm |
Switching output | PNP normally open (NO) | PNP normally open (NO) |
Switching frequency | 3000 Hz | 3000 Hz |
Housing material | Stainless steel | Stainless steel |
Material sensing surface | Ceramic | Ceramic |
Connection | Cable, 2.00 m, PUR | Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR |
Operating voltage Ub | 10...30 VDC | 10...30 VDC |
Ambient temperature | -25...70 °C | -25...70 °C |
Pressure rating max. | 100 bar | 100 bar |
IP rating | IP67 | IP67 |
Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |

Only CAD model download is supported
