BES034Y

Name: BES034Y
Brand: Balluff
SKU: BES034Y
Price: 1214.48 CNY
Availability: OutOfStock

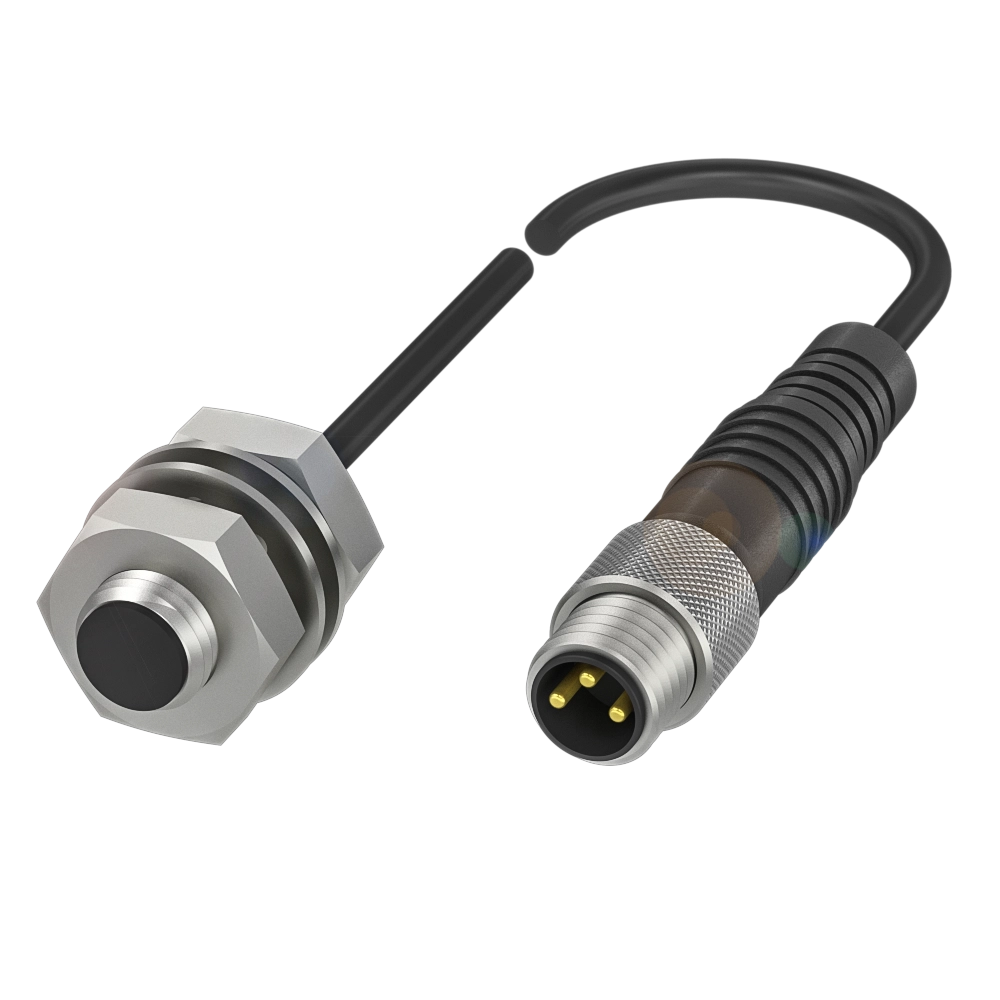

BES 516-324-SA44-C-S49-00,3

Cylindrical miniature version

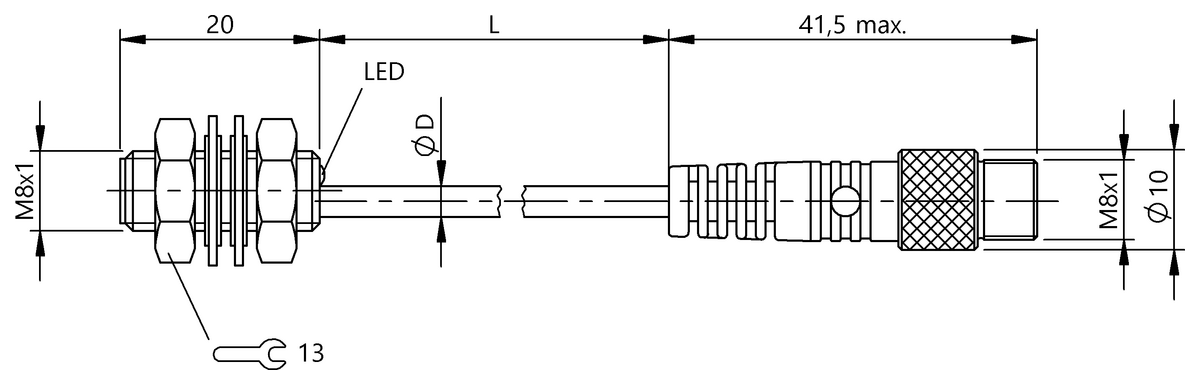

Dimension

Ø 8 x 20 mm

Style Housing

M8x1

Installation

for flush mounting

Range

1.5 mm

Switching output

PNP normally open (NO)

Do you have any questions about the product? Get in touch with us.

This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

		Alternative	Further alternative

	BES034Y	BES034W	BES0273
	BES 516-324-SA44-C-S49-00,3	BES 516-324-SA44-C-S49-00,2	BES M08EA-PSC15B-EP00,3-GS49
	1,214.48 CNY	1,214.48 CNY	888.45 CNY

Dimension	Ø 8 x 20 mm	Ø 8 x 20 mm	Ø 8 x 10 mm
Style Housing	M8x1	M8x1	M8x1
Installation	for flush mounting	for flush mounting	for flush mounting
Range	1.5 mm	1.5 mm	1.5 mm
Switching output	PNP normally open (NO)	PNP normally open (NO)	PNP normally open (NO)
Switching frequency	4000 Hz	4000 Hz	3000 Hz
Housing material	Stainless steel	Stainless steel	Stainless steel
Material sensing surface	PBT	PBT	PBT
Connection	Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR	Cable with connector, M8x1-Male, 3-pin, 0.20 m, PUR	Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR
Operating voltage Ub	10...30 VDC	10...30 VDC	10...30 VDC
Ambient temperature	-25...70 °C	-25...70 °C	-25...70 °C
IP rating	IP67	IP67	IP67
Approval/Conformity	CE UKCA cULus WEEE	CE UKCA cULus WEEE	CE UKCA cULus WEEE
