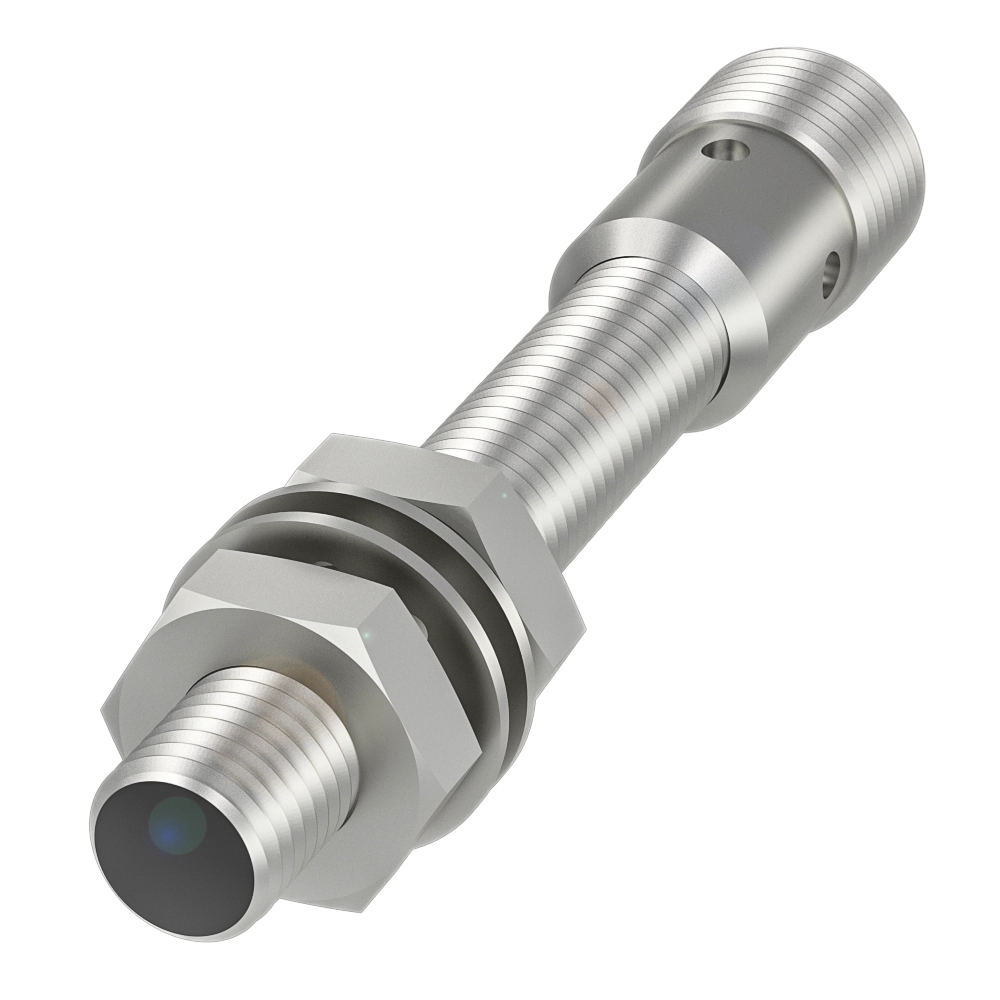

Cylindrical version for magnetic-field-resistant applications

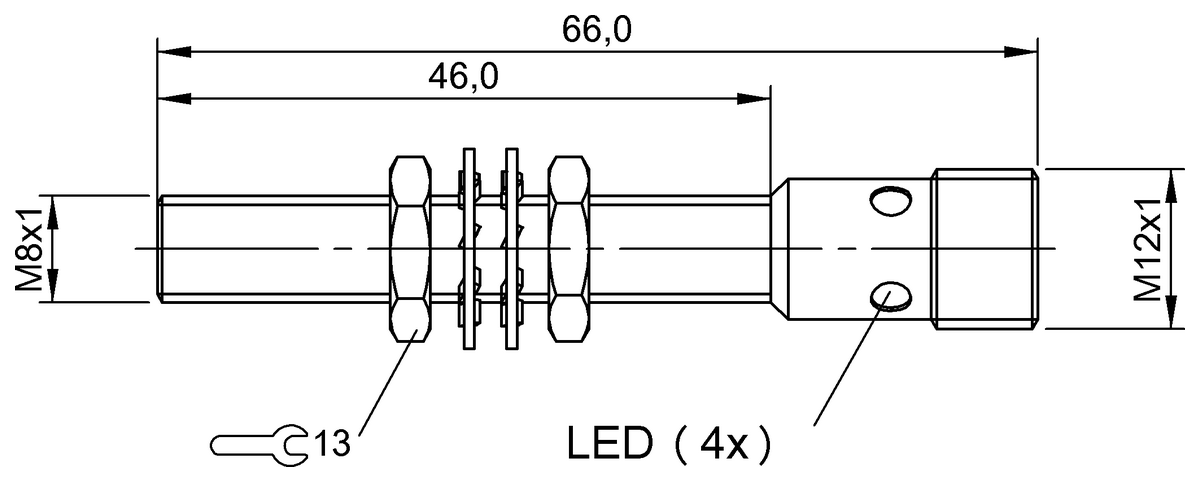

Dimension
Ø 8 x 66 mm
Style Housing
M8x1
Installation
quasi-flush
Range
3 mm
Switching output
PNP normally open (NO)
Recommended alternative
BES02W9
Inductive proximity switches and proximity sensors
BES M08MH1-PSC30B-S04G
Estimated availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Recommended alternative
|
|
|
|
|
| BES M08MH1-PSC30B-S04G-101 | BES M08MH1-PSC30B-S04G | |
|
1,127.52 CNY
List price
|
745.20 CNY
List price
|
|
| Dimension | Ø 8 x 66 mm | Ø 8 x 63 mm |
|---|---|---|
| Style Housing | M8x1 | M8x1 |
| Installation | quasi-flush | for flush mounting |
| Range | 3 mm | 3 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 1000 Hz | 1200 Hz |
| Housing material | Brass, Chrome-plated | Brass, Nickel-free coated |
| Material sensing surface | ceramic coated | PBT |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C |
| IP rating | IP67 | - |
| Approval/Conformity |
CE cULus WEEE |
CE UKCA cULus WEEE |
| IP rating | - | IP68 |
| Principle of operation | - | Inductive sensor |
