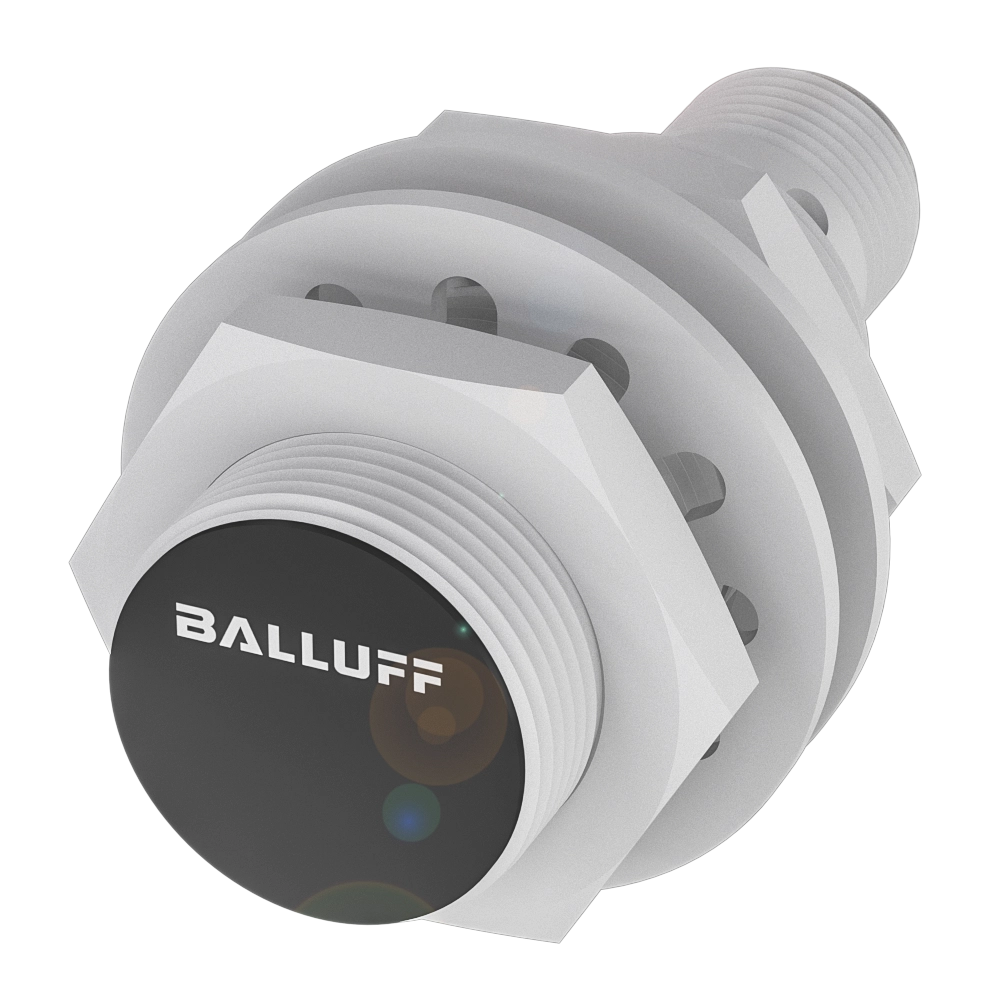

Similar Illustration
Replacement available
Only CAD model download is supported
Inductive factor 1 sensors

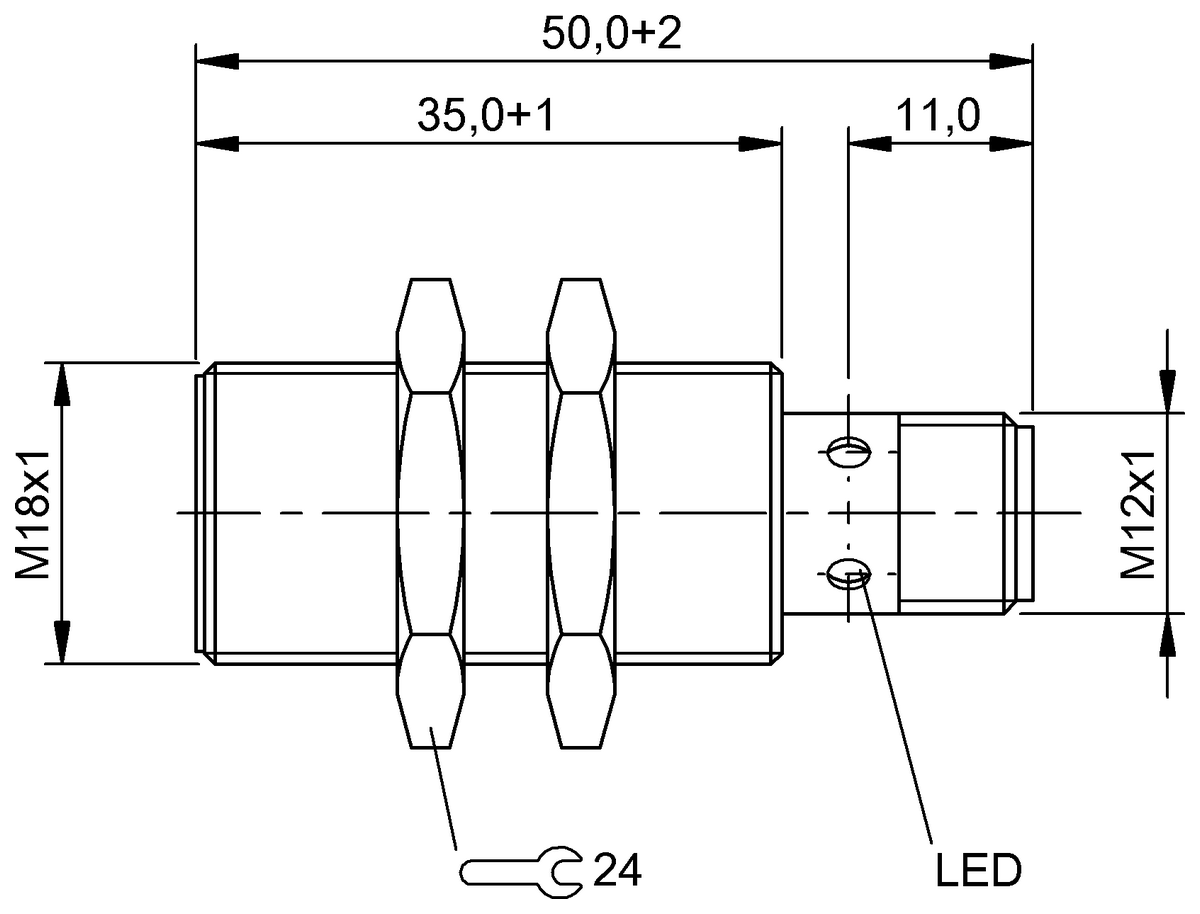

Dimension
Ø 18 x 50 mm
Style Housing
M18x1
Installation
for flush mounting
Range
5 mm
Switching output
PNP normally open (NO)
Recommended alternative
BES02K9
Inductive factor 1 sensors
BES M18MF1-PSC50A-S04G-W
Estimated availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Recommended alternative
|
Further alternative
|
|
|
|
|
|
|
| BES M18MF1-PSC50A-S04G-W01 | BES M18MF1-PSC50A-S04G-W | BES 516-326-SA96-S4-W | |
|
1,193.63 CNY
List price
|
968.18 CNY
List price
|
1,785.90 CNY
List price
|
|
| Dimension | Ø 18 x 50 mm | Ø 18 x 50 mm | Ø 18 x 65 mm |
|---|---|---|---|
| Style Housing | M18x1 | M18x1 | M18x1 |
| Installation | for flush mounting | for flush mounting | for flush mounting |
| Range | 5 mm | 5 mm | 5 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 2500 Hz | 2500 Hz | 500 Hz |
| Housing material | Brass, PTFE coated | Brass, PTFE coated | Brass, PTFE coated |
| Material sensing surface | ceramic coated | LCP/PTFE | ceramic coated |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C | -25...70 °C |
| Magnetic field immune | magnetic field immune (AC/DC) | magnetic field immune (AC/DC) | magnetic field immune (AC/DC) |
| IP rating | IP67 | IP67 | IP67 |
| Approval/Conformity |
cULus CE WEEE |
cULus CE UKCA WEEE |
CE UKCA cULus WEEE |
| Additional features | Weld immune |
Factor 1 Weld immune |
Weld immune |
