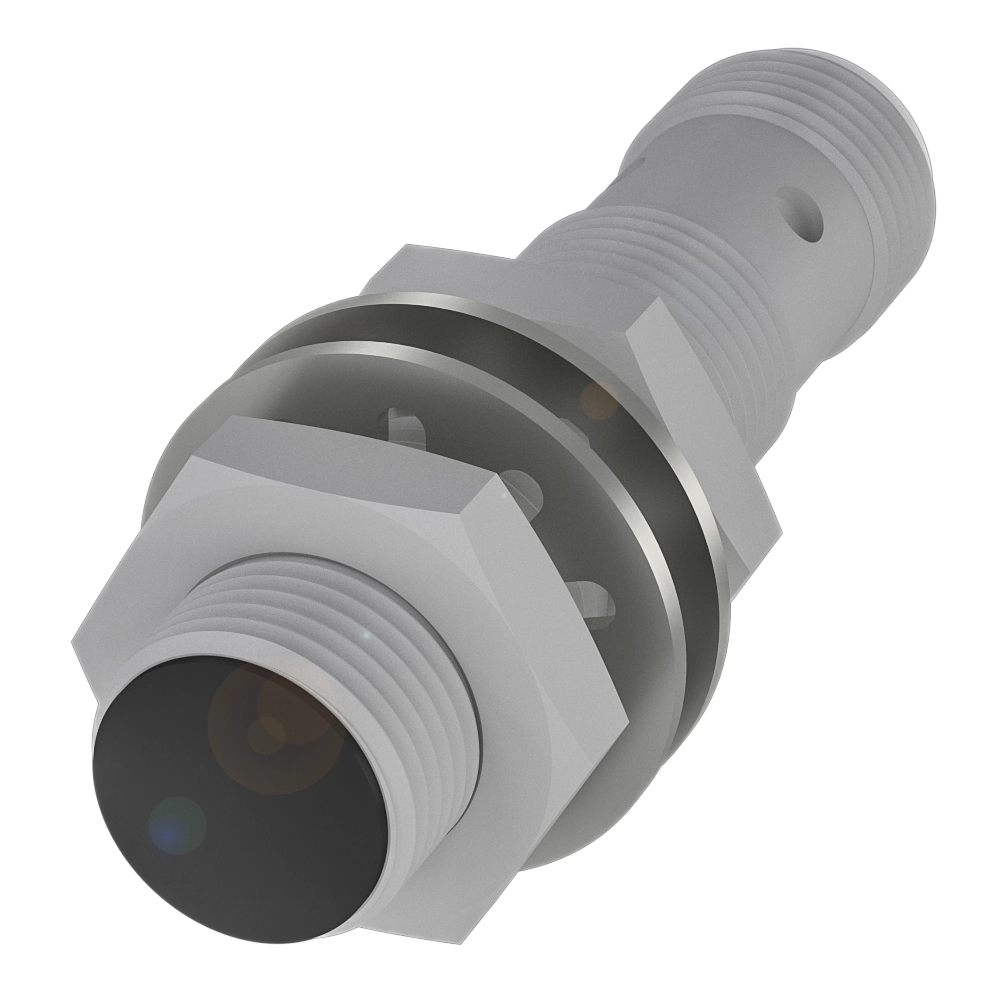

Similar Illustration
Replacement available
Only CAD model download is supported
Cylindrical version for magnetic-field-resistant applications

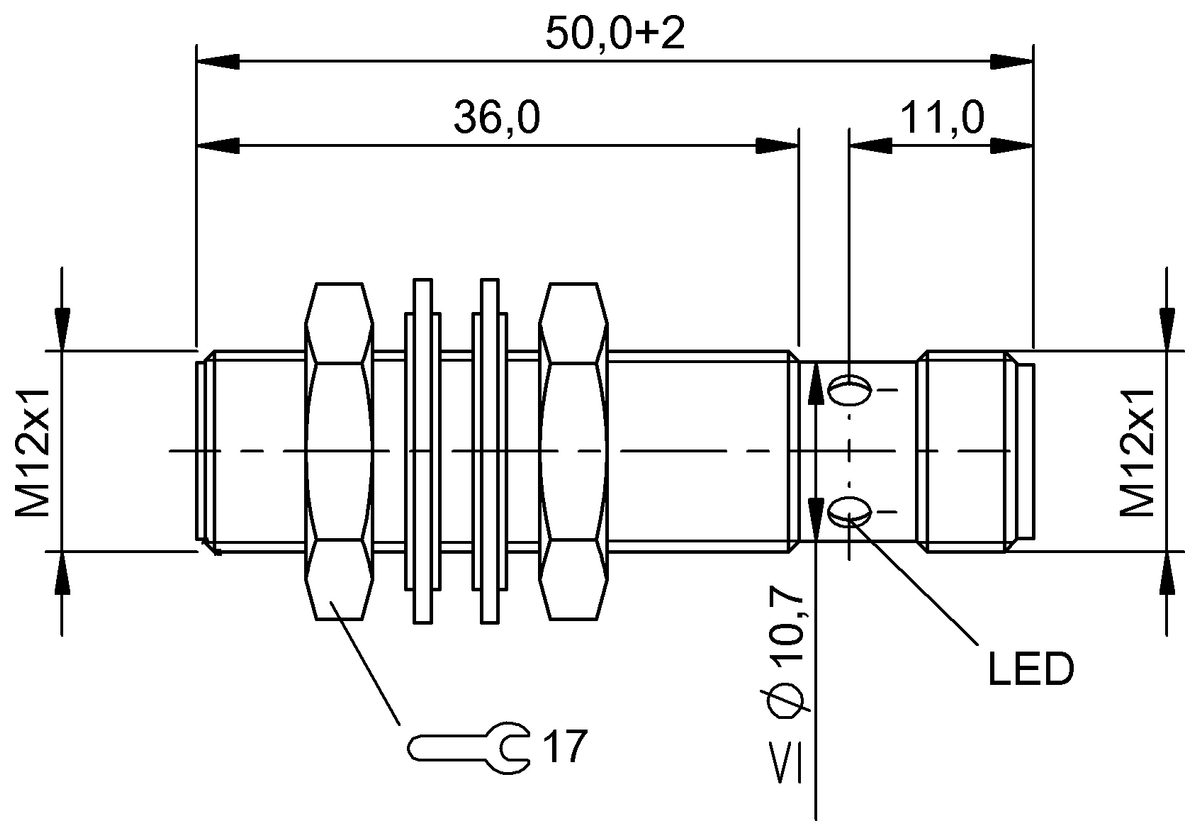

Dimension
Ø 12 x 50 mm
Style Housing
M12x1
Installation
for flush mounting
Range
3 mm
Switching output
PNP normally open (NO)
Recommended alternative
BES02JZ
Inductive factor 1 sensors
BES M12MF1-PSC30A-S04G-W
Estimated availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Recommended alternative
|
|
|
|
|
|
| BES M12MF1-PSC30A-S04G-W01 | BES M12MF1-PSC30A-S04G-W | |
|
1,123.95 CNY
List price
|
571.50 CNY
List price
|
|
| Dimension | Ø 12 x 50 mm | Ø 12 x 50 mm |
|---|---|---|
| Style Housing | M12x1 | M12x1 |
| Installation | for flush mounting | for flush mounting |
| Range | 3 mm | 3 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 2000 Hz | 2000 Hz |
| Housing material | Brass, PTFE coated | Brass, PTFE coated |
| Material sensing surface | Ceramic | LCP/PTFE |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C |
| Magnetic field immune | magnetic field immune (AC/DC) | magnetic field immune (AC/DC) |
| IP rating | IP67 | IP67 |
| Approval/Conformity |
CE cULus WEEE UKCA |
CE UKCA cULus WEEE |
| Additional features |
Weld immune Factor 1 |
Factor 1 Weld immune |
