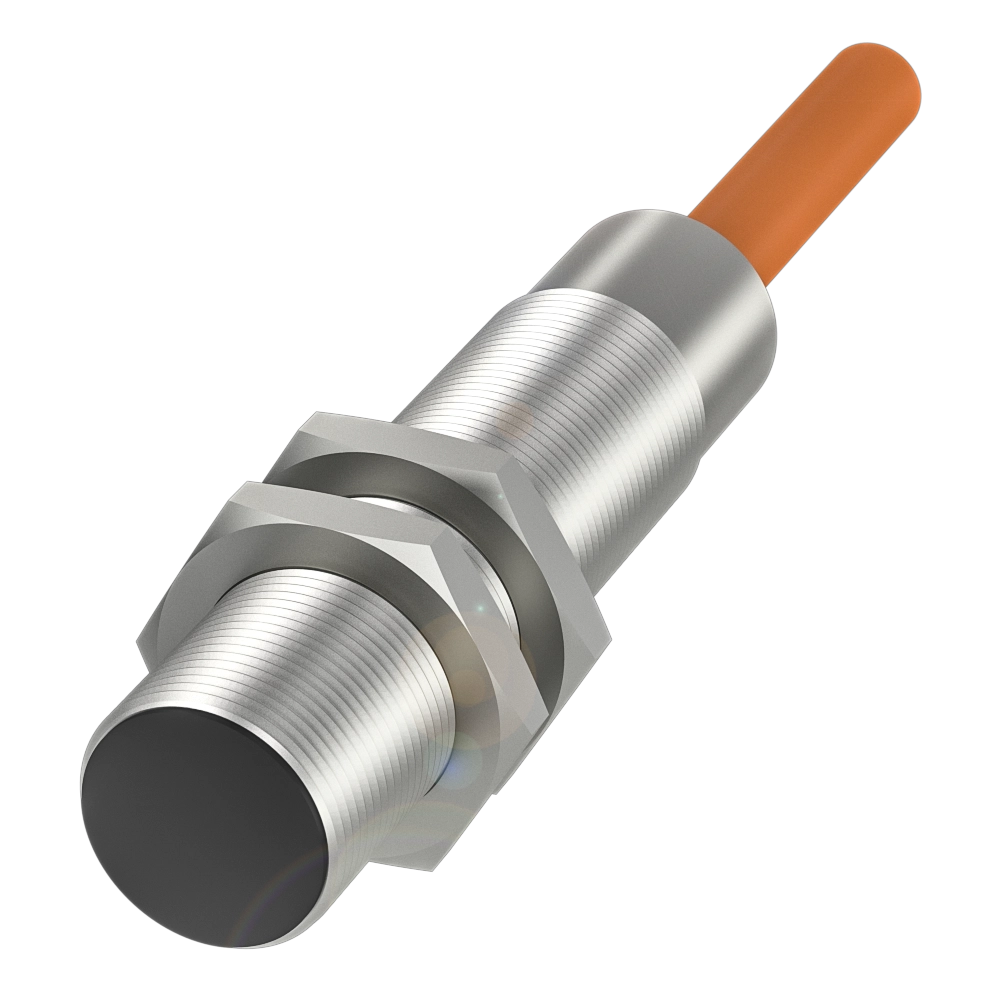

Cylindrical version for temperature-resistant applications

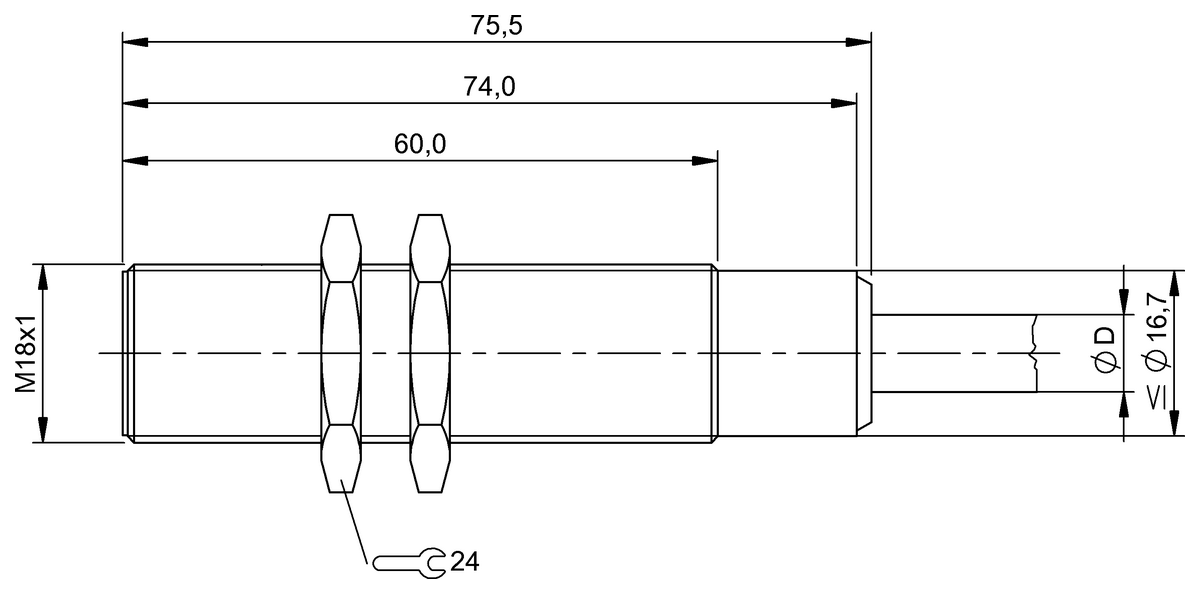

Dimension
Ø 18 x 75.5 mm
Style Housing
M18x1
Installation
for flush mounting
Range
5 mm
Switching output
PNP normally open/normally closed (NO/NC)
Do you have any questions about the product?
Alternative products
|
|
Alternative
|
|
|
|
|
|
BES02H4BES 516-105-SA1-051,233.45 CNY |
BES02H5BES 516-105-SA2-051,233.45 CNY |
|
| Dimension | Ø 18 x 75.5 mm | Ø 18 x 95.5 mm |
|---|---|---|
| Style Housing | M18x1 | M18x1 |
| Installation | for flush mounting | for flush mounting |
| Range | 5 mm | 5 mm |
| Switching output | PNP normally open/normally closed (NO/NC) | PNP normally open/normally closed (NO/NC) |
| Switching frequency | 500 Hz | 500 Hz |
| Housing material | Brass, nickel-plated | Brass, nickel-plated |
| Material sensing surface | PBT | PBT |
| Connection | Cable, 5.00 m, Silicone | Cable, 5.00 m, Silicone |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...120 °C | -25...120 °C |
| IP rating | IP60 | IP67 |
| Approval/Conformity |
CE UKCA WEEE |
CE UKCA WEEE |
