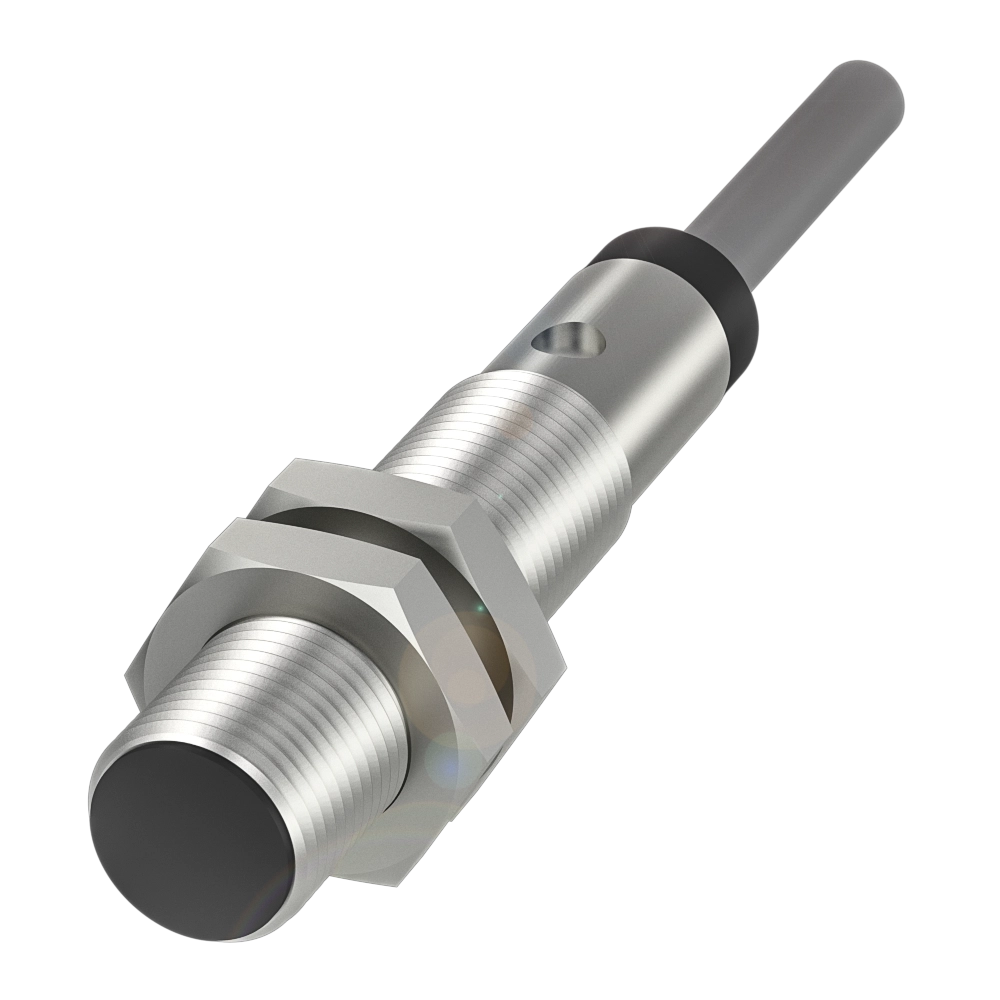

Inductive proximity switches and proximity sensors

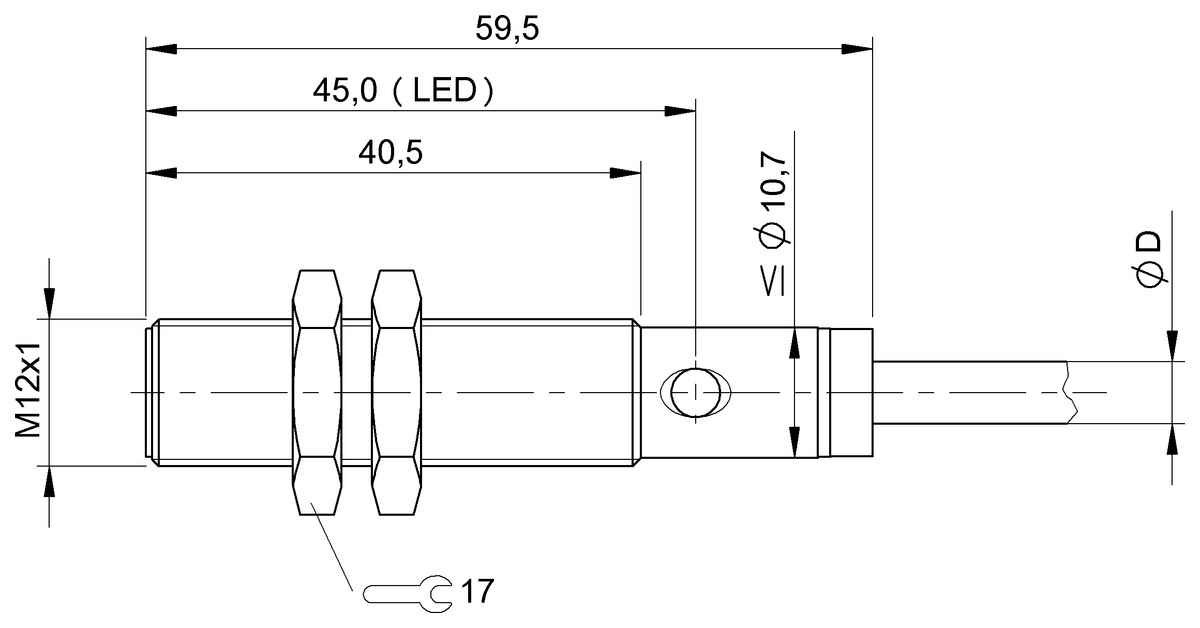

Dimension
Ø 12 x 59.5 mm
Style Housing
M12x1
Installation
for flush mounting
Range
2 mm
Switching output
PNP normally open (NO)
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
|
BES 515-325-BO-C-PU-05
566.93 CNY
List price
|
BES 516-325-AO-C-PU-05
566.93 CNY
List price
|
BES 516-300-S162-D-PU-05
1,481.03 CNY
List price
|
|
| Dimension | Ø 12 x 59.5 mm | Ø 12 x 72 mm | Ø 12 x 59 mm |
|---|---|---|---|
| Style Housing | M12x1 | M12x1 | M12x1 |
| Installation | for flush mounting | for flush mounting | for flush mounting |
| Range | 2 mm | 2 mm | 1.5 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 3000 Hz | 3000 Hz | 2000 Hz |
| Housing material | 1.4305 stainless steel | Stainless steel | 1.4104 stainless steel |
| Material sensing surface | PA 12 | PA 12 | EP |
| Connection | Cable, 5.00 m, PUR | Cable, 5.00 m, PUR | Cable, 5.00 m, PUR |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C | -25...80 °C |
| IP rating | IP68 | IP68 | - |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
CE UKCA WEEE |
