Alternative products
|
|
Alternative
|
Further alternative
|
|
|
|
|
|
BES0270BES M08EA-POD15B-S49G772.58 CNY |
BES0277BES M08EA-PSD15B-S49G772.58 CNY |
BES01LRBES 516-377-S49-C596.85 CNY |
|

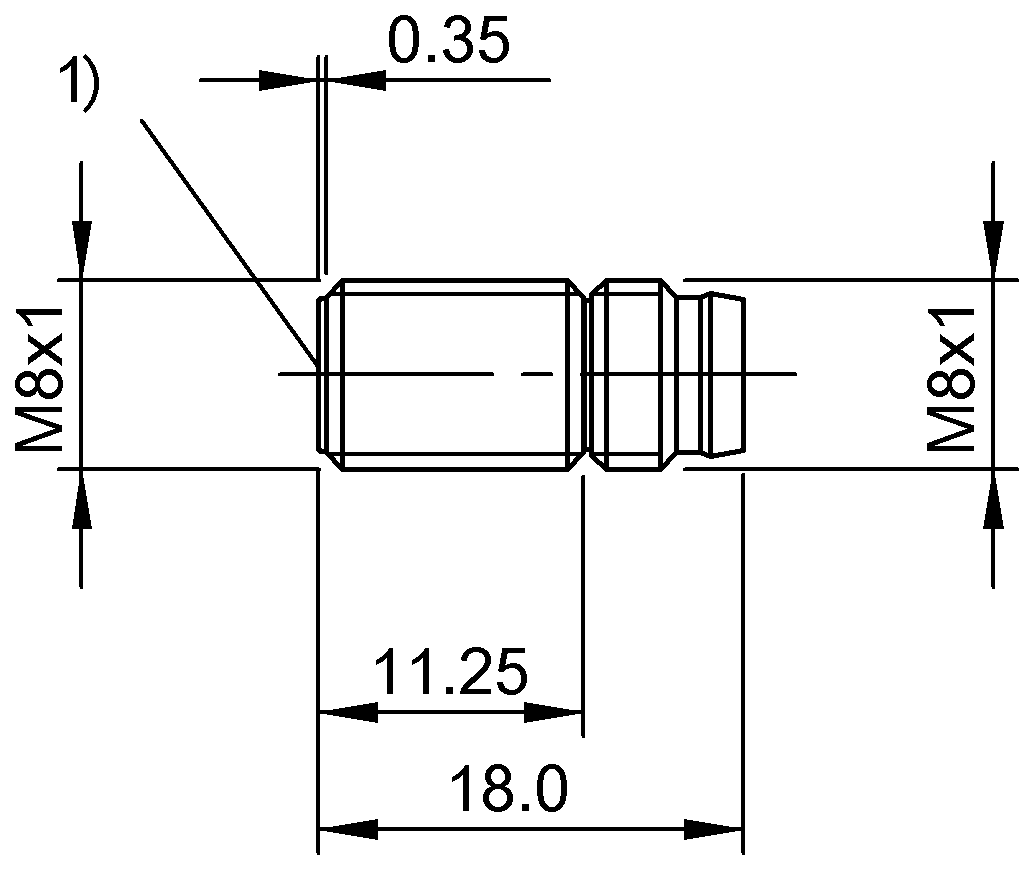

| Dimension | Ø 8 x 18 mm | Ø 8 x 18 mm | Ø 8 x 55 mm |
|---|---|---|---|
| Style Housing | M8x1 | M8x1 | M8x1 |
| Installation | for flush mounting | for flush mounting | for flush mounting |
| Range | 1.5 mm | 1.5 mm | 1.5 mm |
| Switching output | PNP normally closed (NC) | PNP normally open (NO) | PNP normally closed (NC) |
| Switching frequency | 3000 Hz | 3000 Hz | 3000 Hz |
| Housing material | Stainless steel | Stainless steel | Stainless steel |
| Material sensing surface | PBT | PBT | PBT |
| Connection | Connector, M8x1-Male, 3-pin | Connector, M8x1-Male, 3-pin | Connector, M8x1-Male, 3-pin |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C | -40...85 °C |
| IP rating | IP67 | IP67 | IP68 |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
Only CAD model download is supported
