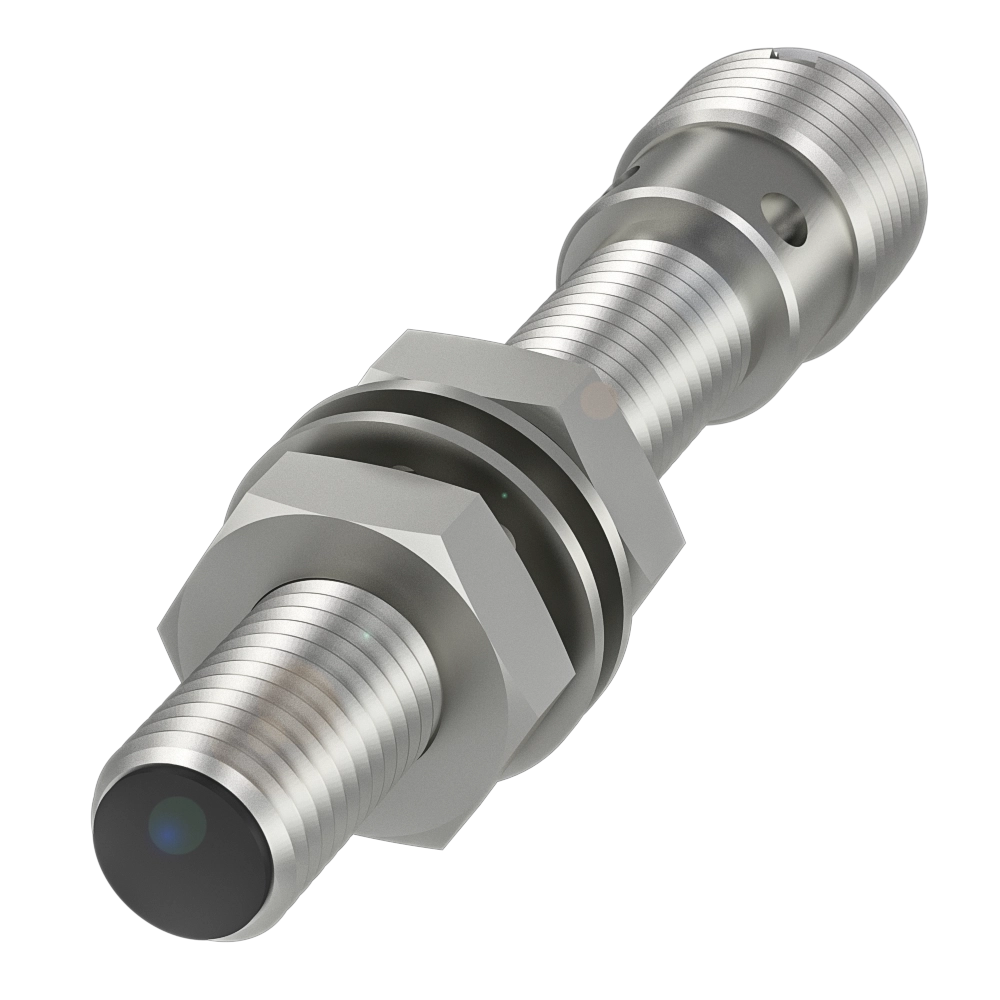

Cylindrical version

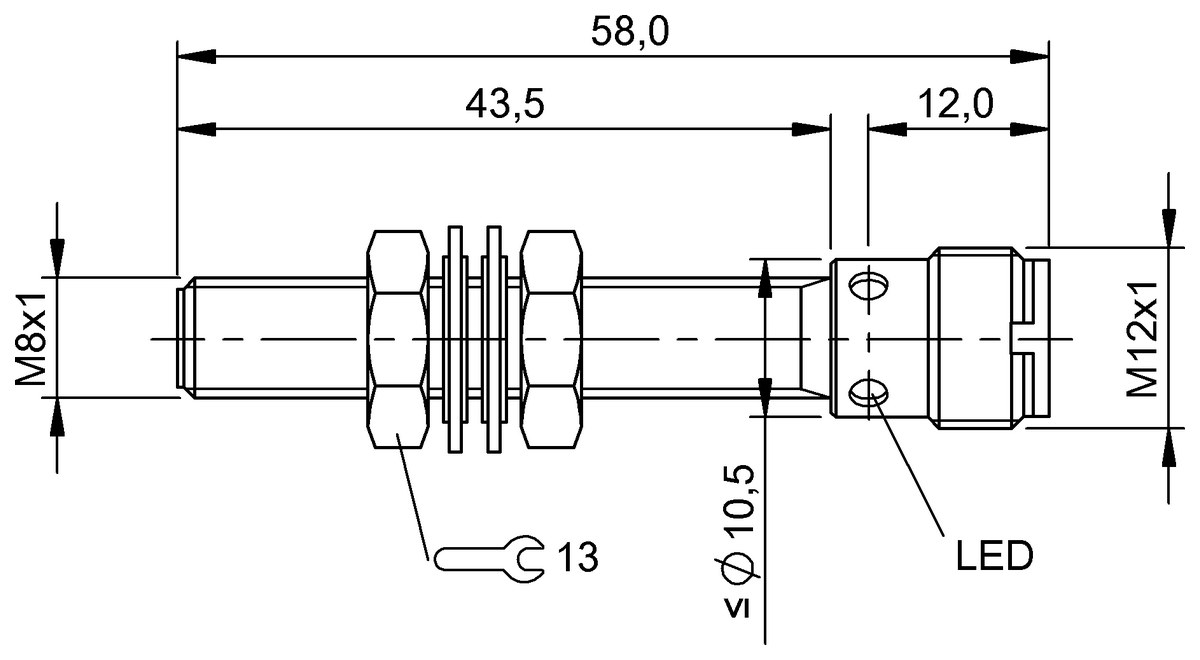

Dimension
Ø 8 x 58 mm
Style Housing
M8x1
Installation
for flush mounting
Range
1.5 mm
Switching output
PNP normally open (NO)
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
|
BES M08EH-PSC15B-S04G
596.85 CNY
List price
|
BES M08EH-PSC20B-S04G
627.68 CNY
List price
|
BES M08EG1-PSC15A-S04G-W
662.03 CNY
List price
|
|
| Dimension | Ø 8 x 58 mm | Ø 8 x 58 mm | Ø 8 x 57 mm |
|---|---|---|---|
| Style Housing | M8x1 | M8x1 | M8x1 |
| Installation | for flush mounting | for flush mounting | for flush mounting |
| Range | 1.5 mm | 2 mm | 1.5 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 5000 Hz | 1500 Hz | 2000 Hz |
| Housing material | Stainless steel | Stainless steel | 1.4301 stainless steel, PTFE coated |
| Material sensing surface | PBT | PBT | PBT/PTFE |
| Connection | Connector, M12x1-Male, 3-pin | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C | -25...70 °C |
| IP rating | IP68 | IP68 | - |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
CE WEEE |
