Alternative products
|
|
Alternative
|
Further alternative
|
|
|
|
|
|
BES01H6BES 516-356-S4-C507.15 CNY |
BES02FCBES 515-356-S4-C507.15 CNY |
BES018YBES 516-3019-S4-C507.15 CNY |
|

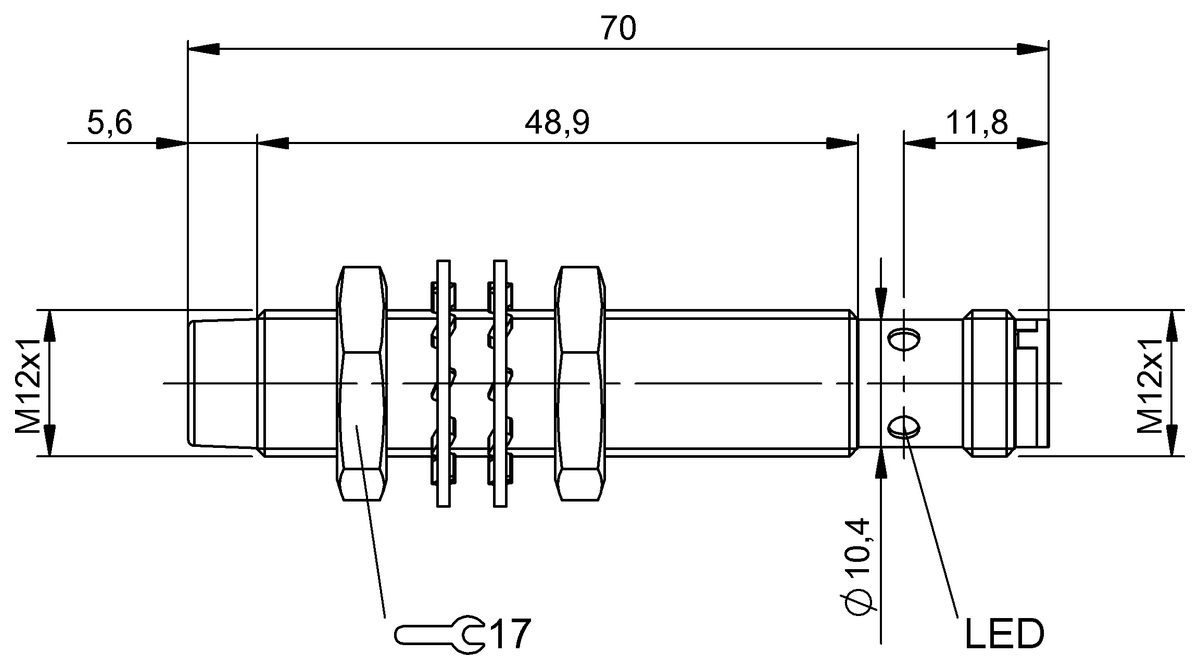

| Dimension | Ø 12 x 70 mm | Ø 12 x 70 mm | Ø 12 x 70 mm |
|---|---|---|---|
| Style Housing | M12x1 | M12x1 | M12x1 |
| Installation | non-flush | non-flush | non-flush |
| Range | 4 mm | 4 mm | 4 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) | PNP normally closed (NC) |
| Switching frequency | 2500 Hz | 1200 Hz | 2500 Hz |
| Housing material | Stainless steel | Stainless steel | Stainless steel |
| Material sensing surface | PBT | PA 12 | PBT |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -40...85 °C | -25...70 °C | -40...85 °C |
| IP rating | IP68 | IP68 | IP68 |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
Only CAD model download is supported
