Similar Illustration

BES006Y

Name: BES006Y
Brand: Balluff
SKU: BES006Y
Price: 360.45 CNY
Availability: OutOfStock

BES M18MG-PSC16F-BP02

Cylindrical version

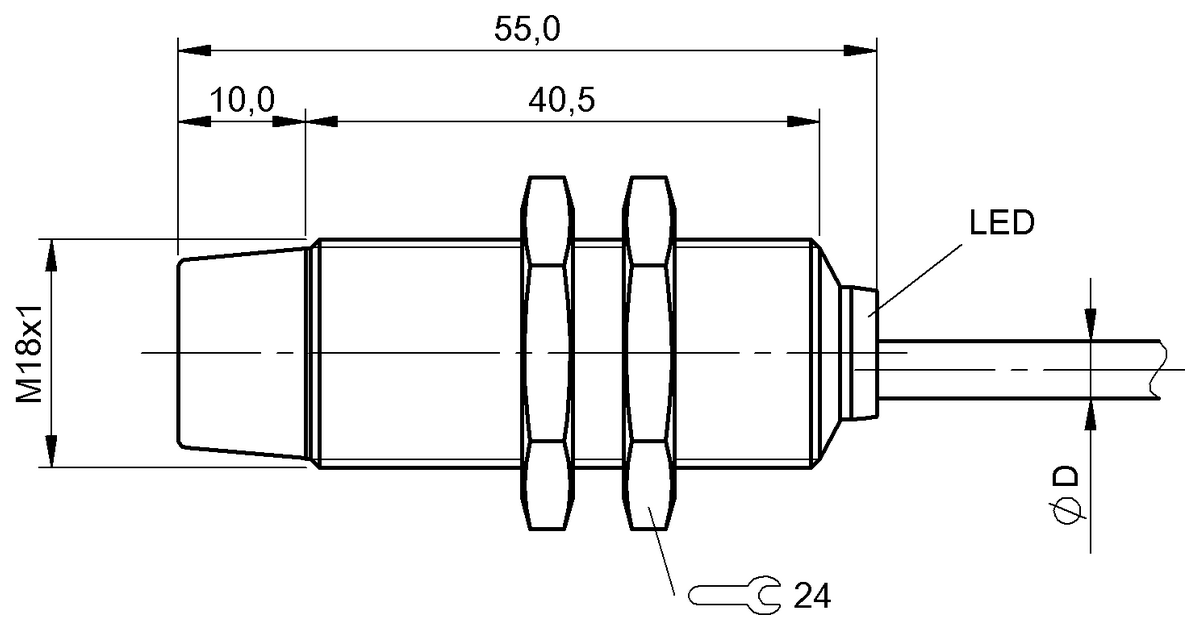

Dimension

Ø 18 x 55 mm

Style Housing

M18x1

Installation

non-flush

Range

16 mm

Switching output

PNP normally open (NO)

Do you have any questions about the product?

This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

		Alternative	Further alternative

	BES006Y BES M18MG-PSC16F-BP02 360.45 CNY	BES006Z BES M18MG-PSC16F-BV02 360.45 CNY	BES05YK BES M18MG-PSC16F-BP00,15-Z07 521.63 CNY
Dimension	Ø 18 x 55 mm	Ø 18 x 55 mm	Ø 18 x 55 mm
Style Housing	M18x1	M18x1	M18x1
Installation	non-flush	non-flush	non-flush
Range	16 mm	16 mm	16 mm
Switching output	PNP normally open (NO)	PNP normally open (NO)	PNP normally open (NO)
Switching frequency	430 Hz	430 Hz	430 Hz
Housing material	Brass, Nickel-free coated	Brass, Nickel-free coated	Brass, Nickel-free coated
Material sensing surface	PBT	PBT	PBT
Connection	Cable, 2.00 m, PUR	Cable, 2.00 m, PVC	Cable with connector, DEUTSCH DT04-4P-CE02, 4-pin, 0.15 m, TPU
Operating voltage Ub	10...30 VDC	10...30 VDC	10...30 VDC
Ambient temperature	-40...85 °C	-40...85 °C	-40...85 °C
IP rating	IP68	IP68	IP68
Approval/Conformity	CE UKCA cULus WEEE	CE UKCA cULus WEEE	CE UKCA cULus WEEE
