Only CAD model download is supported
Cylindrical version

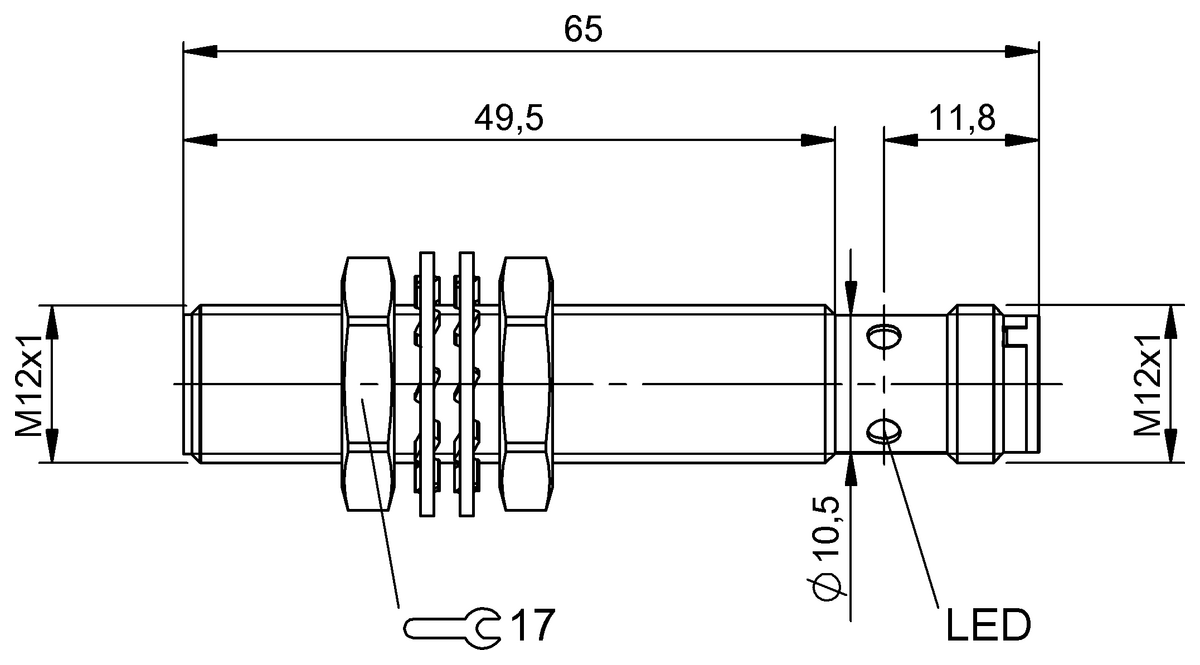

Dimension
Ø 12 x 65 mm
Style Housing
M12x1
Installation
for flush mounting
Range
4 mm
Switching output
PNP normally closed (NC)
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
Available
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
BES005NBES M12MI-POC40B-S04G240.90 CNY |
BES05F0BES M12MI-PAC40B-S04G612.23 CNY |
BES02FTBES M12EI-POC40B-S04G537.08 CNY |
|
| Dimension | Ø 12 x 65 mm | Ø 12 x 65 mm | Ø 12 x 65 mm |
|---|---|---|---|
| Style Housing | M12x1 | M12x1 | M12x1 |
| Installation | for flush mounting | for flush mounting | for flush mounting |
| Range | 4 mm | 4 mm | 4 mm |
| Switching output | PNP normally closed (NC) | PNP normally open/normally closed (NO/NC) | PNP normally closed (NC) |
| Switching frequency | 2500 Hz | 3000 Hz | 1000 Hz |
| Housing material | Brass, Nickel-free coated | Brass | 1.4404 stainless steel |
| Material sensing surface | PBT | PBT | LCP |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C | -25...85 °C |
| IP rating | IP68 | IP68, according to BWN Pr 20 | IP68 |
| Approval/Conformity |
CE UKCA cULus WEEE |
cULus CE UKCA WEEE |
cULus CE UKCA WEEE |
