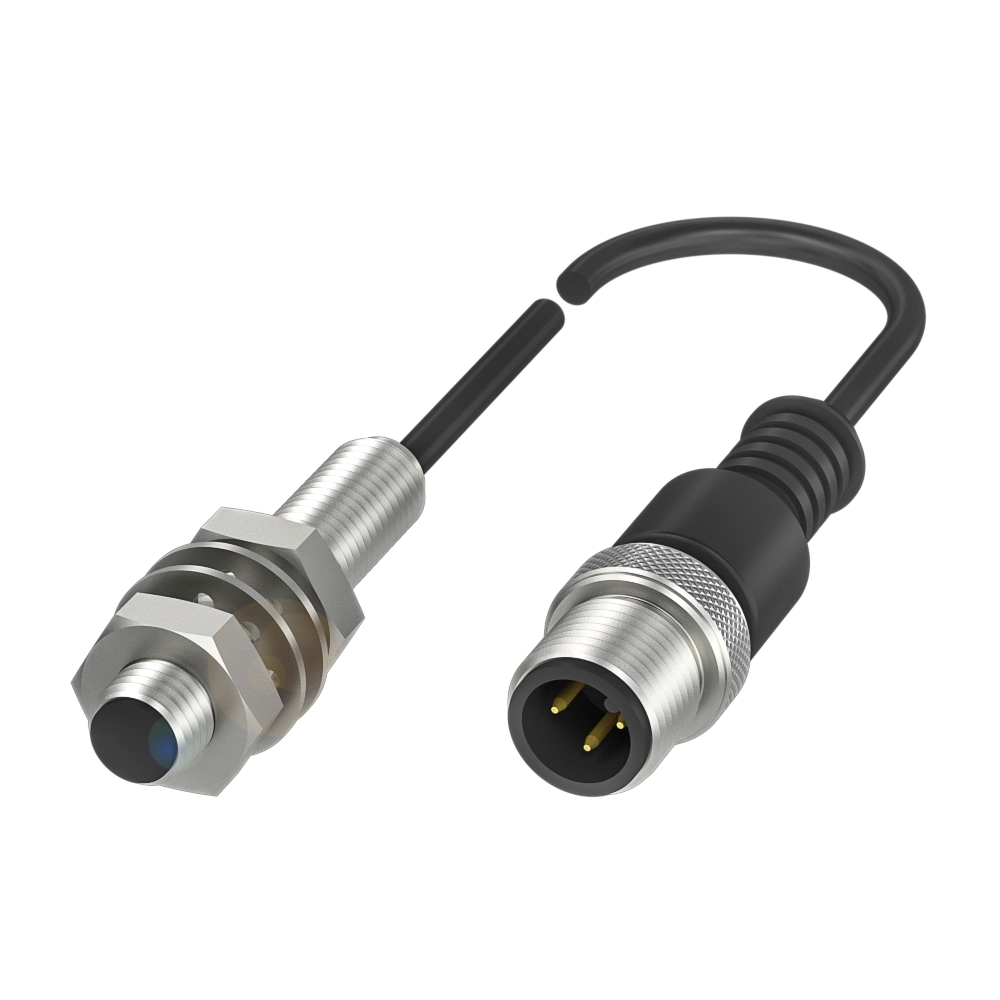

Inductive proximity switches and proximity sensors

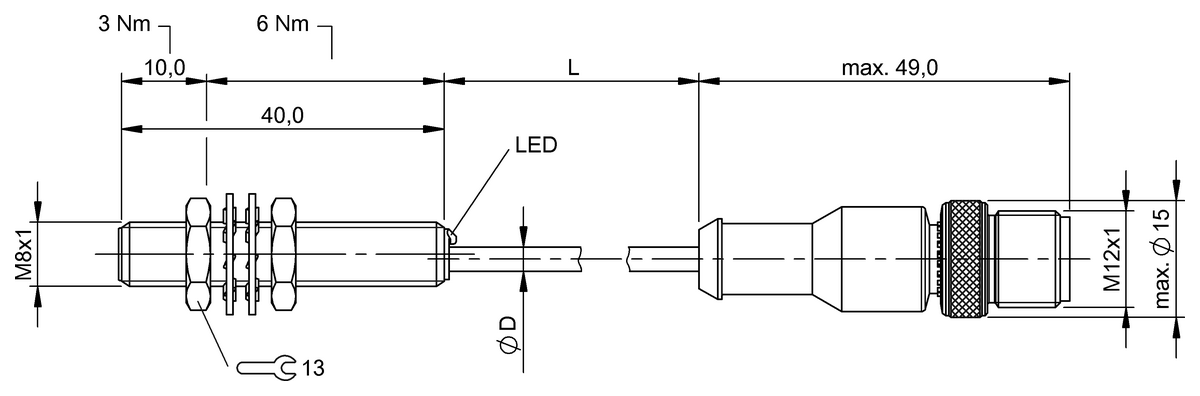

Dimension
Ø 8 x 40 mm
Style Housing
M8x1
Installation
for flush mounting
Range
2 mm
Switching output
polarized normally open (NO)
Product Features
Cable, 2.00 m, PUR
Cable, 2.00 m, PVC
Cable, 3.00 m, PUR
Cable, 5.00 m, PUR
Cable with connector, M12x1-Male, 4-pin, 0.30 m, PUR
Do you have any questions about the product?
Alternative products
|
Available
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
BES001ZBES M08MG-GSC20B-BP00,3-GS04405.75 CNY |
BES060HBES M08MG-USC20B-BP00,2-GS04-U03436.50 CNY |
BES048UBES M08MG-GSC20B-BZ00,3-GS04-U02947.25 CNY |
|
| Dimension | Ø 8 x 40 mm | Ø 8 x 40 mm | Ø 8 x 40 mm |
|---|---|---|---|
| Style Housing | M8x1 | M8x1 | M8x1 |
| Installation | for flush mounting | for flush mounting | for flush mounting |
| Range | 2 mm | 2 mm | 2 mm |
| Switching output | polarized normally open (NO) | Non-polarized normally open (NO) | polarized normally open (NO) |
| Switching frequency | 1500 Hz | 1500 Hz | 1500 Hz |
| Housing material | Brass, Nickel-free coated | Brass, Nickel-free coated | Brass, PTFE coated |
| Material sensing surface | PBT | PBT | LCP/PTFE |
| Connection | Cable with connector, M12x1-Male, 4-pin, 0.30 m, PUR | Cable with connector, M12x1-Male, 4-pin, 0.20 m, PUR | Cable with connector, M12x1-Male, 4-pin, 0.30 m, TPU |
| Operating voltage Ub | 10...36 VDC | 10...30 VDC | 10...36 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C | -25...70 °C |
| IP rating | IP67 | IP67 | IP67 |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE WEEE |
CE UKCA cULus WEEE |
