Cubic version with teachable switching distance

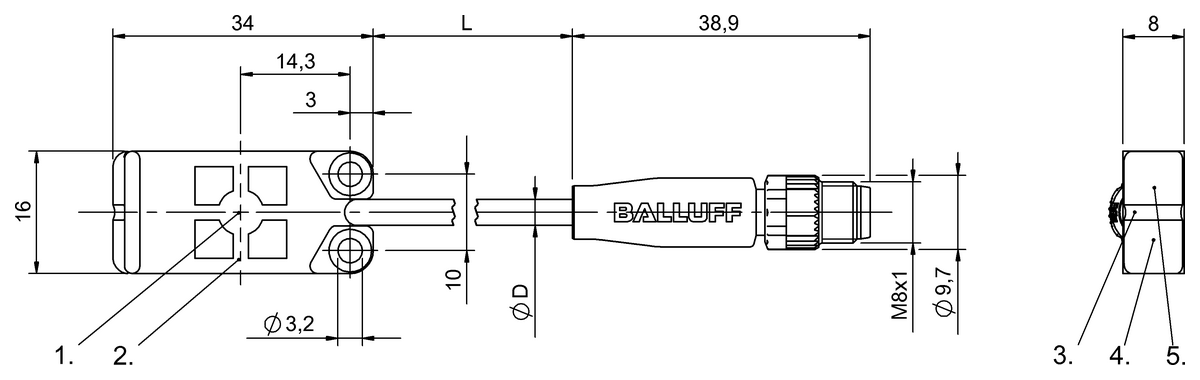

Dimension
34 x 16 x 8 mm
Series
R08
Installation
for flush mounting
Connection
Cable with connector, 4-pin, 0.30 m, PUR
Switching output
PNP normally closed (NC)
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Alternative
|
|
|
|
|
|
|
BCS R08RRE-POM80C-EP00,3-GS75
632.10 CNY
List price
|
BCS R08RRE-POM80C-EP02
657.45 CNY
List price
|
|
| Dimension | 34 x 16 x 8 mm | 34 x 16 x 8 mm |
|---|---|---|
| Series | R08 | R08 |
| Installation | for flush mounting | for flush mounting |
| Connection | Cable with connector, 4-pin, 0.30 m, PUR | Cable, 2.00 m, PUR |
| Switching output | PNP normally closed (NC) | PNP normally closed (NC) |
| Switching frequency | 50 Hz | 50 Hz |
| Range | 1...8 mm | 1...8 mm |
| Sensitivity | Switching distance teachable | Switching distance teachable |
| Housing material | PP | PP |
| Material sensing surface | PP | PP |
| Ambient temperature | -25...70 °C | -25...70 °C |
| Operating voltage Ub | 12...30 VDC | 12...30 VDC |
| Approval/Conformity |
cULus CE UKCA WEEE |
cULus CE UKCA WEEE |
| IP rating | IP67 | IP67 |
