BCS012N

Name: BCS012N
Brand: Balluff
SKU: BCS012N
Price: 621.23 CNY
Availability: OutOfStock

BCS R08RRE-PIM80C-EP00,3-GS04

Cubic version with teachable switching distance

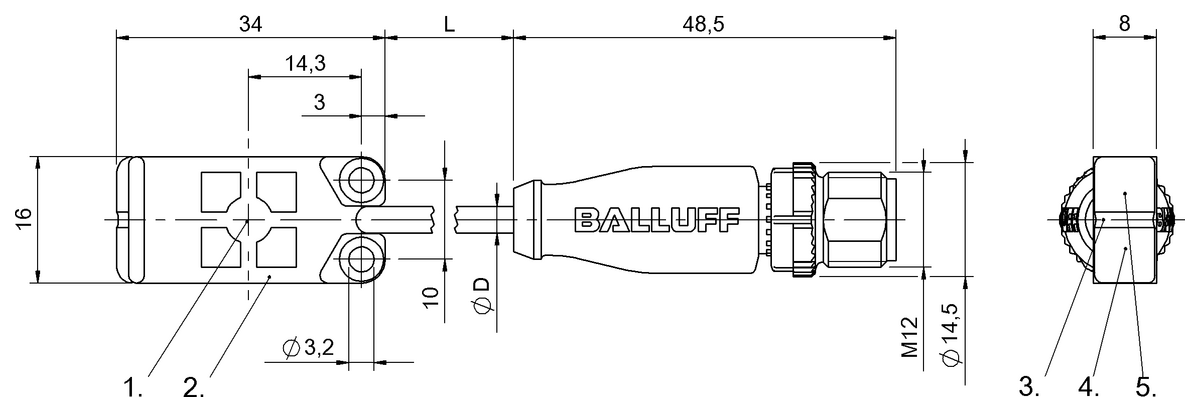

Dimension

34 x 16 x 8 mm

Series

R08

Installation

for flush mounting

Connection

Cable with connector, M12x1-Male, 4-pin, 0.30 m, PUR

Switching output

PNP normally open (NO)

Recommended successor products

Estimated vailability

How does the alternative product differ from the discontinued one?

Do you have any questions about the product? Get in touch with us.

This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

		Recommended alternative

	BCS012N	BCS01CP
	BCS R08RRE-PIM80C-EP00,3-GS04	BCS R08RRE-PIC12C-BP00,3-GS04
	621.23 CNY	615.83 CNY

Dimension	34 x 16 x 8 mm	34 x 16 x 8 mm
Series	R08	R08
Installation	for flush mounting	for flush mounting
Connection	Cable with connector, M12x1-Male, 4-pin, 0.30 m, PUR	Cable with connector, 0.3 m, PUR
Switching output	PNP normally open (NO)	Push-Pull/IO-Link NO(PNP)/NC(NPN) Programmable
Switching frequency	50 Hz	50 Hz
Interface	IO-Link 1.1	IO-Link-Device 1.1.3
Range	1...8 mm	0.5...12 mm
Sensitivity	Switching distance adjustable	Switching distance teachable
Housing material	PP	-
Material sensing surface	PP	PP
Ambient temperature	-25...70 °C	-25...80 °C
Operating voltage Ub	18...30 VDC	18...30 VDC
Approval/Conformity	cULus CE UKCA WEEE	CE cULus WEEE
IP rating	IP67	IP65
