Alternative products
|
|
Alternative
|
Further alternative
|
|
|
|
|
|
BCS00PUBCS M12BBI1-PSC40D-EP02621.23 CNY |
BCS00TLBCS M12BBI1-PSC40D-EP00,35-S04G642.15 CNY |
BCS00PJBCS M12BBG2-PSC40D-S04K612.23 CNY |
|

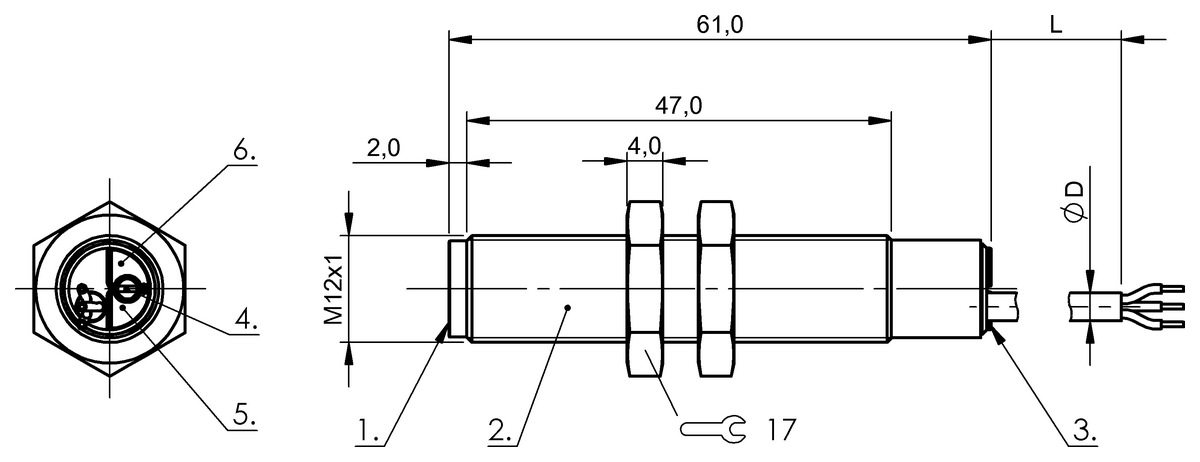

| Dimension | Ø 12 x 61 mm | Ø 12 x 61 mm | Ø 12 x 75 mm |
|---|---|---|---|
| Series | M12 | M12 | M12 |
| Thread (A) | M12x1 | M12x1 | M12x1 |
| Installation | for flush mounting | for flush mounting | for flush mounting |
| Connection | Cable, 2.00 m, PUR | Cable with connector, M12x1-Male, 3-pin, 0.35 m, PUR | Connector, M12x1-Male, 4-pin |
| Switching output | PNP normally open (NO) | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 100 Hz | 100 Hz | 100 Hz |
| Range | 1...4 mm | 1...4 mm | 1...4 mm |
| Sensitivity | Switching distance adjustable | Switching distance adjustable | Switching distance adjustable |
| Housing material | PBT | PBT | PBT |
| Material sensing surface | PBT | PBT | PBT |
| Ambient temperature | -25...85 °C | -25...85 °C | -25...85 °C |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
| IP rating | IP67 | IP67 | IP67 |
Only CAD model download is supported
