BCS002L

Name: BCS002L
Brand: Balluff
SKU: BCS002L
Availability: OutOfStock

BCS M08T4E1-NOM30G-EP02

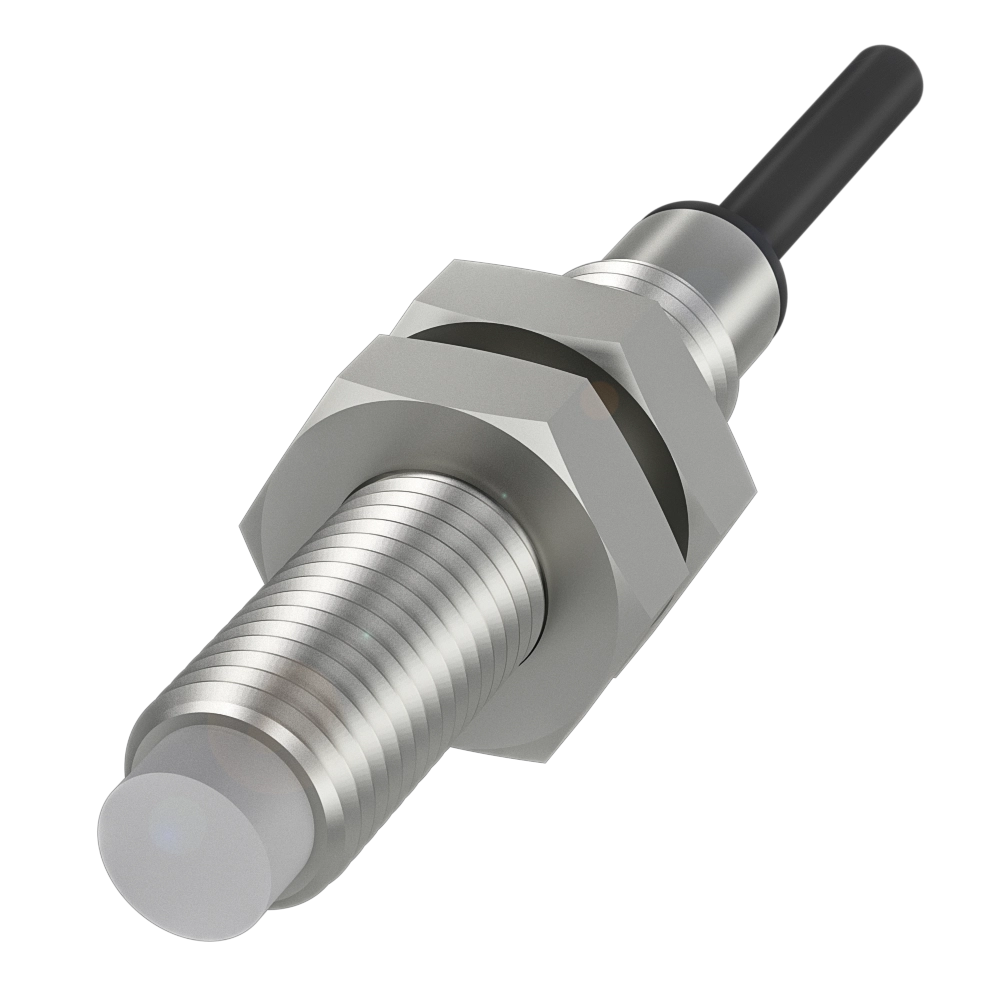

Capacitive proximity switches for object detection

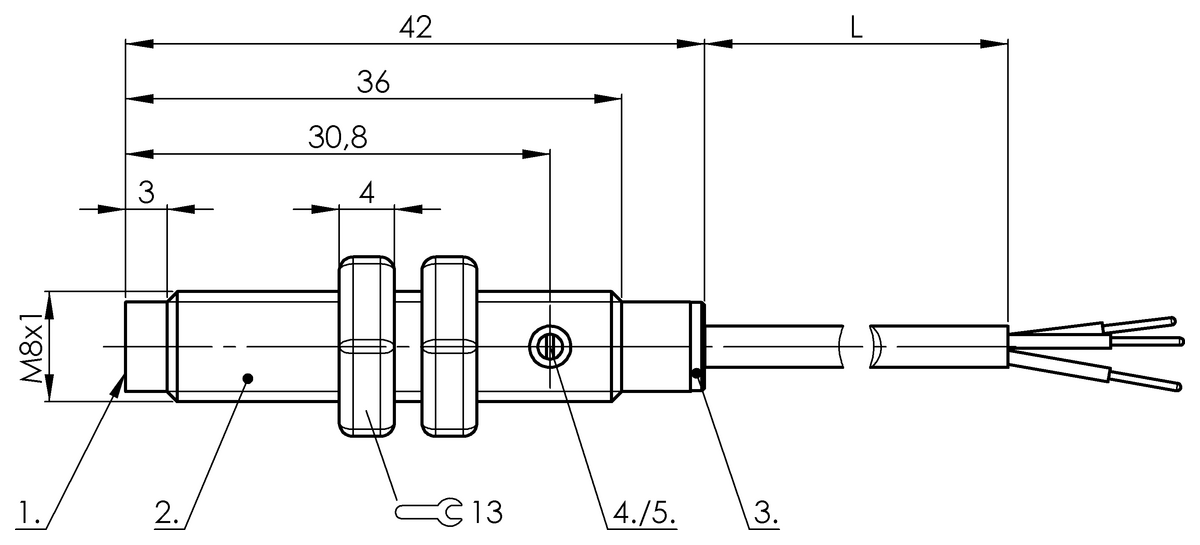

Dimension

Ø 8 x 42 mm

Series

M08

Thread (A)

M8x1

Installation

non-flush

Connection

Cable, 2.00 m, PUR

Recommended successor products

Estimated availability

How does the alternative product differ from the discontinued one?

Do you have any questions about the product? Get in touch with us.

This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

	Discontinued	Discontinued Recommended alternative

	BCS002L	BCS002H
	BCS M08T4E1-NOM30G-EP02	BCS M08T4E1-PSM30G-EP02
	-	1,468.48 CNY

Dimension	Ø 8 x 42 mm	Ø 8 x 42 mm
Series	M08	M08
Thread (A)	M8x1	-
Installation	non-flush	non-flush
Connection	Cable, 2.00 m, PUR	Cable, 2.00 m, PUR
Switching output	NPN normally closed (NC)	PNP normally open (NO)
Switching frequency	100 Hz	100 Hz
Range	0.1...3 mm	-
Sensitivity	Switching distance adjustable	Switching distance adjustable
Housing material	1.4301 stainless steel	1.4301 stainless steel
Material sensing surface	PTFE	PTFE
Ambient temperature	-10...70 °C	-10...70 °C
Operating voltage Ub	11...30 VDC	11...30 VDC
Approval/Conformity	CE cULus EAC WEEE	CE UKCA cULus WEEE
IP rating	IP65	IP65
