Similar Illustration

BCS001C

Name: BCS001C
Brand: Balluff
SKU: BCS001C
Price: 1033.35 CNY
Availability: InStock

BCS D18T404-XXS50C-EP02-GZ01-002

Easy-to-mount disk design for external signal amplifiers

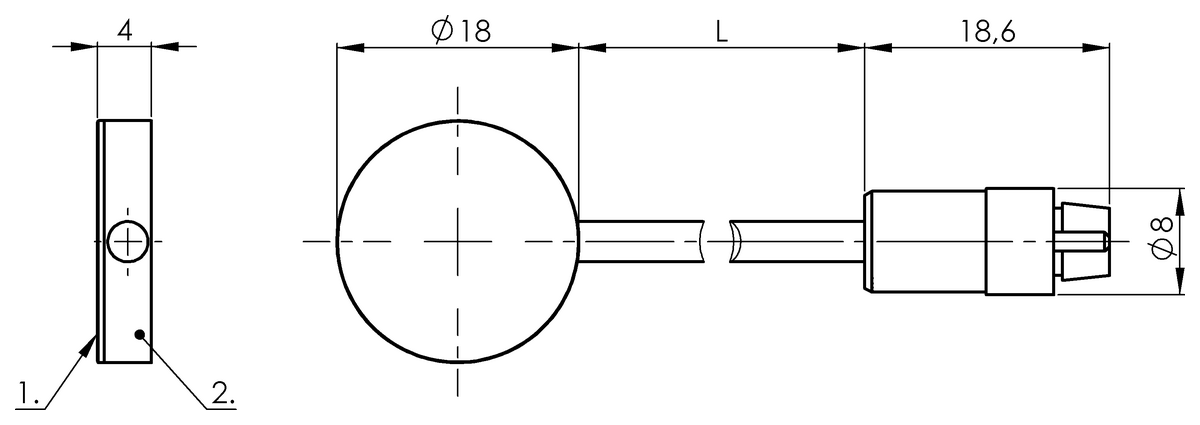

Dimension

Ø 18 x 4 mm

Series

D18

Installation

for flush mounting

Connection

Cable with connector, Special connector-Special connector, 2.00 m, PUR

Interface

Special interface

Do you have any questions about the product?

	Available	Alternative	Further alternative

	BCS001C BCS D18T404-XXS50C-EP02-GZ01-002 1,033.35 CNY	BCS001E BCS D18T407-XXS50C-EP02-GZ01-002 1,033.35 CNY	BCS001A BCS D18T403-XXS30C-EP02-GZ01-002 1,033.35 CNY
Dimension	Ø 18 x 4 mm	Ø 18 x 10 mm	Ø 18 x 3 mm
Series	D18	D18	D18
Installation	for flush mounting	for flush mounting	for flush mounting
Connection	Cable with connector, Special connector-Special connector, 2.00 m, PUR	Cable with connector, Special connector-Special connector, 2.00 m, PUR	Cable with connector, Special connector-Special connector, 2.00 m, PVC
Interface	Special interface	Special interface	Special interface
Range	1...5 mm	1...5 mm	0.1...3 mm
Sensitivity	adjustable on base unit	adjustable on base unit	adjustable on base unit
Housing material	1.4301 stainless steel	1.4301 stainless steel	1.4301 stainless steel
Material sensing surface	PTFE	PTFE	PTFE
Ambient temperature	-30...80 °C	-30...80 °C	-30...70 °C
Approval/Conformity	CE UKCA cULus WEEE	CE UKCA cULus WEEE	CE UKCA cULus WEEE
IP rating	IP66	IP66	IP66
