Similar Illustration

BCC0LM1

Name: BCC0LM1
Brand: Balluff
SKU: BCC0LM1
Price: 319.12 CNY
Availability: InStock

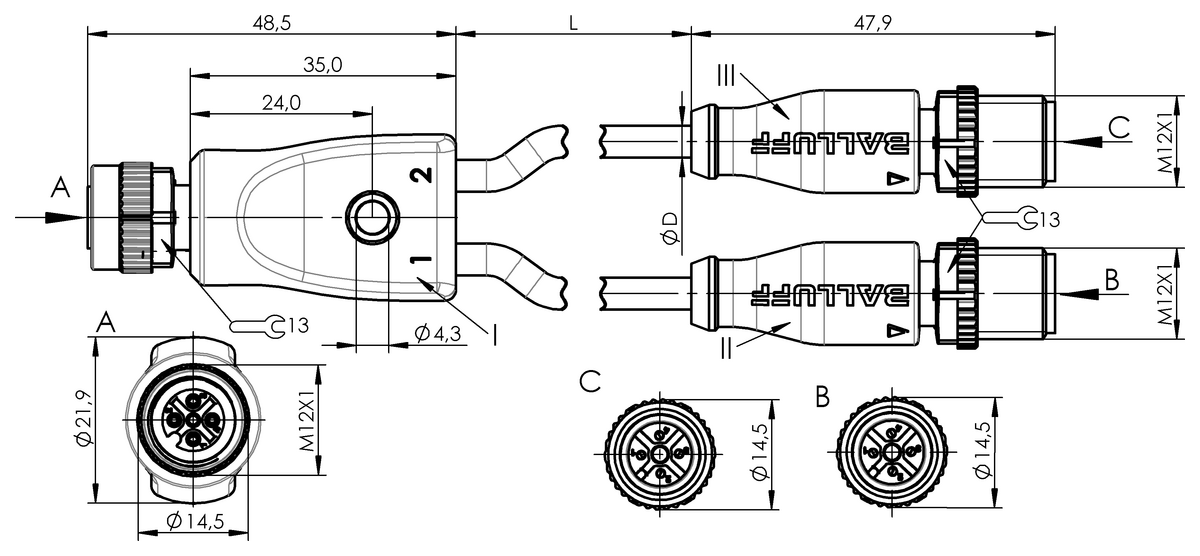

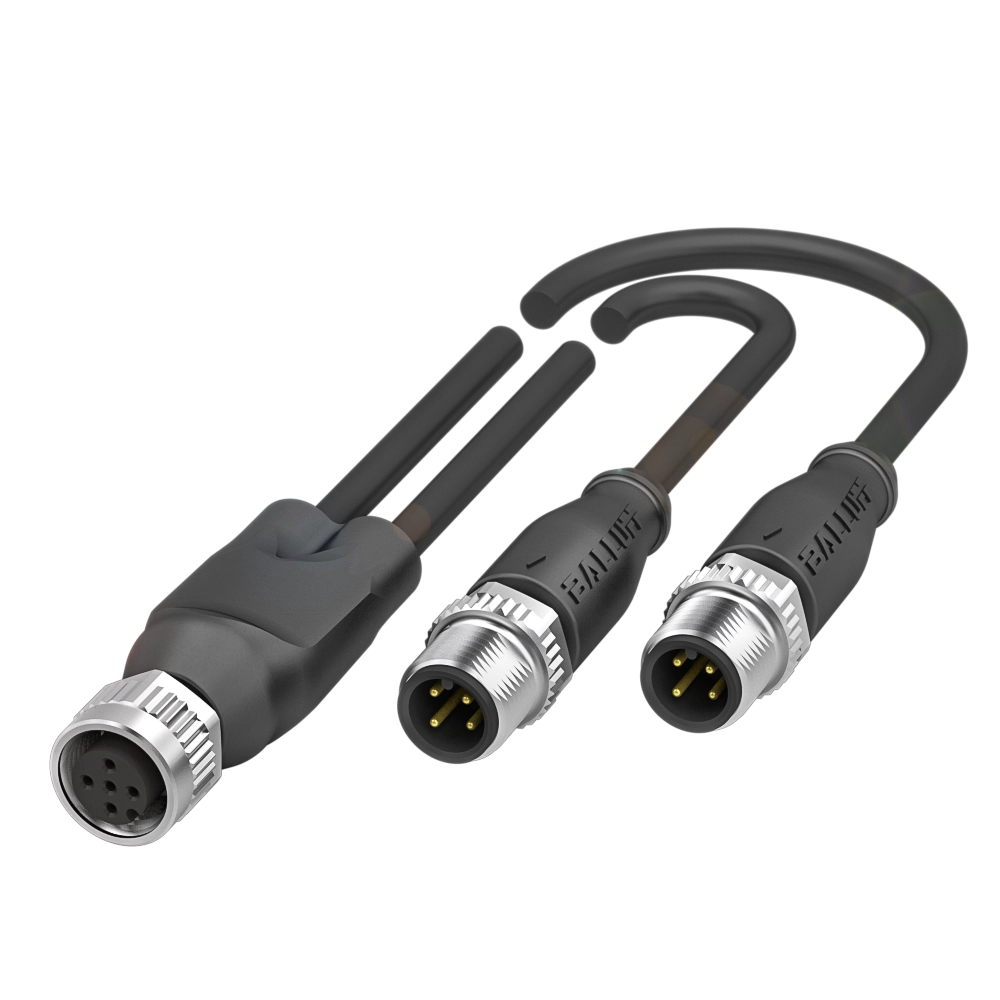

BCC M415-M414-M414-U2105-003

Y-splitters

Connection 1

M12x1-Female, straight, 5-pin, A-coded

Connection 2

M12x1-Male, straight, 4-pin, A-coded

Connection 3

M12x1-Male, straight, 4-pin, A-coded

Operating voltage Ub

250 VDC / 250 VAC

Cable

PUR black, 0.3 m, drag chain compatible

Do you have any questions about the product? Get in touch with us.

This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

		Alternative	Further alternative

	BCC0LM1	BCC0FCF	BCC0HC5
	BCC M415-M414-M414-U2105-003	BCC M415-M413-M413-U2060-003	BCC M415-M413-M414-U2073-003
	319.12 CNY	361.68 CNY	319.12 CNY

Connection 1	M12x1-Female, straight, 5-pin, A-coded	M12x1-Female, straight, 5-pin, A-coded	M12x1-Female, straight, 5-pin, A-coded
Connection 2	M12x1-Male, straight, 4-pin, A-coded	M12x1-Male, straight, 3-pin, A-coded	M12x1-Male, straight, 3-pin, A-coded
Connection 3	M12x1-Male, straight, 4-pin, A-coded	M12x1-Male, straight, 3-pin, A-coded	M12x1-Male, straight, 4-pin, A-coded
Operating voltage Ub	250 VDC / 250 VAC	30 VDC / 30 VAC	60 VDC / 60 VAC
Cable	PUR black, 0.3 m, drag chain compatible	PUR black, 0.3 m, drag chain compatible	PUR black, 0.3 m, drag chain compatible
Rated current (40 °C)	4.0 A	4.0 A	4.0 A
Cable temperature, fixed routing	-50...90 °C	-50...90 °C	-50...90 °C
Cable temperature, flexible routing	-25...90 °C	-25...90 °C	-25...90 °C
IP rating	IP67, IP68, IP69K/IP67, IP68, IP69K	IP67, IP68, IP69K/IP67, IP68, IP69K	IP67, IP68, IP69K/IP67, IP68, IP69K
Approval/Conformity	CE WEEE cULus	CE WEEE cULus	CE WEEE cULus
