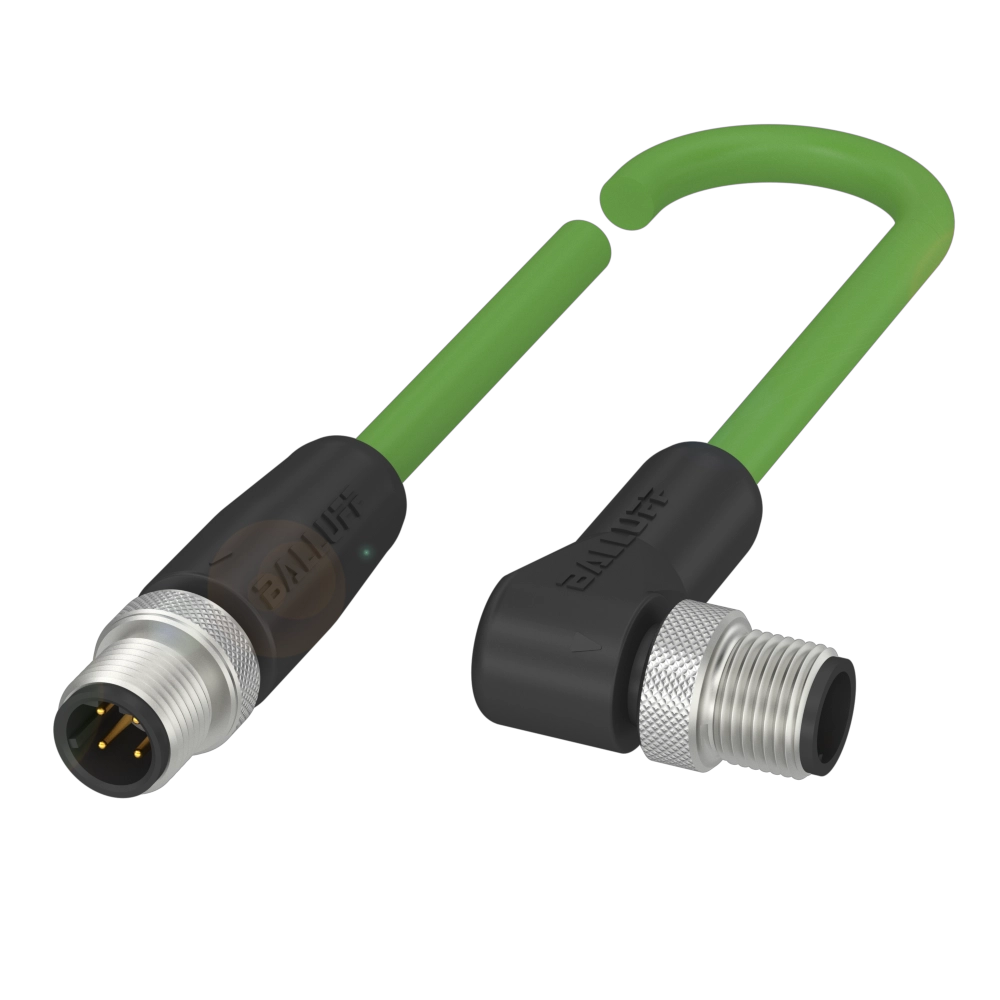

Similar Illustration

BCC0JNR

Name: BCC0JNR
Brand: Balluff
SKU: BCC0JNR
Price: 497.4 CNY
Availability: InStock

BCC M414-M424-6D-331-PS54N2-050

Ethernet/Profinet cables

Connection 1

M12x1-Male, straight, 4-pin, D-coded

Connection 2

M12x1-Male, angled, 4-pin, D-coded

Interface

Profinet

Cable

PUR Shielded Green, 5 m, drag chain compatible

Cable, note

Profinet Type C, CAT 5E by IEC 61156-6

Do you have any questions about the product? Get in touch with us.

This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

		Alternative	Further alternative

	BCC0JNR	BCC0JFJ	BCC0JH0
	BCC M414-M424-6D-331-PS54N2-050	BCC M414-M414-6D-331-PS54N2-050	BCC M424-M424-6D-331-PS54N2-050
	497.40 CNY	497.40 CNY	497.40 CNY

Connection 1	M12x1-Male, straight, 4-pin, D-coded	M12x1-Male, straight, 4-pin, D-coded	M12x1-Male, angled, 4-pin, D-coded
Connection 2	M12x1-Male, angled, 4-pin, D-coded	M12x1-Male, straight, 4-pin, D-coded	M12x1-Male, angled, 4-pin, D-coded
Interface	Profinet	Profinet	Profinet
Cable	PUR Shielded Green, 5 m, drag chain compatible	PUR Shielded Green, 5 m, drag chain compatible	PUR Shielded Green, 5 m, drag chain compatible
Cable, note	Profinet Type C, CAT 5E by IEC 61156-6	Profinet Type C, CAT 5E by IEC 61156-6	Profinet Type C, CAT 5E by IEC 61156-6
Number of conductors	4	4	4
Cable temperature, fixed routing	-40...80 °C	-40...80 °C	-40...80 °C
Cable temperature, flexible routing	-20...60 °C	-20...60 °C	-20...60 °C
Operating voltage Ub	60 VDC	60 VDC	60 VDC
Rated current (40 °C)	1.5 A	1.5 A	1.5 A
IP rating	IP67/IP67	IP67/IP67	IP67/IP67
Approval/Conformity	CE cULus UKCA WEEE	CE cULus UKCA WEEE	CE cULus UKCA WEEE
