Similar Illustration

BCC0HW1

Name: BCC0HW1
Brand: Balluff
SKU: BCC0HW1
Price: 294.3 CNY
Availability: OutOfStock

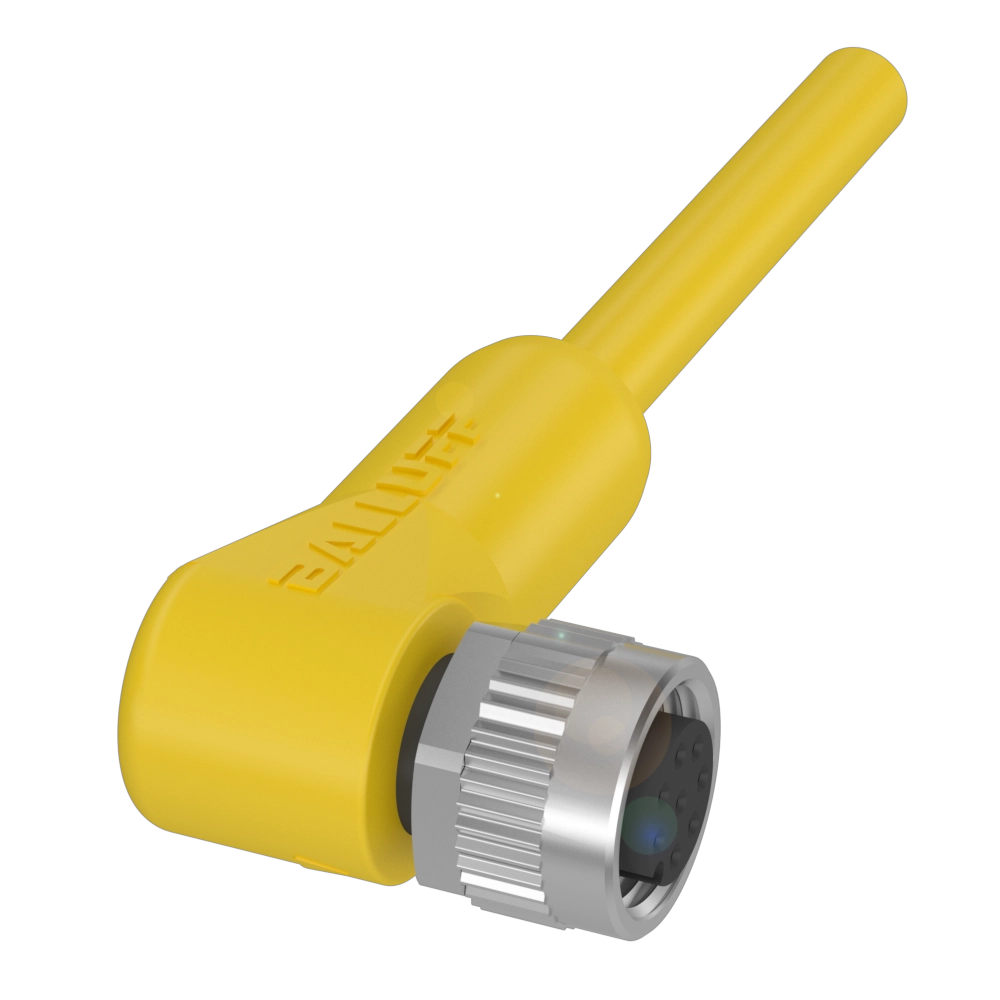

BCC M428-0000-1A-069-PX4825-050-C033

Safety cables (AIDA-Standard)

Connection

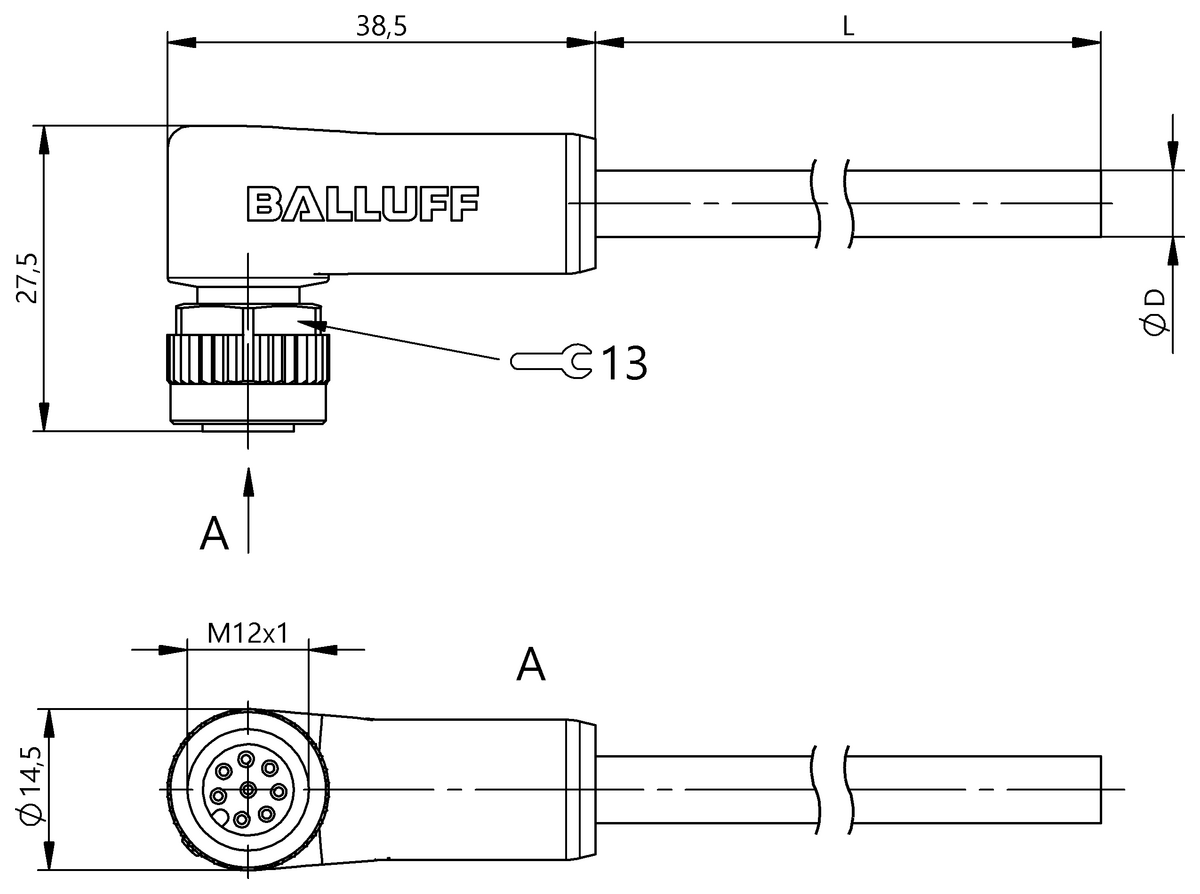

M12x1-Female, angled, 8-pin, A-coded

Cable

PUR Yellow, 5 m, drag chain compatible

Number of conductors

Conductor cross-section

0.25 mm²

Cable temperature, fixed routing

-50...80 °C

Do you have any questions about the product? Get in touch with us.

This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

		Alternative	Further alternative

	BCC0HW1	BCC0H8N	BCC06K5
	BCC M428-0000-1A-069-PX4825-050-C033	BCC M418-0000-1A-069-PX4825-050-C033	BCC M428-0000-1A-044-PX0825-050
	294.30 CNY	294.30 CNY	284.63 CNY

Connection	M12x1-Female, angled, 8-pin, A-coded	M12x1-Female, straight, 8-pin, A-coded	M12x1-Female, angled, 8-pin, A-coded
Cable	PUR Yellow, 5 m, drag chain compatible	PUR Yellow, 5 m, drag chain compatible	PUR black, 5 m, drag chain compatible
Number of conductors	8	8	8
Conductor cross-section	0.25 mm²	0.25 mm²	0.25 mm²
Cable temperature, fixed routing	-50...80 °C	-50...80 °C	-50...80 °C
Cable temperature, flexible routing	-25...80 °C	-25...80 °C	-25...80 °C
Operating voltage Ub	30 VDC / 30 VAC	30 VDC / 30 VAC	30 VDC / 30 VAC
Rated current (40 °C)	2.0 A	2.0 A	2.0 A
IP rating	IP67, IP68, IP69K	IP67, IP68, IP69K	IP67, IP68, IP69K
Approval/Conformity	CE cULus WEEE	CE cULus WEEE	CE cULus WEEE
